22475 - Toro TX Platform for TX Dingo Compact Utility Loader (SN: 404800000 - 999999999) Platform Assembly Parts Diagram

TX Platform for TX Dingo Compact Utility Loader

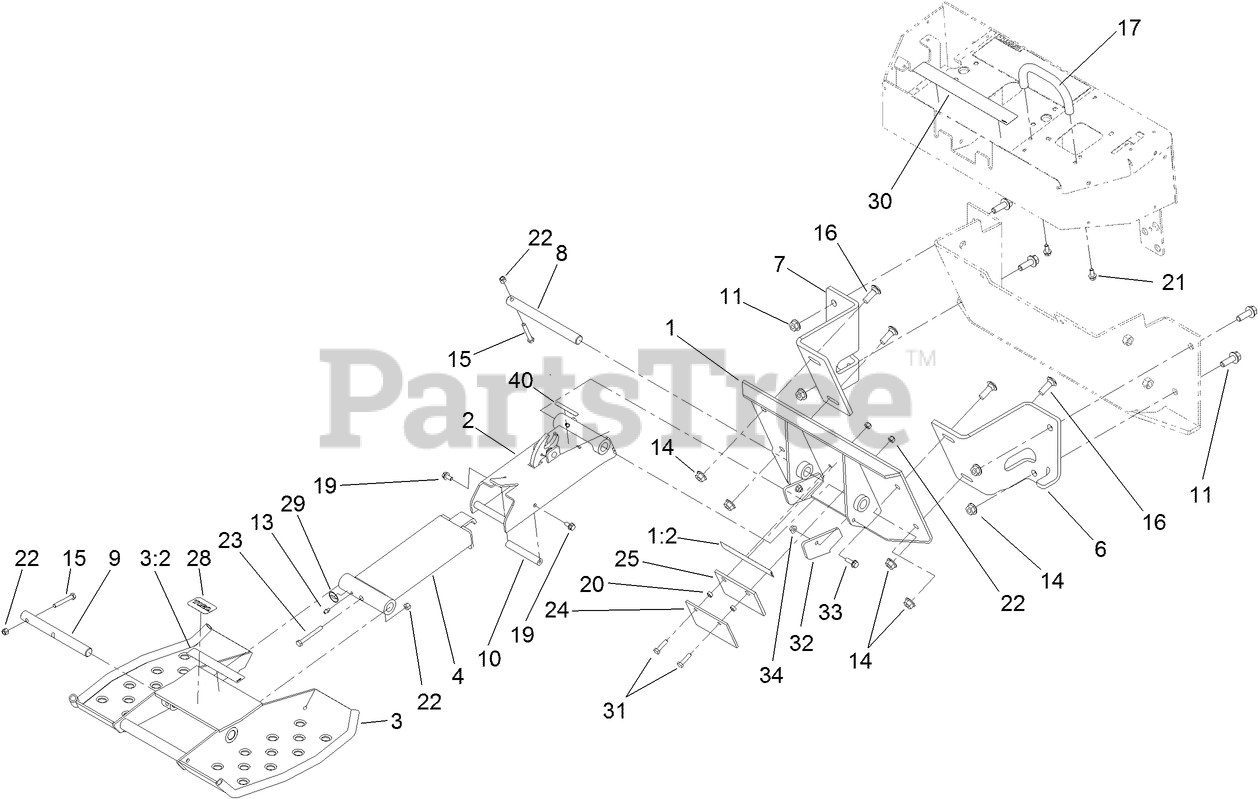

Platform Assembly Parts Diagram

  • Title
1

Toro 117-3403

SULKY MOUNTING PLATE ASM

$575.99

$

Usually ships in 3-6 days

0

1:2

Toro 94-3353

DECAL-POINT, PINCH

$6.49

$

Usually ships in 3-6 days

0

2

Toro 115-4582

LINKAGE ASM

$398.99

$

Usually ships in 3-6 days

0

3

Toro 112-2746

PLATFORM ASM

$600.99

$

Usually ships in 3-6 days

0

3:2

Toro 94-3353

DECAL-POINT, PINCH

$6.49

$

Usually ships in 3-6 days

0

4

Toro 110-0129-03

SLIDE ASM, WELDED

$240.99

$

Usually ships in 3-6 days

0

6

Toro 110-0104-03

PLATE-MTG, TX PLATFORM, RH

$129.99

$

Usually ships in 3-6 days

0

7

Toro 110-0105-03

PLATE-MTG, TX PLATFORM-LH

$125.99

$

Usually ships in 3-6 days

0

8

Toro 110-0106

PIN-UPPER

$57.99

$

Usually ships in 3-6 days

0

9

Toro 110-0190

PIN-LOWER V

$64.99

$

Usually ships in 3-6 days

0

10

Toro 110-0192

ROD-CLAMP

$43.99

$

In Stock, only 1 left!

0

11

Toro 100-6116

SCREW-HHF

$9.49

$

In Stock, only 1 left!

0

13

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

14

Toro 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

15

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

16

Toro 3233-2

SCREW-CARR

$7.99

$

Usually ships in 3-6 days

0

17

Toro 112-2620

BAR-REFERENCE

$64.99

$

Usually ships in 3-6 days

0

19

Toro 3234-14

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0

20

Toro 65-9330

SPACER

$4.49

$

Usually ships in 3-6 days

0

21

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

24

Toro 112-2696-03

PLATE-PUSH

$19.99

$

Usually ships in 3-6 days

0

25

Toro 112-2698

PAD-RUBBER

$11.99

$

Usually ships in 3-6 days

0

28

Toro 98-3206

DECAL

$2.49

$

Usually ships in 3-6 days

0

29

Toro 58-6520

DECAL-GREASE

$3.49

$

In Stock, only 3 left!

0

30

Toro 138-4344

DECAL-WARNING/INSTRUCTIONAL

$9.99

$

Usually ships in 3-6 days

0

31

Toro 322-47

SCREW-HH
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

32

Toro 114-1252

PLATE-BUMPER

$20.99

$

Usually ships in 3-6 days

0

33

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

34

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

40

Toro 133-8061

DECAL-WARNING

$1.49

$

Usually ships in 3-6 days

0
