22472 - Toro Trench Filler for Dingo Compact Utility Loader (SN: 260000001 - 260999999) (2006) HYDRAULIC MOTOR ASSEMBLY NO. 108-5595 Parts Diagram

Trench Filler for Dingo Compact Utility Loader

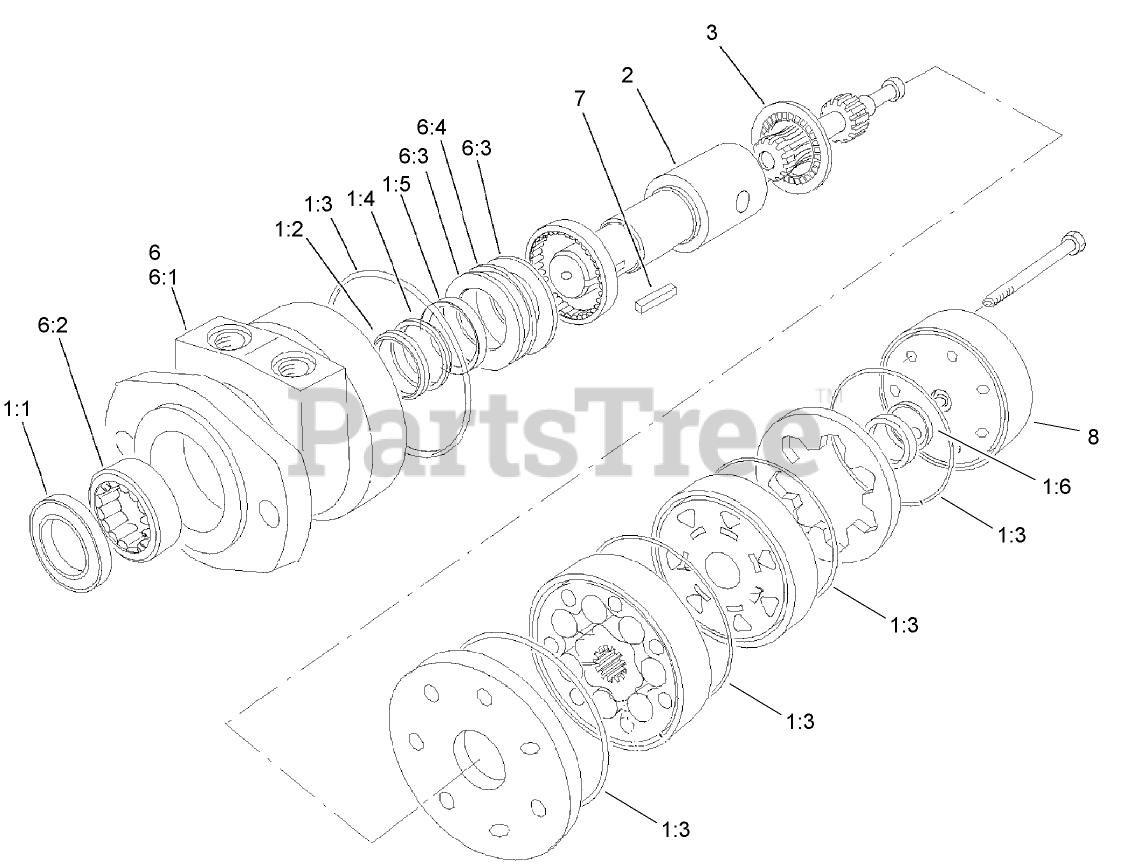

HYDRAULIC MOTOR ASSEMBLY NO. 108-5595 Parts Diagram

  • Title

1:1

SEAL-DIRT AND WATER (Not serviced separately)

$

$

Not available

1:2

Washer-Backup (Not serviced separately)

$

$

Not available

1:3

Seal-Ring (Not serviced separately)

$

$

Not available

1:4

Washer-Backup (Not serviced separately)

$

$

Not available

1:5

Seal-Inner (Not serviced separately)

$

$

Not available

1:6

Seal-Commutator (Not serviced separately)

$

$

Not available

1

Toro 94-8178

SEAL KIT
(Superseded to 100-6131)

$108.99

$

Usually ships in 3-6 days

0

2

Toro 95-6137

COUPLING SHAFT

$1111.99

$

Usually ships in 3-6 days

0

3

Toro 76-0850

BEARING-THRUST

$49.99

$

Usually ships in 3-6 days

0

6

Toro 95-6136

HOUSING ASM

$1683.99

$

Usually ships in 3-6 days

0

6:1

Housing (Not serviced separately)

$

$

Not available

6:2

Bearing (Not serviced separately)

$

$

Not available

6:3

Washer-Thrust (Not serviced separately)

$

$

Not available

6:4

Bearing-Thrust (Not serviced separately)

$

$

Not available

7

Toro 11-5790

KEY-SQUARE

$22.99

$

Usually ships in 3-6 days

0

8

Toro 76-0940

END COVER ASM

$667.99

$

Usually ships in 3-6 days

0
