22465 - Toro Trencher for Dingo TX 413 Compact Utility Loader (SN: 260000001 - 260999999) (2006) TRENCHER HEAD ASSEMBLY Parts Diagram

Trencher for Dingo TX 413 Compact Utility Loader

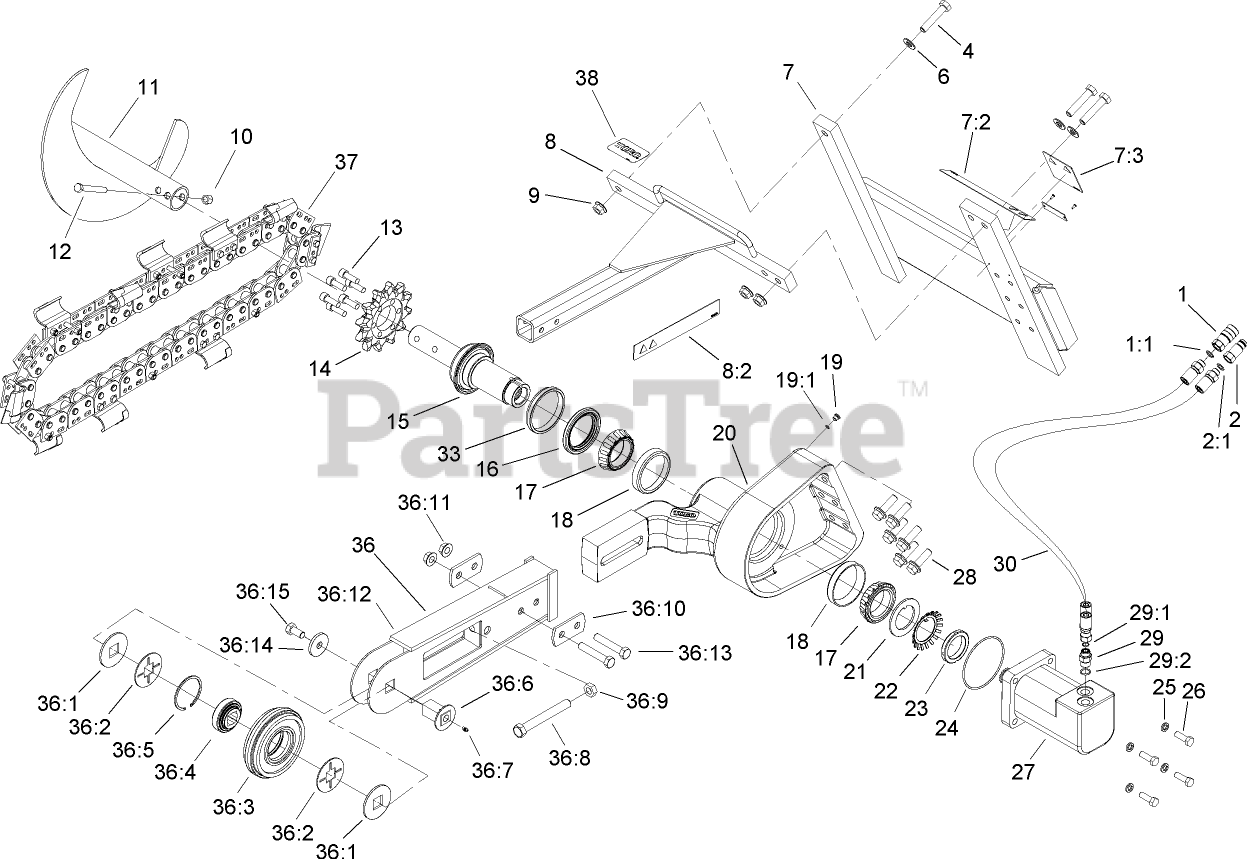

TRENCHER HEAD ASSEMBLY Parts Diagram

  • Title

1

Toro 104-6115

COUPLER-FEMALE

$285.99

$

Usually ships in 3-6 days

0

1:1

Toro 107-9300

SEAL KIT

$98.99

$

Usually ships in 3-6 days

0

2

Toro 104-6114

NIPPLE-CONNECTOR

$142.99

$

Usually ships in 3-6 days

0

2:1

Toro 107-9301

SEAL KIT

$97.99

$

Usually ships in 3-6 days

0

4

Toro 104-5895

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

6

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

7

Toro 106-7632

MOUNT ASM

$

$

Not available

7:2

Toro 99-9952

DECAL-DANGER

$24.99

$

Usually ships in 3-6 days

0

7:3

Toro 99-9953

DECAL-DANGER

$47.99

$

Usually ships in 3-6 days

0

8

Toro 106-7633

SAFETY BAR ASM

$

$

Not available

8:2

Toro 99-9952

DECAL-DANGER

$24.99

$

Usually ships in 3-6 days

0

9

Toro 32128-50

NUT-FLANGE

$5.49

$

In Stock, only 4 left!

0

10

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 104-5912-03

AUGER ASM

$755.99

$

Usually ships in 3-6 days

0

12

Toro 325-35

SCREW-HH

$10.99

$

Usually ships in 3-6 days

0

13

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 10

0

14

Toro 104-1964

SPROCKET-TRENCHER

$307.99

$

Usually ships in 3-6 days

0

15

Toro 104-1969

SHAFT-TRENCHER

$1797.99

$

Usually ships in 3-6 days

0

16

Toro 104-1967

SEAL-SHAFT

$304.99

$

Usually ships in 3-6 days

0

17

Toro 104-1966

CONE-BEARING

$166.99

$

Usually ships in 3-6 days

0

18

Toro 104-1965

CUP-BEARING

$242.99

$

In Stock, only 2 left!

0

19

Toro 353-990

PLUG ASM

$12.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

20

Toro 104-1931-03

MOUNT-BOOM

$4889.99

$

Usually ships in 3-6 days

0

21

Toro 104-1972

WASHER-TONGUED

$62.99

$

Usually ships in 3-6 days

0

22

Toro 104-5915

WASHER-LOCK, BEARING

$64.99

$

Usually ships in 3-6 days

0

23

Toro 104-1973

NUT-LOCK, BEARING

$83.99

$

Usually ships in 3-6 days

0

24

Toro 104-1920

O-RING

$13.99

$

Usually ships in 3-6 days

0

25

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

26

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

27

Toro 104-5701

MOTOR-HYD, HIGH SPEED

$4744.99

$

Usually ships in 3-6 days

0

28

Toro 104-5870

SCREW

$17.99

$

Usually ships in 3-6 days

0

29

Toro 340-6

FITTING-STRAIGHT

$20.99

$

In Stock, only 2 left!

0

29:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

29:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

30

Toro 106-7702

HOSE ASM

$256.99

$

In Stock, only 1 left!

0

33

Toro 104-5935

SPACER

$242.99

$

Usually ships in 3-6 days

0

36

Toro 104-1948

BOOM ASM

$2633.99

$

Usually ships in 3-6 days

0

36:1

Toro 104-1942

CAP-ROLLER

$59.99

$

In Stock, only 2 left!

0

36:2

Toro 104-1943

SPACER-ROLLER

$76.99

$

Usually ships in 3-6 days

0

36:3

Toro 104-1951

ROLLER-NOSE

$307.99

$

Usually ships in 3-6 days

0

36:4

Toro 104-1995

BEARING

$323.99

$

Usually ships in 3-6 days

0

36:5

Toro 104-1945

RING-RETAINING

$22.99

$

In Stock, only 1 left!

0

36:6

Toro 104-1955

PIN ASM (only on: 22471)
(Superseded to 108-5549)

$108.99

$

In Stock, only 1 left!

0

36:7

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

36:8

Toro 104-1941

BOLT-ADJUSTMENT

$84.99

$

In Stock, only 1 left!

0

36:9

Toro 104-1944

NUT-JAM

$13.99

$

In Stock, only 1 left!

0

36:10

Toro 104-1983-03

PLATE-SUPPORT

$47.99

$

Usually ships in 3-6 days

0

36:11

Toro 32128-50

NUT-FLANGE

$5.49

$

In Stock, only 4 left!

0

36:12

Toro 104-5889-03

BOOM ASM
(Superseded to 115-0784-03)

$1308.99

$

Usually ships in 3-6 days

0

36:13

Toro 327-14

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

36:14

Toro 104-5901

WASHER

$19.99

$

In Stock, only 1 left!

0

36:15

Toro 327-3

SCREW-HH

$2.49

$

In Stock, only 1 left!

0

37

Toro 106-7626

TRENCHER CHAIN ASM

$1364.99

$

Usually ships in 3-6 days

0

38

Toro 99-2385

DECAL

$4.99

$

In Stock, only 2 left!

0
