2246 LS (960430043-00) - Husqvarna 46" Lawn Tractor (2008-01) Steering Assembly Parts Diagram

46" Lawn Tractor

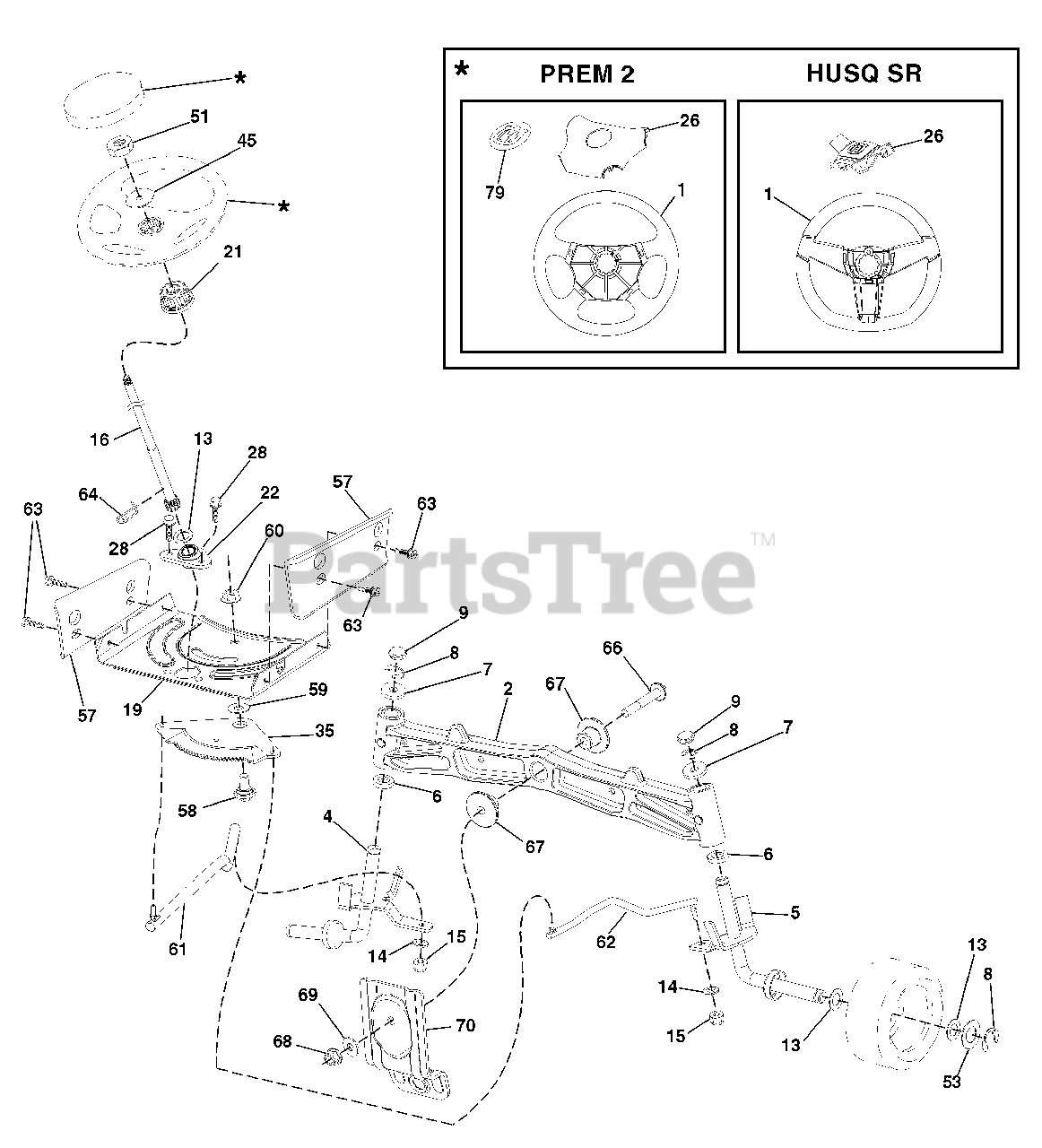

Steering Assembly Parts Diagram

  • Title

1

Husqvarna 532416480

Wheel, Steering
(Superseded to 532439740)

$93.99

$

In Stock, only 1 left!

0

2

Husqvarna 532184706

Axle Asm., Front
(Superseded to 532193542)

$169.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532403087

Spindle Asm., LH
(Superseded to 596873601)

$17.99

$

In Stock, Qty 12

0

5

Husqvarna 532403088

Spindle Asm., RH
(Superseded to 538691201)

$22.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532124931

Bearing, Race Thrust Harden
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

7

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 812000029

Ring, Klip #T5304-75

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532121232

Cap, Spindle

$4.99

$

In Stock, Qty 9

0

13

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 810040600

Washer, Lock Hvy Hlcl Spr 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 873540600

Nut, Crown Lock 3/8-24 unf

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532408219

Shaft Steering
(Superseded to 587738904)

$40.99

$

In Stock, Qty 14

0

19

Husqvarna 532194729

Plate Steering

$18.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532186737

Adapter, Wheel Steering
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

22

Husqvarna 532194845

Bushing, Strg. Blk
(Superseded to 587738901)

$17.99

$

In Stock, only 4 left!

0

26

Husqvarna 532415987

Insert, Wheel Steering
(Superseded to 532439743)

$10.99

$

In Stock, only 1 left!

0

28

Husqvarna 817000612

Screw 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

35

Husqvarna 532194732

Gear, Sector Plate

$31.99

$

In Stock, Qty 20+

0

45

Husqvarna 819183812

Washer 9/16 ID x 2-3/8 OD 12 Ga.

$9.49

$

Usually ships in 3-10 days

0

51

Husqvarna 873940800

Nut Hex Jam Toplock 1/2-20 unf

$7.49

$

In Stock, only 4 left!

0

53

Husqvarna 532188967

Washer Hardened .793 x 1.637 x .060

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 532407465

Bracket Upstop

$6.99

$

In Stock, only 1 left!

0

58

Husqvarna 532194747

Bolt Shoulder Sector Pivot CFM

$9.49

$

In Stock, only 3 left!

0

59

Husqvarna 532194748

Washer Thrust Sector Steering

$7.49

$

In Stock, only 3 left!

0

60

Husqvarna 873971000

Nut Flange Lock 5/8-11
(Superseded to 583612801)

$7.49

$

In Stock, only 1 left!

0

61

Husqvarna 532194740

Draglink LH
(Superseded to 597047801)

$12.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532194741

Draglink, RH

$13.99

$

In Stock, Qty 20+

0

63

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

64

Husqvarna 532199849

Retainer Clip Spring Steering

$6.49

$

In Stock, Qty 8

0

66

Husqvarna 871020748

Bolt Hex Fghd 7/16-14 x 3 Serr

$6.49

$

In Stock, only 4 left!

0

67

Husqvarna 532194737

Bushing PM Front Axle

$

$

Not available

68

Husqvarna 873900700

Nut Lock Flange 7/16-14 Gr. 5

$7.49

$

In Stock, Qty 14

0

69

Husqvarna 532199162

Washer 1.5 x .505 x .118

$6.49

$

In Stock, only 1 left!

0

70

Husqvarna 532196197

Bracket Deck Susp. Front
(Superseded to 585338801)

$9.99

$

Usually ships in 3-10 days

0
