22459 - Toro Trencher Head for Dingo Compact Utility Loader (SN: 230000001 - 230999999) (2003) TRENCHER HEAD ASSEMBLY Parts Diagram

Trencher Head for Dingo Compact Utility Loader

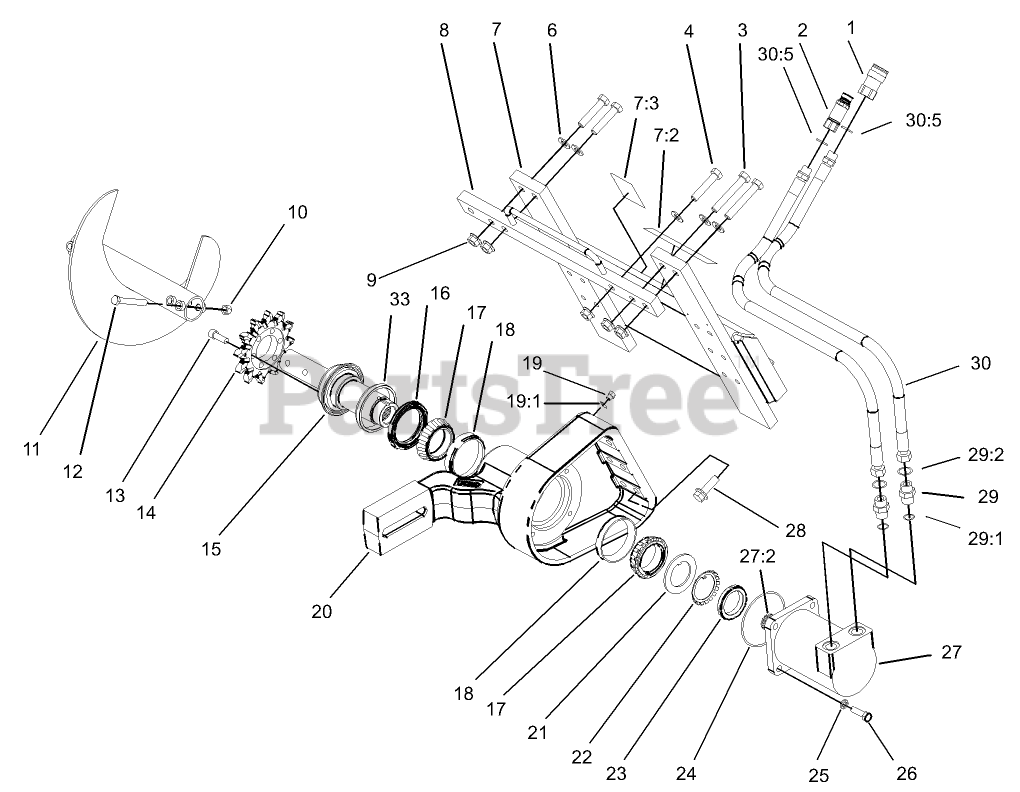

TRENCHER HEAD ASSEMBLY Parts Diagram

  • Title
1

Toro 104-6134

COUPLER-FACE, FLUSH

$267.99

$

Usually ships in 3-6 days

0

1:1

Toro 105-8396

SEAL KIT
(Superseded to 106-7692)

Note: Not illustrated

$240.99

$

Usually ships in 3-6 days

0

2

Toro 100-4701

NIPPLE-CONNECT, PRESSURE

$282.99

$

Usually ships in 3-6 days

0

2:1

Toro 100-6120

SEAL KIT

Note: Not illustrated

$107.99

$

Usually ships in 3-6 days

0

3

Toro 104-5877

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

4

Toro 104-5895

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

6

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

7

Toro 104-1938

MOUNT ASM

$1984.99

$

Usually ships in 3-6 days

0

7:2

Toro 99-9952

DECAL-DANGER

$24.99

$

Usually ships in 3-6 days

0

7:3

Toro 99-9953

DECAL-DANGER

$47.99

$

Usually ships in 3-6 days

0

8

Toro 104-5894-03

CROSSBAR ASM

$476.99

$

Usually ships in 3-6 days

0

9

Toro 32128-50

NUT-FLANGE

$5.49

$

In Stock, only 4 left!

0

10

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 104-5912-03

AUGER ASM

$755.99

$

Usually ships in 3-6 days

0

12

Toro 325-35

SCREW-HH

$10.99

$

Usually ships in 3-6 days

0

13

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 10

0

14

Toro 104-1964

SPROCKET-TRENCHER

$307.99

$

Usually ships in 3-6 days

0

15

Toro 104-1969

SHAFT-TRENCHER

$1797.99

$

Usually ships in 3-6 days

0

16

Toro 104-1967

SEAL-SHAFT

$304.99

$

Usually ships in 3-6 days

0

17

Toro 104-1966

CONE-BEARING

$166.99

$

Usually ships in 3-6 days

0

18

Toro 104-1965

CUP-BEARING

$242.99

$

Usually ships in 3-6 days

0

19

Toro 353-990

PLUG ASM

$12.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

20

Toro 104-1931-03

MOUNT-BOOM

$4889.99

$

Usually ships in 3-6 days

0

21

Toro 104-1972

WASHER-TONGUED

$62.99

$

Usually ships in 3-6 days

0

22

Toro 104-5915

WASHER-LOCK, BEARING

$64.99

$

Usually ships in 3-6 days

0

23

Toro 104-1973

NUT-LOCK, BEARING

$83.99

$

Usually ships in 3-6 days

0

24

Toro 104-1920

O-RING

$13.99

$

Usually ships in 3-6 days

0

25

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

26

Toro 325-7

SCREW-HH

$1.99

$

In Stock, Qty 5

0

27

Toro 104-1946

MOTOR-HYD

$

$

Not available

28

$17.99

$

Usually ships in 3-6 days

0

29

Toro 340-8

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

29:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 8

0

29:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

30

Toro 104-1932

HOSE ASM

$399.99

$

Usually ships in 3-6 days

0

30:5

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

33

Toro 104-5935

SPACER

$242.99

$

Usually ships in 3-6 days

0
