22447 - Toro Trencher Head for Dingo Compact Utility Loader (SN: 220000001 - 220999999) (2002) TRENCHER ASSEMBLY Parts Diagram

Trencher Head for Dingo Compact Utility Loader

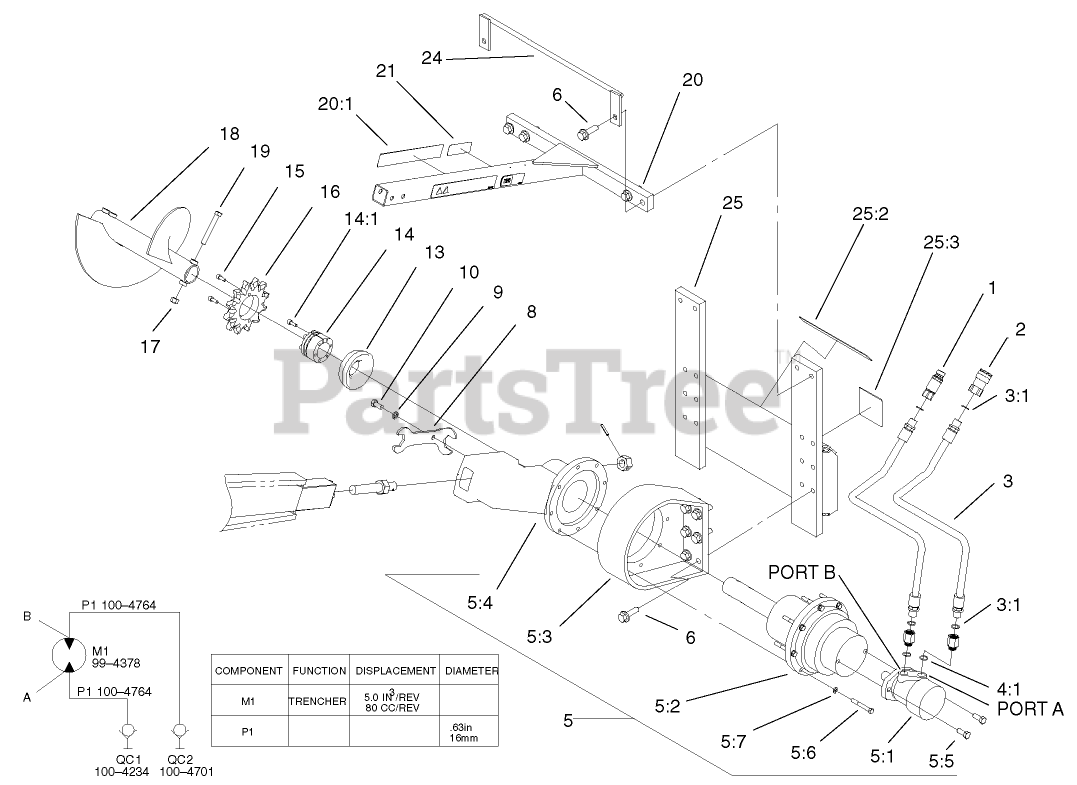

TRENCHER ASSEMBLY Parts Diagram

  • Title

1

Toro 100-4701

NIPPLE-CONNECT, PRESSURE

$282.99

$

Usually ships in 3-6 days

0

1:1

Toro 100-6120

SEAL KIT

Note: Not illustrated

$107.99

$

Usually ships in 3-6 days

0

2

Toro 100-4234

COUPLER-FACE, FLUSH
(Superseded to 104-6134)

$267.99

$

Usually ships in 3-6 days

0

2:1

Toro 100-6119

KIT-SEAL

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

3

Toro 100-4764

HOSE-HYDRAULIC

$

$

Not available

3:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

4:1

Toro 99-4368

O-RING

$

$

Not available

4

Toro 100-4763

ADAPTER-CONVERSION

$

$

Not available

5

Trencher Drive ASM

Note: Not serviced

$

$

Not available

5:1

Toro 104-5854

MOTOR-HYD, 80CC (1 INCH SHAFT)

$

$

Not available

5:1

Toro 99-4378

MOTOR-HYD(OPTIONAL), 100CC-1 INCH SHAFT

$4474.99

$

Usually ships in 3-6 days

0

5:1

Toro 104-5864

MOTOR-HYD(OPTIONAL), 80CC-32MM SHAFT

$3042.99

$

Usually ships in 3-6 days

0

5:1

Toro 104-5865

MOTOR-HYD(OPTIONAL), 100CC-32MM SHAFT

$5364.99

$

Usually ships in 3-6 days

0

5:2

Toro 99-4358

GEARBOX ASM

$10654.99

$

Usually ships in 3-6 days

0

5:3

Toro 99-4320

MOUNT-DRIVE, PLANETARY

$1716.99

$

Usually ships in 3-6 days

0

5:4

Toro 99-4321

MOUNT-BOOM

$

$

Not available

5:5

Toro 325-29

SCREW-HH, LH

$26.99

$

Usually ships in 3-6 days

0

5:6

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

5:7

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 15

0

5:1:1

Toro 99-4376

KIT-SEAL, MOTOR

Note: Not illustrated

$654.99

$

Usually ships in 3-6 days

0

5:2:1

Toro 99-4375

SEAL-OIL

Note: Not illustrated

$

$

Not available

5:2:2

Toro 99-4374

O-RING

Note: Not illustrated

$

$

Not available

5:2:3

Toro 99-4377

SET-GEAR, GEARBOX

Note: Not illustrated

$4046.99

$

Usually ships in 3-6 days

0

6

Toro 104-5870

SCREW

$17.99

$

Usually ships in 3-6 days

0

7

Toro 104-1997

TRENCHER BOOM ASM

Note: Not illustrated

$

$

Not available

8

Toro 99-4323

SPANNER

$

$

Not available

9

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

10

Toro 325-4

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

13

Toro 99-4367

PROTECTOR-SEAL

$

$

Not available

14

Toro 99-4334

LOCK-TAPER

$

$

Not available

14:1

Toro 92-5697

SCREW-HSH

$

$

Not available

15

Toro 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

0

16

Toro 100-1699

SAND SPROCKET-12T

$606.99

$

In Stock, only 3 left!

0

17

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 104-1916-03

AUGER ASM,
(Superseded to 104-5912-03)

$755.99

$

Usually ships in 3-6 days

0

19

Toro 325-35

SCREW-HH

$11.99

$

Usually ships in 3-6 days

0

20

Toro 99-4326

SAFETY RAIL ASM

$

$

Not available

20:1

Toro 99-9952

DECAL-DANGER

$24.99

$

Usually ships in 3-6 days

0

21

Toro 98-4683

DECAL-ATTACHMENT, DINGO

$

$

Not available

24

Toro 99-4331-03

Hose Guide ASM

$

$

Not available

25

Toro 104-5853

MOUNTING ASM

$

$

Not available

25:2

Toro 99-9952

DECAL-DANGER

$24.99

$

Usually ships in 3-6 days

0

25:3

Toro 99-9953

DECAL-DANGER

$47.99

$

Usually ships in 3-6 days

0
