22447 - Toro Trencher Head for Dingo Compact Utility Loader (SN: 089000001 - 089999999) (1998) TRENCHER ASSEMBLY Parts Diagram

Trencher Head for Dingo Compact Utility Loader

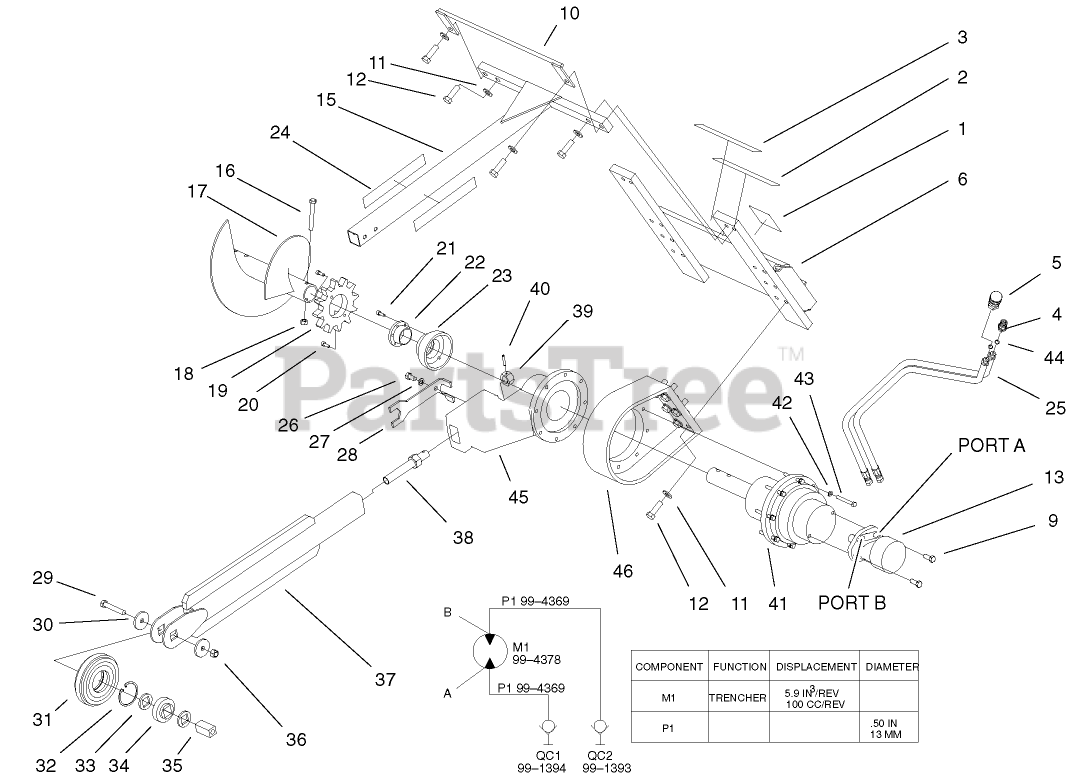

TRENCHER ASSEMBLY Parts Diagram

  • Title

1

Toro 98-4683

DECAL-ATTACHMENT, DINGO

$

$

Not available

2

Toro 99-9952

DECAL-DANGER

$25.99

$

Usually ships in 3-6 days

0

3

Toro 99-9953

DECAL-DANGER

$49.99

$

Usually ships in 3-6 days

0

4

Toro 99-1393

QUICK COUPLER - MALE

$

$

Not available

5

Toro 99-1394

QUICK COUPLER-FEMALE

$

$

Not available

6

Toro 99-4322

Frame Assembly (Incl. Ref. #2 & 3)
(Superseded to 104-5853)

$

$

Not available

8

Toro 98-4798

36" Trencher Bar (Incl. Ref. #29-40)

Note: Not illustrated

$2968.99

$

Usually ships in 3-6 days

0

9

Toro 325-29

SCREW-HH, LH

$27.99

$

Usually ships in 3-6 days

0

10

Toro 99-4331

HOSE GUIDE ASM
(Superseded to 99-4331-03)

$

$

Not available

11

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

12

Toro 327-26

SCREW-HH

$9.99

$

Usually ships in 3-6 days

0

13

Toro 99-4378

Motor-Hydraulic (Incl. Ref. #14

$4698.99

$

Usually ships in 3-6 days

0

14

Toro 99-4376

KIT-SEAL, MOTOR

Note: Not illustrated

$687.99

$

Usually ships in 3-6 days

0

15

Toro 99-4326

Safety Rail ASM (Incl. Ref. #24)

$

$

Not available

16

Toro 325-35

SCREW-HH

$11.99

$

Usually ships in 3-6 days

0

17

Toro 99-4333

AUGER
(Superseded to 104-1916-03)

$793.99

$

Usually ships in 3-6 days

0

18

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 99-4330

Sprocket
(Superseded to 100-1699)

$636.99

$

In Stock, only 3 left!

0

20

Toro 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

0

21

Toro 92-5697

SCREW-HSH

$

$

Not available

22

Toro 99-4334

LOCK-TAPER

$

$

Not available

23

Toro 99-4367

PROTECTOR-SEAL

$

$

Not available

24

Toro 99-9952

DECAL-DANGER

$25.99

$

Usually ships in 3-6 days

0

25

Toro 99-4369

Hose-Hydraulic (Incl. Ref. #44)

$720.99

$

In Stock, only 2 left!

0

26

Toro 325-4

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

27

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

28

Toro 99-4323

SPANNER

$

$

Not available

29

Toro 326-3

SCREW-HH

$

$

Not available

30

Toro 99-4329

WASHER-ROLLER

$

$

Not available

31

Toro 99-4328

ROLLER-NOSE
(Superseded to 104-1996)

$574.99

$

In Stock, only 1 left!

0

32

Toro 99-4373

RING-INT
(Superseded to 104-1945)

$23.99

$

In Stock, only 2 left!

0

33

Toro 99-4325

SPACER-ROLLER
(Superseded to 104-1993)

$85.99

$

In Stock, only 2 left!

0

34

Toro 99-4355

BEARING-SHAFT, SQUARE
(Superseded to 104-1995)

$339.99

$

In Stock, only 1 left!

0

35

Toro 99-4327

PIN-ROLLER
(Superseded to 104-1994)

$100.99

$

Usually ships in 3-6 days

0

36

Toro 99-4371

NUT-LOCK

$5.99

$

Usually ships in 3-6 days

0

37

Toro 99-4332

BOOM ASM
(Superseded to 104-1997)

$

$

Not available

38

Toro 99-4324

Adj Screw ASM (Incl. Ref. #39-40)
(Superseded to 100-7291)

$182.99

$

Usually ships in 3-6 days

0

39

Toro 99-4372

NUT-HEX

$

$

Not available

40

Toro 32121-15

PIN-ROLL

$1.99

$

In Stock, Qty 20+

0

41

Toro 99-4358

Gearbox ASM (Incl. Ref. #47-49)

$11186.99

$

Usually ships in 3-6 days

0

42

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 15

0

43

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

44

Toro 99-4368

O-RING

$

$

Not available

45

Toro 99-4321

MOUNT-BOOM

$

$

Not available

46

Toro 99-4320

MOUNT-DRIVE, PLANETARY

$1802.99

$

Usually ships in 3-6 days

0

47

Toro 99-4374

O-RING

Note: Not illustrated

$

$

Not available

48

Toro 99-4375

SEAL-OIL

Note: Not illustrated

$

$

Not available

49

Toro 99-4377

SET-GEAR, GEARBOX

Note: Not illustrated

$4248.99

$

Usually ships in 3-6 days
