22446x8B - Scotts 22" Walk-Behind Mower (1999) Handle Assembly Parts Diagram

22" Walk-Behind Mower

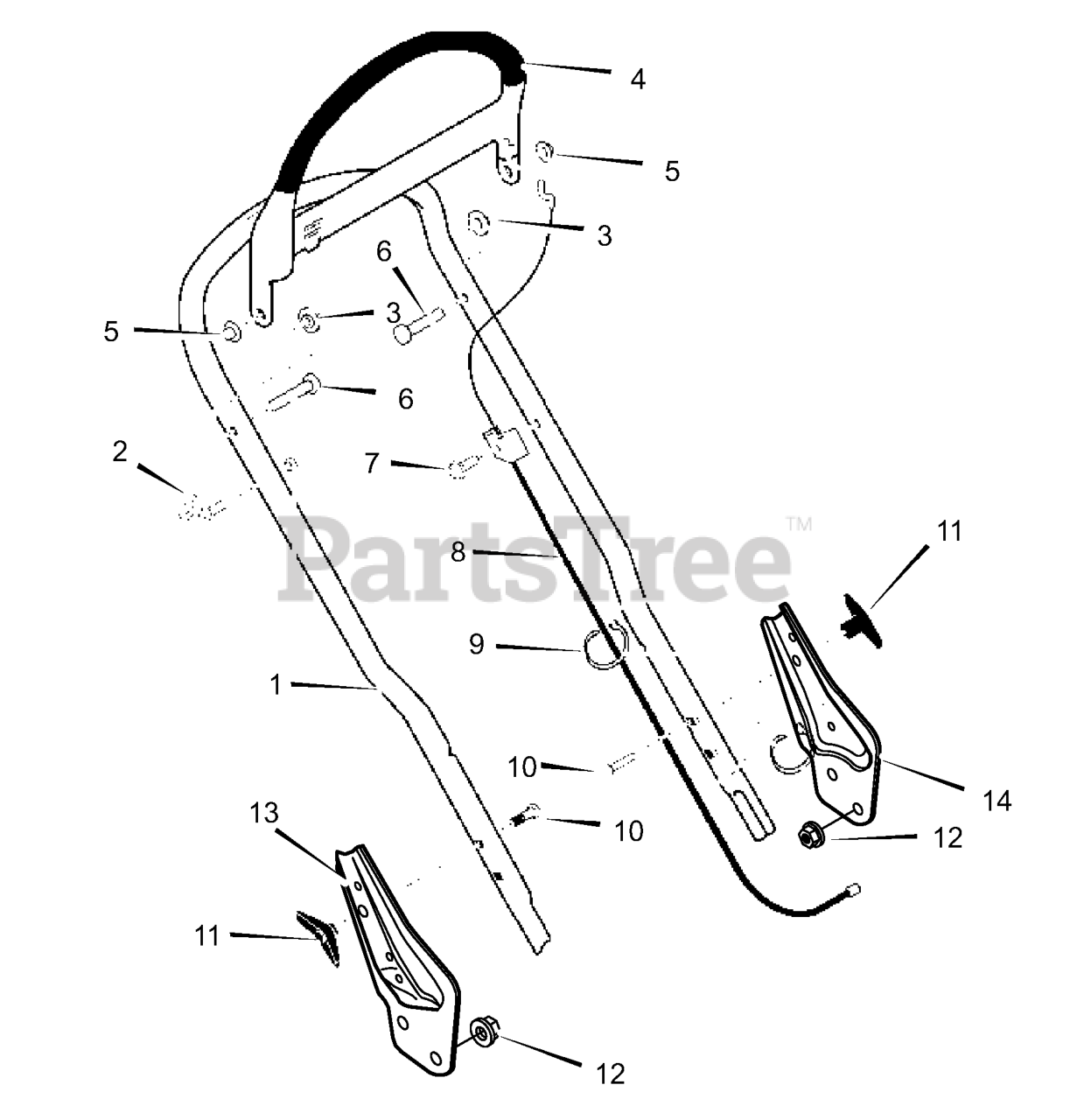

Handle Assembly Parts Diagram

  • Title

1

Murray 672694E701

Handle, Upper

$

$

Currently unavailable

2

Murray 672510MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

3

Murray 672292MA

Spacer

$3.99

$

Usually ships in 2-12 days

0

4

Murray 672797

Lever, Stop

$23.99

$

Usually ships in 2-12 days

0

5

Murray 028X42MA

Push-On Cap

$3.99

$

Usually ships in 2-12 days

0

6

Murray 29X102

Pin, Clevis

$1.99

$

Usually ships in 2-12 days

0

7

Murray 26X220MA

Screw

$3.49

$

Usually ships in 2-12 days

0

8

Murray 672667MA

Cable, Stop

$33.99

$

In Stock, only 1 left!

0

9

Murray 071372MA

Strap, Tie

$4.49

$

In Stock, only 1 left!

0

10

Murray 002X77MA

Bolt, Carriage

$3.99

$

In Stock, only 2 left!

0

11

Murray 672685

Wingnut

$1.49

$

Usually ships in 2-12 days

0

12

Murray 015X79MA

Nut
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

13

Murray 672266E700

Bracket, Right Handle

$

$

Currently unavailable

14

Murray 672267E700

Bracket, Left Handle

$

$

Currently unavailable
