22446x8A - Murray 22" Walk-Behind Mower (1998) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

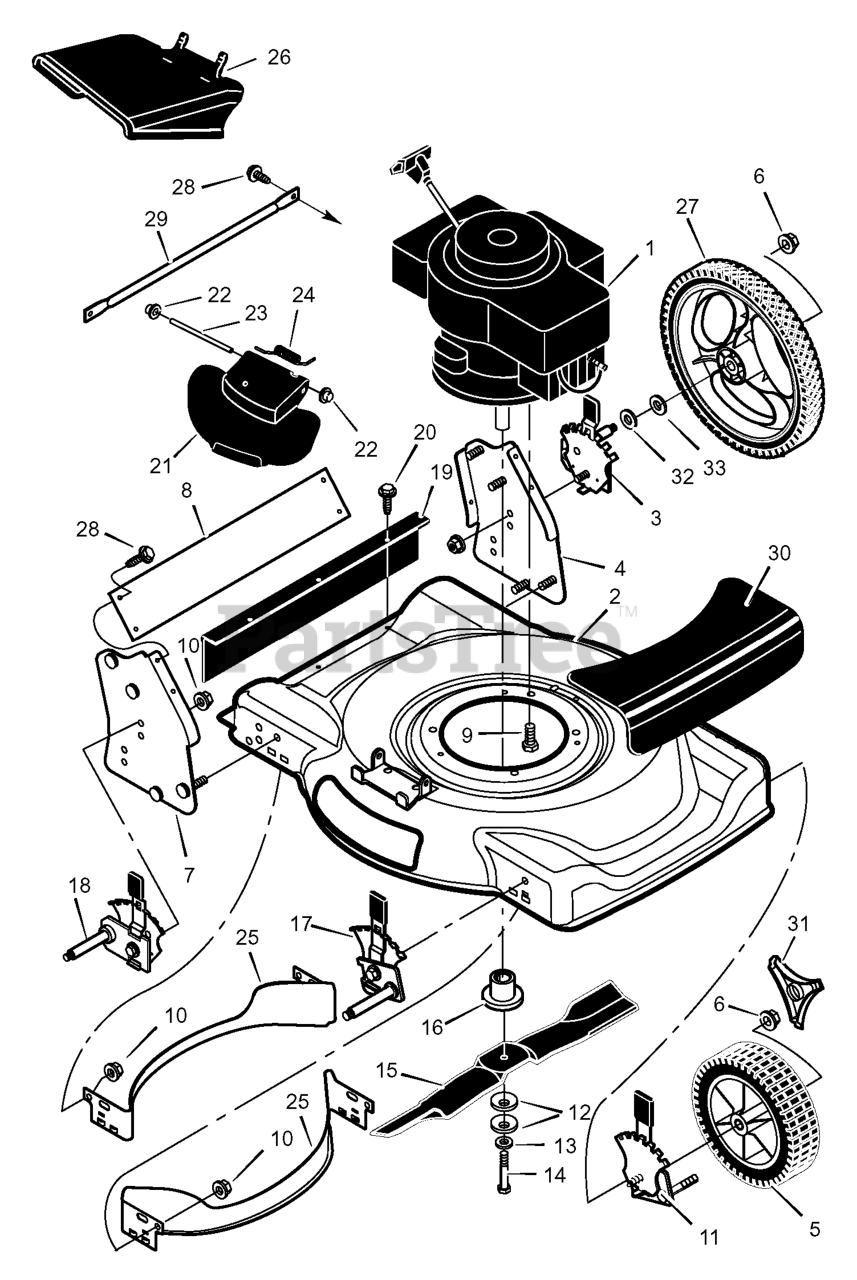

Mower Housing Assembly Parts Diagram

  • Title

1

Engine *

$

$

Not available

2

Murray 776045

Housing

$

$

Currently unavailable

3

Murray 672683

Height Adjuster, Left Rear

$14.99

$

Usually ships in 2-12 days

0

4

Murray 672675E700

Bracket, Left Handle

$

$

Currently unavailable

5

Murray 672437

Wheel and Tire, Front

$8.99

$

Usually ships in 2-12 days

0

6

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 672675E700

Bracket, Right Handle

$

$

Currently unavailable

8

Murray 672660E700

Brace, Handle Bracket

$

$

Currently unavailable

9

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

10

Murray 015X68MA

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Murray 672679

Height Adjuster, Left Front

$11.99

$

Usually ships in 2-12 days

0

12

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

13

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

14

Murray 01X142MA

Bolt, Hex

$8.49

$

In Stock, only 2 left!

0

15

Murray 672573E701MA

Blade

$

$

Not available

16

Murray 071056MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

17

Murray 672678

Height Adjuster, Right Front

$11.99

$

Usually ships in 2-12 days

0

18

Murray 672682

Height Adjuster, Right Rear

$12.99

$

Usually ships in 2-12 days

0

19

Murray 672684

Guard, Rear

$18.99

$

Usually ships in 2-12 days

0

20

Murray 26X245MA

Screw

$4.49

$

In Stock, Qty 6

0

21

Murray 672140

Cover, Mulcher

$

$

Currently unavailable

22

Murray 028X42MA

Push-On Cap

$3.99

$

Usually ships in 2-12 days

0

23

Murray 215X19 Z

Pin, Pivot

$

$

Currently unavailable

24

Murray 166X38MA

Spring

$4.99

$

In Stock, only 2 left!

0

25

Murray 672331E701

Baffle

$

$

Currently unavailable

26

Murray 672619

Deflector, Chute

$

$

Currently unavailable

27

Murray 672438MA

Wheel and Tire, Rear
(Superseded to 672801MA)

$101.99

$

Usually ships in 2-12 days

0

28

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

29

Murray 672504E700

Brace

$

$

Currently unavailable

30

Murray 672333

Cover, Front

$

$

Currently unavailable

31

Murray 672446

Cap, Hub

$

$

Not available

32

Murray 0020X3MA

Washer

$4.49

$

Usually ships in 2-12 days

0

33

Murray 017X91 Z

Washer

$

$

Currently unavailable

--

Murray F-98318

Book, Instruction

$

$

Currently unavailable
