22445 - Toro 40" Tiller for Dingo Compact Utility Loader (SN: 200000001 - 200999999) (2000) TILLER ASSEMBLY Parts Diagram

40" Tiller for Dingo Compact Utility Loader

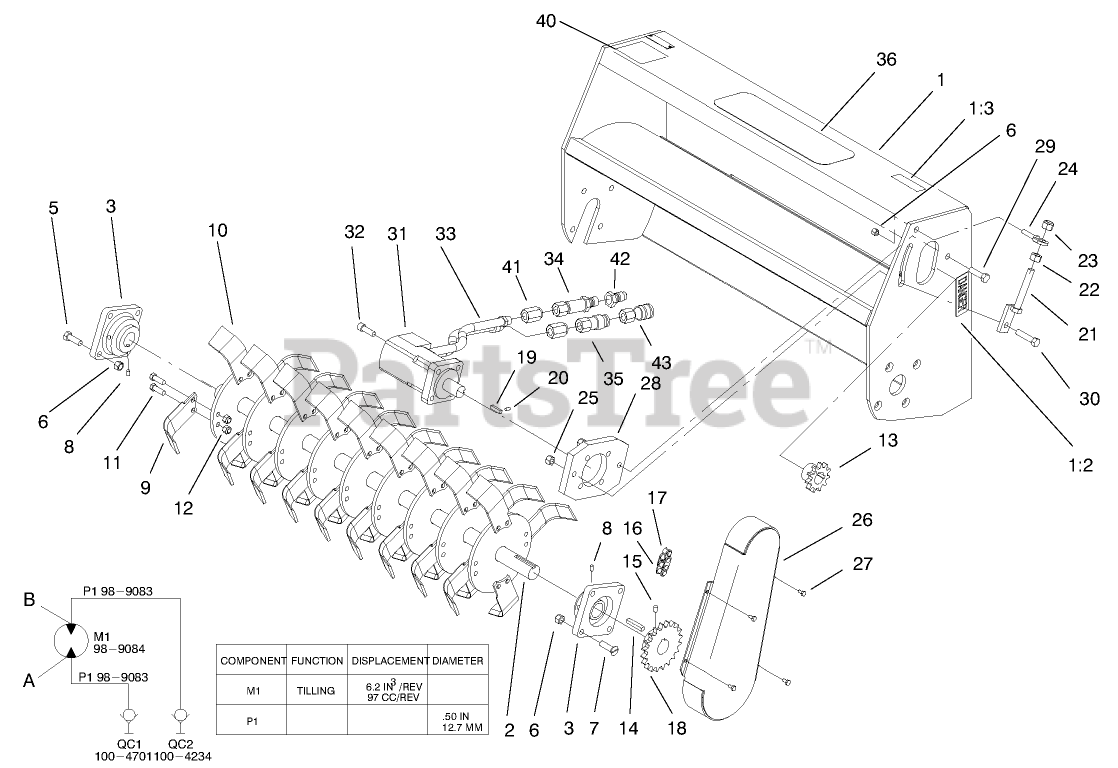

TILLER ASSEMBLY Parts Diagram

  • Title

1

Toro 99-5046

TILLER FRAME ASM

$

$

Not available

1:2

Toro 93-7321

DECAL-DANGER

$29.99

$

Usually ships in 3-6 days

0

1:3

Toro 100-4708

DECAL-WARNING

$58.99

$

Usually ships in 3-6 days

0

2

Toro 98-9087

SHAFT-TINE

$2861.99

$

Usually ships in 3-6 days

0

3

Toro 99-9979

BEARING ASM

$633.99

$

Usually ships in 3-6 days

0

5

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

6

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 98-9931

BOLT

$3.49

$

Usually ships in 3-6 days

0

8

Toro 3246-4

SCREW-SET

$0.99

$

Usually ships in 3-6 days

0

9

Toro 99-9984

Tine-RH
(Superseded to 104-2043)

$26.99

$

Usually ships in 3-6 days

0

10

Toro 99-9985

Tine-LH
(Superseded to 104-2044)

$26.99

$

In Stock, only 1 left!

0

11

Toro 324-29

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

12

Toro 32146-7

NUT-LOCK, INSERT
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

13

Toro 98-9085

SPROCKET-11 TOOTH

$476.99

$

Usually ships in 3-6 days

0

14

Toro 98-9935

KEY-SQUARE

$11.99

$

Usually ships in 3-6 days

0

15

Toro 3247-3

SCREW-SET

$9.49

$

In Stock, only 2 left!

0

16

Toro 98-9088

CHAIN-ROLLER

$269.99

$

Usually ships in 3-6 days

0

17

Toro 98-9089

LINK-CONNECTING

$18.99

$

In Stock, only 1 left!

0

18

Toro 98-9086

SPROCKET-20 TOOTH

$386.99

$

Usually ships in 3-6 days

0

19

Toro 98-9934

KEY-SQUARE
(Superseded to AUH415604)

$16.99

$

Usually ships in 3-6 days

0

20

Toro 3246-4

SCREW-SET

$0.99

$

Usually ships in 3-6 days

0

21

Toro 98-9082

CHAIN ADJUSTMENT ASM

$302.99

$

Usually ships in 3-6 days

0

22

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

23

Toro 3296-41

NUT-LOCK NI

$6.49

$

In Stock, Qty 9

0

24

Toro 99-5044

HOLDER-ADJUSTMENT

$97.99

$

Usually ships in 3-6 days

0

25

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 98-9071

COVER-CHAIN, TILLER

$673.99

$

Usually ships in 3-6 days

0

27

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

28

Toro 98-9070

PLATE-MOUNT, MOTOR

$739.99

$

Usually ships in 3-6 days

0

29

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 17

0

30

Toro 325-10

SCREW-HH

$5.49

$

In Stock, Qty 6

0

31

Toro 98-9084

MOTOR-HYD

$2352.99

$

Usually ships in 3-6 days

0

32

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 10

0

33

Toro 98-9083

HOSE - HYDRAULIC
(Superseded to 104-6207)

$500.99

$

Usually ships in 3-6 days

0

34

Toro 100-4701

NIPPLE-CONNECT, PRESSURE

$282.99

$

Usually ships in 3-6 days

0

34:1

Toro 100-6120

SEAL KIT

Note: Not illustrated

$107.99

$

Usually ships in 3-6 days

0

35

Toro 100-4234

COUPLER-FACE, FLUSH
(Superseded to 104-6134)

$267.99

$

Usually ships in 3-6 days

0

35:1

Toro 100-6119

KIT-SEAL

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

36

Toro 100-8828

DECAL-DINGO, FRONT

$63.99

$

Usually ships in 3-6 days

0

40

Toro 98-3269

DECAL

$43.99

$

Usually ships in 3-6 days

0

41

Toro 100-4618

ADAPTER-HYD

$

$

Not available

41:1

Toro 237-80

O-RING

Note: Not illustrated

$6.99

$

In Stock, Qty 19

0

42

Toro 100-4702

DISCONNECT-QUICK, MALE

$

$

Not available

43

Toro 100-4703

DISCONNECT-QUICK, FEMALE

$

$

Not available

43:1

Toro 100-4165

SEAL KIT

Note: Not illustrated

$

$

Not available
