22441 - Toro Concrete Breaker for Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) BREAKER ASSEMBLY Parts Diagram

Concrete Breaker for Dingo Compact Utility Loader

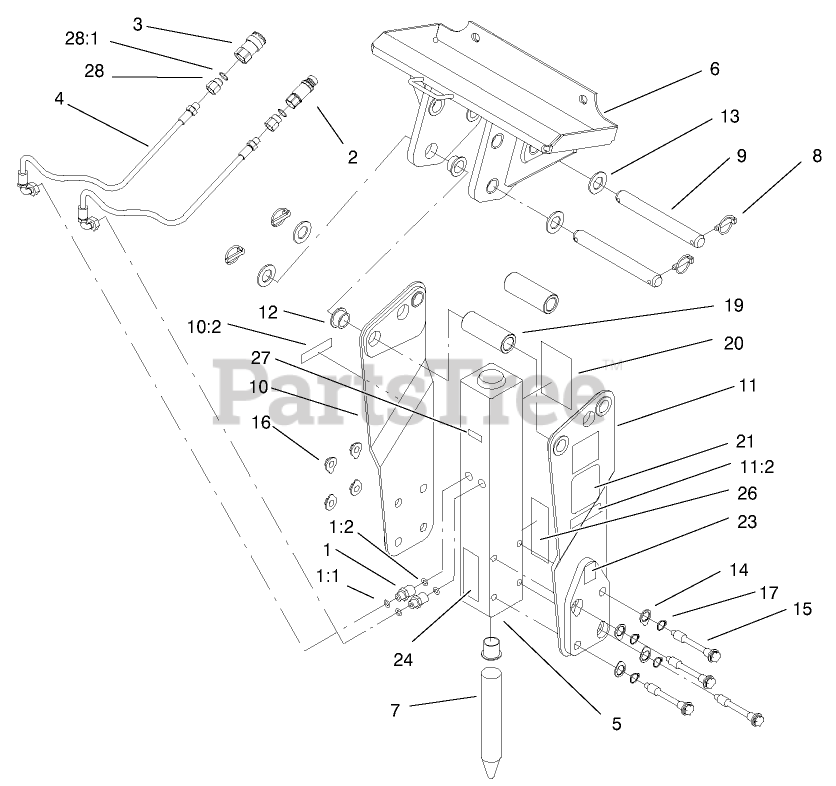

BREAKER ASSEMBLY Parts Diagram

  • Title
1

Toro 340-6

FITTING-STRAIGHT

$20.99

$

Usually ships in 3-6 days

0

1:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

1:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

2

Toro 100-4701

NIPPLE-CONNECT, PRESSURE

$282.99

$

Usually ships in 3-6 days

0

2:1

Toro 100-6120

SEAL KIT

Note: Not illustrated

$107.99

$

Usually ships in 3-6 days

0

3

Toro 100-4234

COUPLER-FACE, FLUSH
(Superseded to 104-6134)

$267.99

$

Usually ships in 3-6 days

0

3:1

Toro 100-6119

KIT-SEAL

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

4

Toro 99-1652

HYD HOSE ASM

$482.99

$

Usually ships in 3-6 days

0

5

Toro 99-4309

POWER HEAD - BREAKER

$35570.99

$

Usually ships in 3-6 days

0

6

Toro 99-4310

ASSEMBLY - ATTACH PLATE

$2270.99

$

Usually ships in 3-6 days

0

7

Toro 99-4312

TOOL BIT

$

$

Not available

8

Toro 99-4314

PIN - LYNCH

$

$

Not available

9

Toro 99-4315

PIN - MOUNTING

$

$

Not available

10

Toro 99-4365

SIDE PLATE-SERVICE, LH

$5820.99

$

Usually ships in 3-6 days

0

10:2

Toro 99-4353

DECAL-CE COMPOSITE

$

$

Not available

11

Toro 99-4366

SIDE PLATE-SERVICE, RH

$

$

Not available

11:2

Toro 99-4353

DECAL-CE COMPOSITE

$

$

Not available

12

Toro 99-4318

BUSHING - BREAKER

$

$

Not available

13

Toro 99-4319

WASHER

$

$

Not available

14

Toro 99-4339

LOCK PLATE

$

$

Not available

15

Toro 99-4340

BOLT-SIDE PLATE

$

$

Not available

16

Toro 99-4341

NUT - SIDE PLATE

$

$

Not available

17

Toro 99-4342

SNAP RING

$17.99

$

Usually ships in 3-6 days

0

19

Toro 99-4345

SPACER

$

$

Not available

20

Toro 99-4348

DECAL-MAINTENANCE

$

$

Not available

21

Toro 99-4349

DECAL-LOGO, DINGO

$

$

Not available

23

Toro 99-4351

DECAL-FLAG, USA

$

$

Not available

24

Toro 99-4352

DECAL-NOT UNDERWATER

$

$

Not available

26

Toro 99-4354

DECAL-GREASE
(Superseded to 104-6067)

$

$

Not available

27

Toro 99-4356

DECAL-NITROGEN
(Superseded to 100-4662)

$

$

Not available

28

Toro 100-4617

ADAPTER-HYD

$21.99

$

Usually ships in 3-6 days

0

28:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

99

Toro 99-4363

TOOL-LINE CUT CHISEL

Note: Not illustrated

$

$

Not available

99

Toro 99-4364

TOOL-LINE CUT,ASPHALT

Note: Not illustrated

$2308.99

$

Usually ships in 3-6 days

0
