22438 - Toro Tree Forks for Dingo Compact Utility Loader (SN: 316000001 - 316999999) (2016) Tree Fork Assembly Parts Diagram

Tree Forks for Dingo Compact Utility Loader

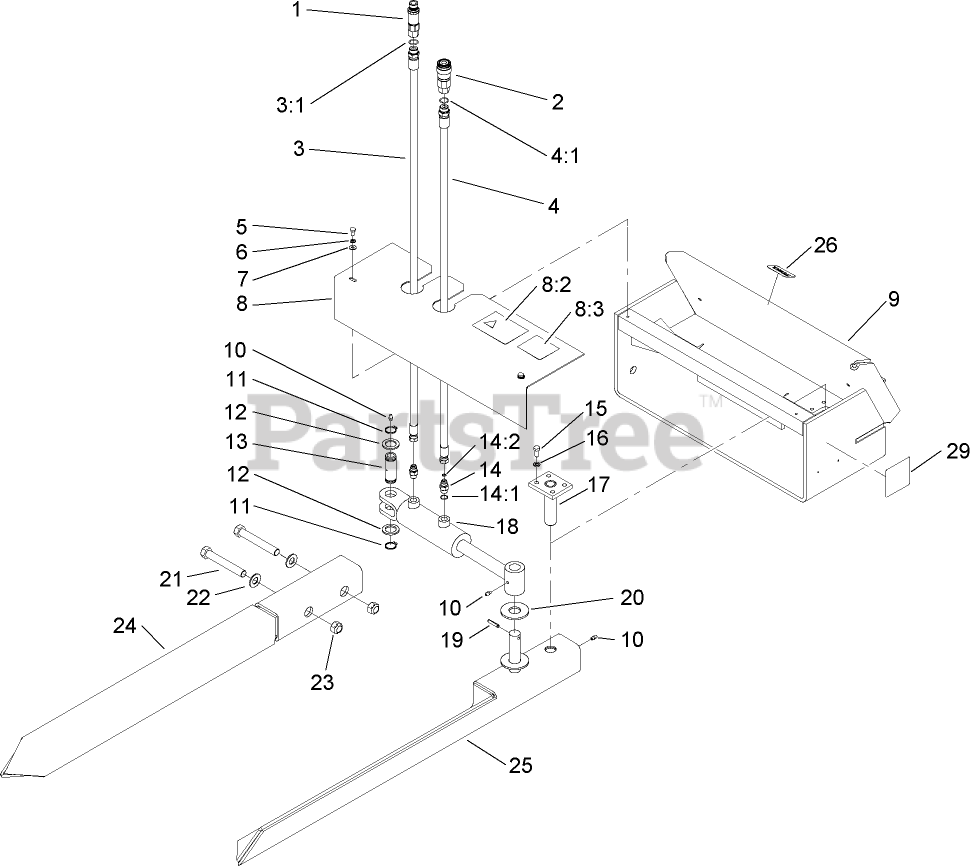

Tree Fork Assembly Parts Diagram

  • Title
1

Toro 110-0077

MALE COUPLER ASM

$444.99

$

Usually ships in 3-6 days

0

2

Toro 110-0078

FEMALE COUPLER ASM

$407.99

$

Usually ships in 3-6 days

0

3

Toro 110-0075

HYD HOSE ASM

$296.99

$

In Stock, only 2 left!

0

3:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

4

Toro 110-0076

HYD HOSE ASM

$279.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

5

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

6

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 110-0083

COVER PLATE ASM

$285.99

$

Usually ships in 3-6 days

0

8:2

Toro 100-4690

DECAL-RATING, LOAD

$138.99

$

Usually ships in 3-6 days

0

8:3

Toro 100-4650

DECAL-WARNING

$26.99

$

Usually ships in 3-6 days

0

9

FRAME ASM

Note: Not serviced separately

$

$

Not available

10

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

11

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, only 4 left!

0

12

Toro 256-115

WASHER-THRUST

$2.49

$

In Stock, Qty 8

0

13

Toro 110-0085

PIN-PIVOT, CYLINDER

$208.99

$

Usually ships in 3-6 days

0

14

Toro 103-2156

FITTING-STRAIGHT

$42.99

$

In Stock, only 4 left!

0

14:1

Toro 1-603921

See Supercession: 237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 20+

0

14:2

Toro 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

16

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

$389.99

$

Usually ships in 3-6 days

0

18

Toro 110-0079

HYD CYLINDER ASM

$1943.99

$

Usually ships in 3-6 days

0

19

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 9

0

20

Toro 3256-10

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 327-23

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

22

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

23

Toro 105-0369

NUT-CROWNLOCK

$7.99

$

Usually ships in 3-6 days

0

24

Toro 99-1682

ARM-PIVOT, RH

$980.99

$

Usually ships in 3-6 days

0

25

Toro 99-1683

ARM-PIVOT, LH

$980.99

$

Usually ships in 3-6 days

0

26

Toro 98-3206

DECAL

$2.49

$

Usually ships in 3-6 days

0

29

Toro 98-3269

DECAL

$43.99

$

Usually ships in 3-6 days

0
