22438 - Toro Tree Forks for Dingo Compact Utility Loader (SN: 220000001 - 220999999) (2002) TREE FORK ASSEMBLY Parts Diagram

Tree Forks for Dingo Compact Utility Loader

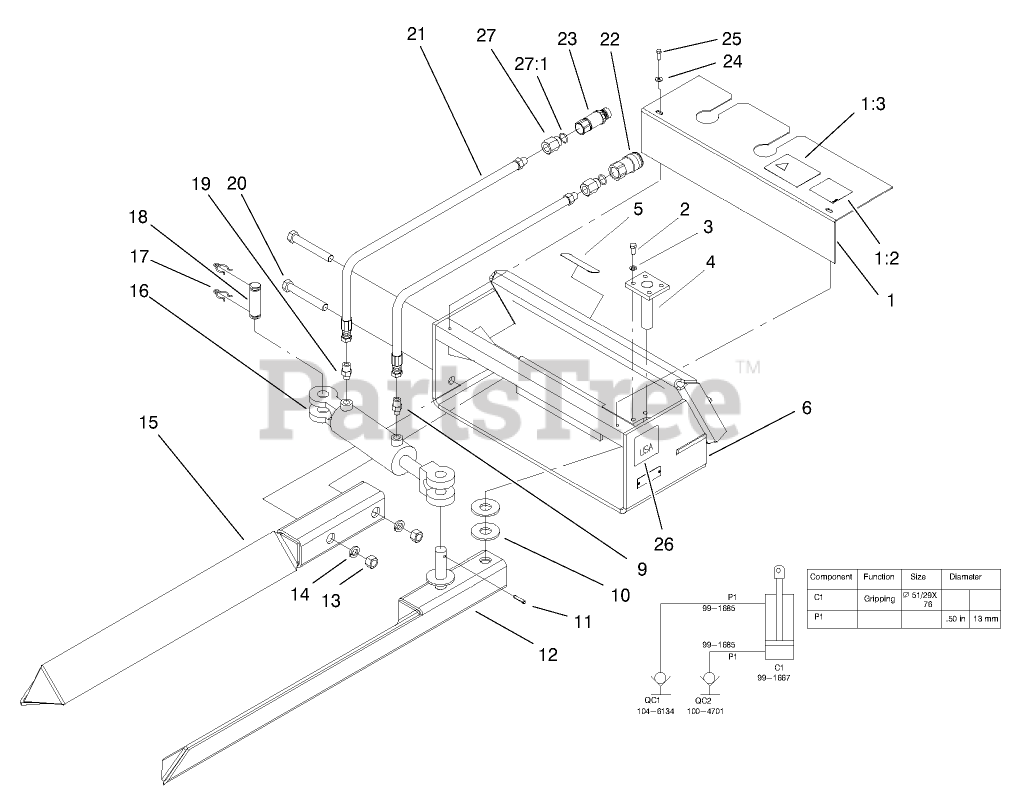

TREE FORK ASSEMBLY Parts Diagram

  • Title

1

Toro 99-1669

SHIELD ASM

$

$

Not available

1:2

Toro 100-4650

DECAL-WARNING

$25.99

$

Usually ships in 3-6 days

0

1:3

Toro 100-4690

DECAL-RATING, LOAD

$138.99

$

Usually ships in 3-6 days

0

2

Toro 3274-10

SCREW-HSH

$9.99

$

In Stock, Qty 13

0

3

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 99-1672

PIN

$377.99

$

Usually ships in 3-6 days

0

5

Toro 98-3206

Decal

$1.99

$

Usually ships in 3-6 days

0

6

Toro 99-1680

FRAME

$4132.99

$

Usually ships in 3-6 days

0

9

Toro 99-1686

CONNECTOR - STRAIGHT

$

$

Not available

10

Toro 3256-10

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 9

0

12

Toro 99-1683

ARM-PIVOT, LH

$975.99

$

Usually ships in 3-6 days

0

13

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

14

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 99-1682

ARM-PIVOT, RH

$975.99

$

Usually ships in 3-6 days

0

16

Toro 99-1667

CYLINDER - TREE FORK
(Superseded to 110-0079)

$1934.99

$

Usually ships in 3-6 days

0

16:1

Toro 100-4695

KIT-SEAL

Note: Not illustrated

$

$

Not available

17

Toro 99-1689

CLIP - PIN

$

$

Not available

18

Toro 99-1688

PIN - CYLINDER PIVOT

$

$

Not available

19

Toro 99-1687

CONNECTOR-STRAIGHT ORIFICE

$

$

Not available

20

Toro 3214-15

SCREW-HH

$17.99

$

Usually ships in 3-6 days

0

21

Toro 99-1685

HYDRAULIC HOSE ASM

$1224.99

$

Usually ships in 3-6 days

0

22

Toro 104-6134

COUPLER-FACE, FLUSH

$259.99

$

Usually ships in 3-6 days

0

22:1

Toro 105-8396

SEAL KIT
(Superseded to 106-7692)

Note: Not illustrated

$233.99

$

Usually ships in 3-6 days

0

23

Toro 100-4701

NIPPLE-CONNECT, PRESSURE

$274.99

$

Usually ships in 3-6 days

0

23:1

Toro 100-6120

SEAL KIT

Note: Not illustrated

$104.99

$

Usually ships in 3-6 days

0

24

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 3274-8

SCREW-HSH
(Superseded to 3274-64)

$1.49

$

Usually ships in 3-6 days

0

26

Toro 98-3269

DECAL

$38.99

$

Usually ships in 3-6 days

0

27

Toro 100-4618

ADAPTER-HYD

$

$

Not available

27:1

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 9

0
