22438 - Toro Tree Forks for Dingo Compact Utility Loader (SN: 200000001 - 200999999) (2000) TREE FORKS ASSEMBLY Parts Diagram

Tree Forks for Dingo Compact Utility Loader

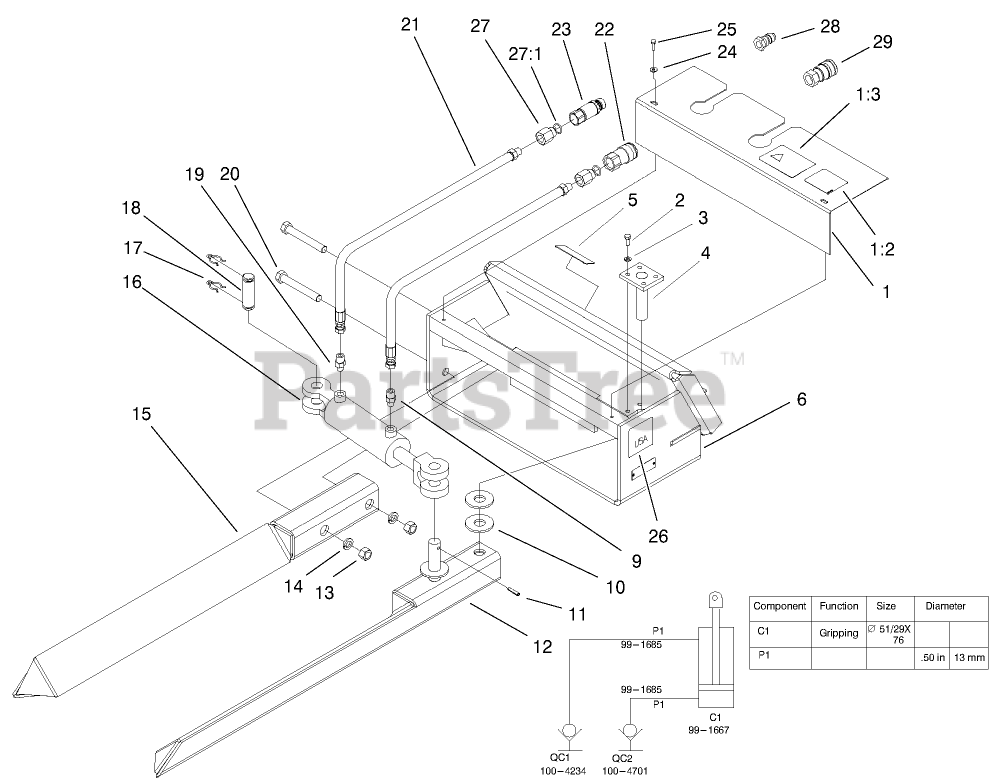

TREE FORKS ASSEMBLY Parts Diagram

  • Title

1

Toro 99-1669

SHIELD ASM

$

$

Not available

1:2

Toro 100-4650

DECAL-WARNING

$27.99

$

Usually ships in 3-6 days

0

1:3

Toro 100-4690

DECAL-RATING, LOAD

$145.99

$

Usually ships in 3-6 days

0

2

Toro 3274-10

SCREW-HSH

$10.99

$

In Stock, Qty 20+

0

3

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 99-1672

PIN

$408.99

$

Usually ships in 3-6 days

0

5

Toro 98-4683

DECAL-ATTACHMENT, DINGO

$

$

Not available

6

Toro 99-1680

FRAME

$4426.99

$

Usually ships in 3-6 days

0

9

Toro 99-1686

CONNECTOR - STRAIGHT

$

$

Not available

10

Toro 3256-10

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, only 4 left!

0

12

Toro 99-1683

ARM-PIVOT, LH

$1029.99

$

Usually ships in 3-6 days

0

13

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

14

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 99-1682

ARM-PIVOT, RH

$1029.99

$

Usually ships in 3-6 days

0

16

Toro 99-1667

CYLINDER - TREE FORK
(Superseded to 110-0079)

$2040.99

$

Usually ships in 3-6 days

0

16:1

Toro 100-4695

KIT-SEAL

$

$

Not available

17

Toro 99-1689

CLIP - PIN

$

$

Not available

18

Toro 99-1688

PIN - CYLINDER PIVOT

$

$

Not available

19

Toro 99-1687

CONNECTOR-STRAIGHT ORIFICE

$

$

Not available

20

Toro 3214-15

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

21

Toro 99-1685

HYDRAULIC HOSE ASM

$1311.99

$

Usually ships in 3-6 days

0

22

Toro 100-4234

COUPLER-FACE, FLUSH
(Superseded to 104-6134)

$280.99

$

Usually ships in 3-6 days

0

22:1

Toro 100-6119

KIT-SEAL

Note: Not illustrated

$116.99

$

Usually ships in 3-6 days

0

23

Toro 100-4701

NIPPLE-CONNECT, PRESSURE

$296.99

$

Usually ships in 3-6 days

0

23:1

Toro 100-6120

SEAL KIT

Note: Not illustrated

$113.99

$

Usually ships in 3-6 days

0

24

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 3274-8

SCREW-HSH
(Superseded to 3274-64)

$1.49

$

Usually ships in 3-6 days

0

26

Toro 98-3269

DECAL

$43.99

$

Usually ships in 3-6 days

0

27

Toro 100-4618

ADAPTER-HYD

$

$

Not available

27:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

28

Toro 100-4702

DISCONNECT-QUICK, MALE

$

$

Not available

29

Toro 100-4703

DISCONNECT-QUICK, FEMALE

$

$

Not available

29:1

Toro 100-4165

SEAL KIT

Note: Not illustrated

$

$

Not available
