2243 A89 - Electrolux/AYP Walk-Behind Mower (1998) ROTARY LAWN MOWER Parts Diagram

Walk-Behind Mower

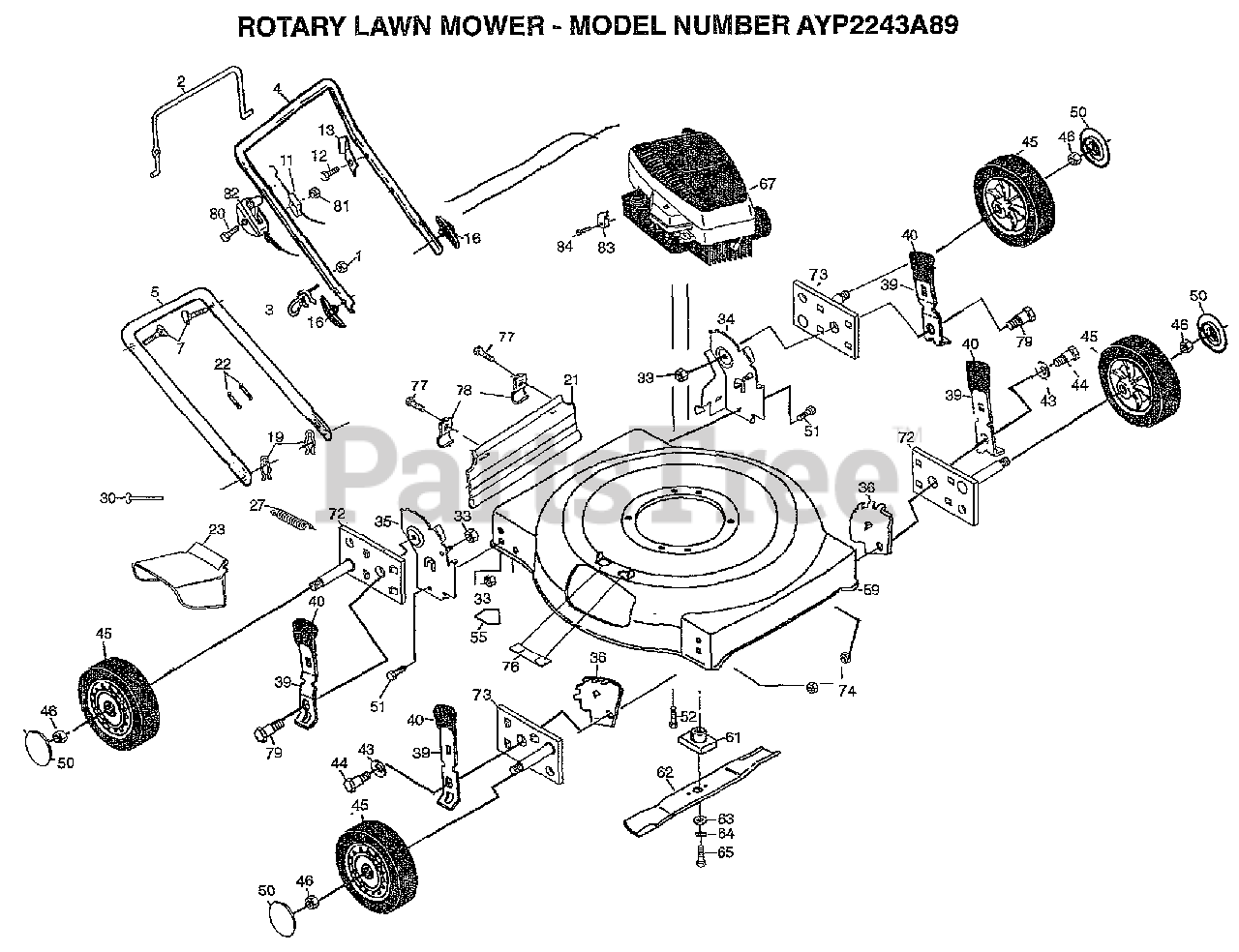

ROTARY LAWN MOWER Parts Diagram

  • Title
1

Electrolux/AYP 63601

SUB= 73800400

$

$

Not available

2

Electrolux/AYP 86902

CONTROL BAR PM
(Superseded to 532086902)

$

$

Not available

3

Electrolux/AYP 132001

ROPE GUIDE
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

4

$

$

Not available

5

Electrolux/AYP 160609X479

LOWER HANDLE
(Superseded to 532174291)

$

$

Not available

7

Electrolux/AYP 131959

BOLT.HANDLE.LM
(Superseded to 532183724)

$

$

Not available

11

Electrolux/AYP 130861

"CABLE,ENG ZONE CO"
(Superseded to 532130861)

$

$

Not available

12

Electrolux/AYP 750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

13

Electrolux/AYP 86899X004

"BRKT,UPSTOP PM"
(Superseded to 532430034)

$6.99

$

In Stock, only 3 left!

0

16

Electrolux/AYP 128638

"NUT,WING PM"
(Superseded to 532128638)

$7.49

$

In Stock, Qty 8

0

19

Electrolux/AYP 51793

HAIRPIN COTTER
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 140540

SKIRT.REAR.FGD.22
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 66426

SUB= 7192J
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 160831

GUARD.DISCHARGE
(Superseded to 532160831)

$

$

Not available

27

Electrolux/AYP 160832

HINGE.SPRING
(Superseded to 532408585)

$18.99

$

In Stock, only 2 left!

0

30

Electrolux/AYP 160833

HINGE.ROD.22SD
(Superseded to 532160833)

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 751153

LOCKNUT
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

34

Electrolux/AYP 161268X479

WHL BRKT SUPT LEFT
(Superseded to 583032001)

$47.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 161269X479

WHL BRKT SUPT RIGHT
(Superseded to 583032001)

$47.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 160835X007

WHEEL.BRKT.ADJ.
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

39

Electrolux/AYP 160826X004

SLECTOR SPRING
(Superseded to 532168360)

$

$

Not available

40

Electrolux/AYP 87877

KNOB PM
(Superseded to 532087877)

$6.49

$

In Stock, only 1 left!

0

43

Electrolux/AYP 19112222

WASHER.BELLEVELLE
(Superseded to 819112206)

$5.99

$

In Stock, Qty 5

0

44

Electrolux/AYP 160828

SHOULDER BOLT
(Superseded to 532160828)

$

$

Not available

45

Electrolux/AYP 800220

WHEEL.ASM
(Superseded to 532146248)

$

$

Not available

46

Electrolux/AYP 83923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

50

Electrolux/AYP 800090

HUB CAP-PLASTIC
(Superseded to 584458901)

$18.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 17600406

SCREW 1/4X20
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 150406

BOLT.ENG.3/8-16
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 85463

DECAL-DANGER PM
(Superseded to 582940001)

$4.99

$

In Stock, only 1 left!

0

59

Electrolux/AYP 161115

LAWN MOWER HOUSING
(Superseded to 583012301)

$132.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 851514

ADAPTOR.BLADE.LM
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

62

Electrolux/AYP 141114

"BLADE.MULCH.22"""
(Superseded to 532141114)

$28.99

$

In Stock, only 1 left!

0

63

Electrolux/AYP 851074

"WASHER,HARDEN"
(Superseded to 532851074)

$4.99

$

In Stock, only 2 left!

0

64

Electrolux/AYP 850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 851084

SCREW
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

67

CHECK WITH SUPPLIER

$

$

Not available

72

Electrolux/AYP 161114X004

ARM.ASM.AXLE.RR/LF
(Superseded to 532186577)

$

$

Not available

73

Electrolux/AYP 161113X004

SUB= 167133X004
(Superseded to 532186578)

$

$

Not available

74

Electrolux/AYP 751153

LOCKNUT
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

76

Electrolux/AYP 161622

CLIP.CLOSECUT.22SD
(Superseded to 532161622)

$14.99

$

In Stock, only 2 left!

0

77

Electrolux/AYP 750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

78

Electrolux/AYP 87584X004

"BRKT,DEFL PM"
(Superseded to 532192301)

$

$

Not available

79

Electrolux/AYP 160829

SHOULDER BOLT
(Superseded to 532160829)

$7.49

$

In Stock, only 2 left!

0

80

Electrolux/AYP 144929

SCREW.HXHD.WASH.
(Superseded to 532183365)

$6.49

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 63601

SUB= 73800400

$

$

Not available

82

Electrolux/AYP 700644

CONTROL.THL.49.35
(Superseded to 532700644)

$17.99

$

Usually ships in 3-10 days

0

83

Electrolux/AYP 111190X

CABLE CLAMP
(Superseded to 532111190)

$

$

Not available

84

Electrolux/AYP 83816

SCREW PM
(Superseded to 532083816)

$6.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 162547

MANUAL.O.2243A89

$2.49

$

Usually ships in 3-10 days

0

Electrolux/AYP GCK3300

GRASS CATCHER KIT
(Superseded to 954140099)

$49.99

$

Usually ships in 3-10 days

0

Electrolux/AYP MK3300

MULCHER KIT
(Superseded to 583782001)

$61.99

$

Usually ships in 3-10 days

0
