22429 - Toro Stump Grinder for Dingo Compact Utility Loader (SN: 220000201 - 220999999) (2002) HYDRAULIC CYLINDER ASSEMBLY NO. 104-6094 Parts Diagram

Stump Grinder for Dingo Compact Utility Loader

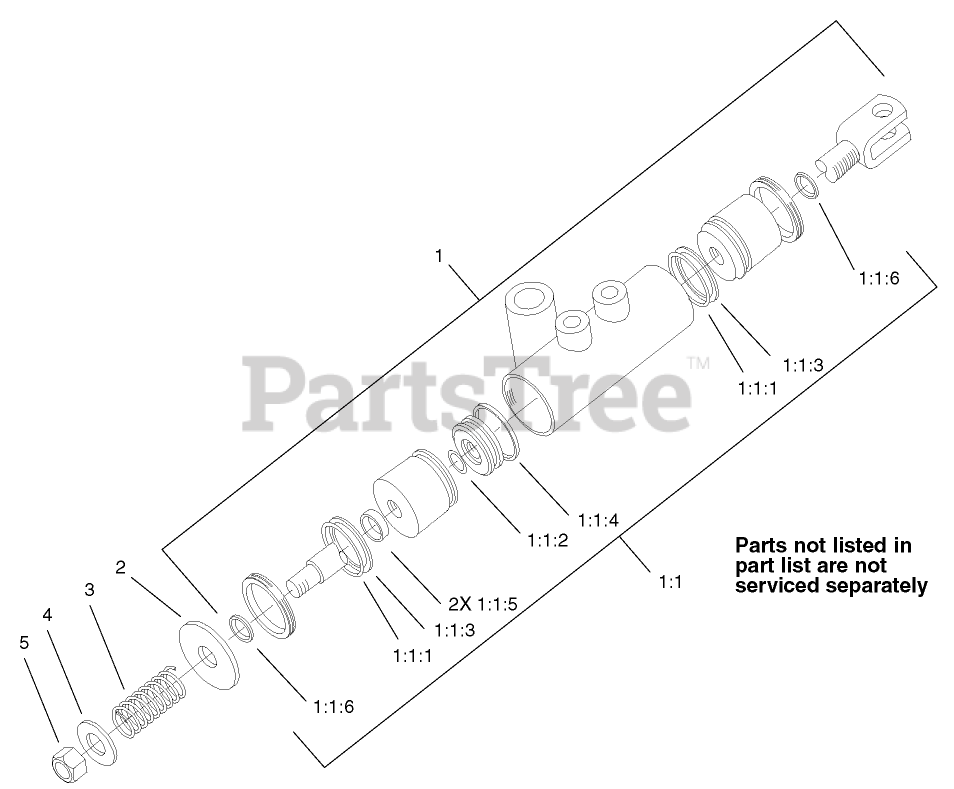

HYDRAULIC CYLINDER ASSEMBLY NO. 104-6094 Parts Diagram

  • Title

1

Toro 104-6093

HYDRAULIC CYLINDER ASM

$872.99

$

Usually ships in 3-6 days

0

1:1

Toro 104-5847

SEAL KIT

$251.99

$

Usually ships in 3-6 days

0

1:1:1

Seal-Dust

Note: Not serviced separately

$

$

Not available

1:1:2

Seal-Dust

Note: Not serviced separately

$

$

Not available

1:1:3

O-Ring, Backup

Note: Not serviced separately

$

$

Not available

1:1:4

T-Seal

Note: Not serviced separately

$

$

Not available

1:1:5

Seal-Rod

Note: Not serviced separately

$

$

Not available

1:1:6

Seal-Dust

Note: Not serviced separately

$

$

Not available

2

Toro 104-5837

WASHER-CYLINDER

$17.99

$

Usually ships in 3-6 days

0

3

Toro 66-9010

SPRING-COMPRESSION

$30.99

$

Usually ships in 3-6 days

0

4

Toro 3256-82

WASHER-FLAT

$0.99

$

In Stock, Qty 7

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
