22426 - Toro Power Box Rake for Dingo Compact Utility Loader (SN: 315000001 - 315999999) (2015) CASTER WHEEL ASSEMBLY Parts Diagram

Power Box Rake for Dingo Compact Utility Loader

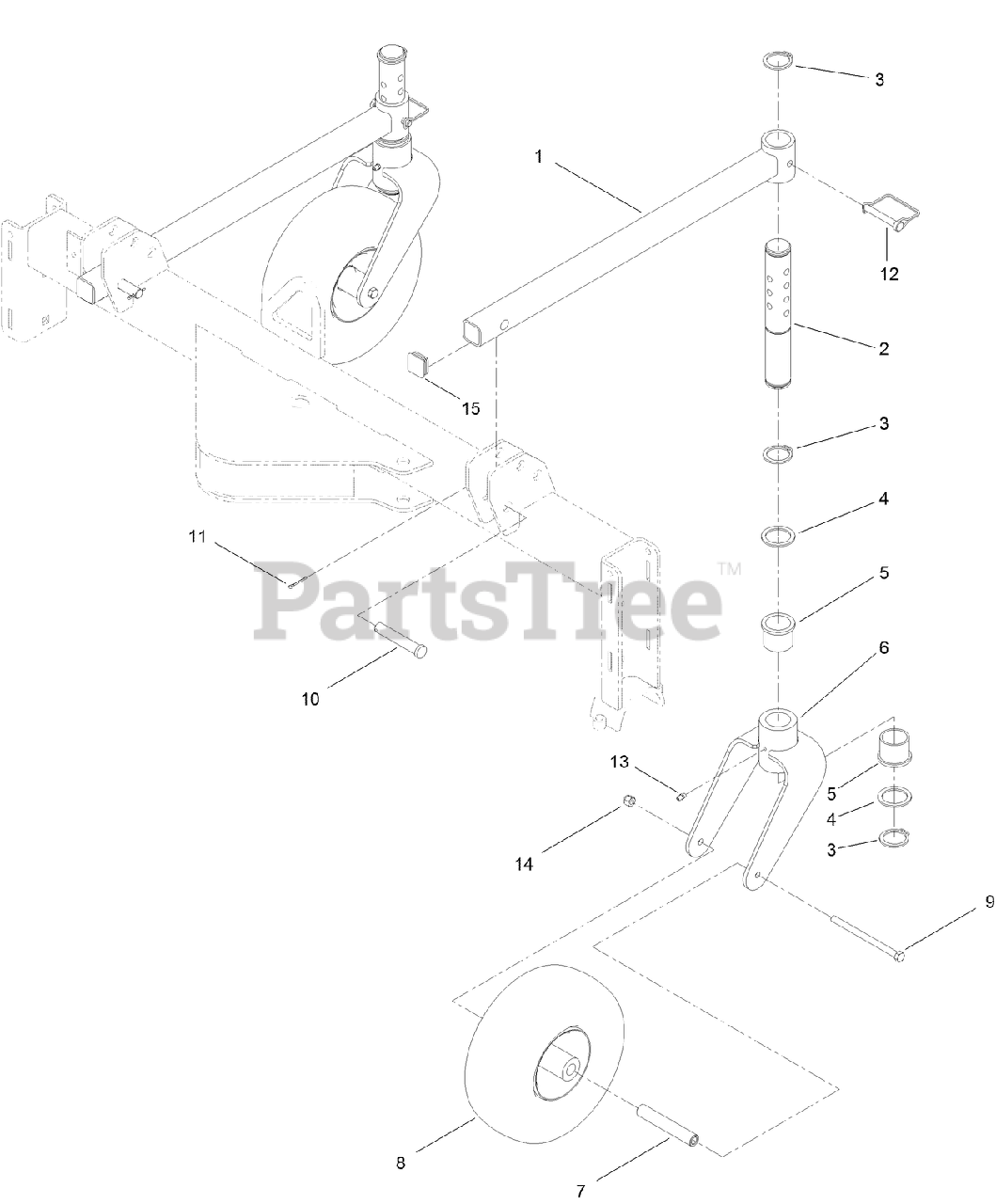

CASTER WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 130-2767

ARM-CASTER

$444.99

$

Usually ships in 3-6 days

0

2

Toro 130-2768

PIN-ADJUSTMENT, HEIGHT

$180.99

$

Usually ships in 3-6 days

0

3

Toro 32151-44

RING-RETAINING

$4.99

$

Usually ships in 3-6 days

0

4

Toro 130-2770

SPACER

$19.99

$

Usually ships in 3-6 days

0

5

Toro 130-2772

BEARING-FLANGE

$69.99

$

Usually ships in 3-6 days

0

6

Toro 130-2771

FORK-CASTER

$649.99

$

Usually ships in 3-6 days

0

7

Toro 130-2773

SPACER-SLEEVE

$48.99

$

Usually ships in 3-6 days

0

8

Toro 130-2774

WHEEL AND TIRE ASM

$389.99

$

Usually ships in 3-6 days

0

9

Toro AU426-688

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

10

Toro 283-78

PIN-CLEVIS

$10.99

$

Usually ships in 3-6 days

0

11

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

12

Toro 93-4696

PIN-HITCH

$10.99

$

Usually ships in 3-6 days

0

13

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

14

Toro 112-0236

NUT-LOCK

$5.99

$

Usually ships in 3-6 days

0

15

Toro 130-2783

CAP-TUBE

$4.49

$

Usually ships in 3-6 days

0
