22425 - Toro Power Box Rake for Dingo Compact Utility Loader (SN: 280000001 - 280999999) (2008) FRAME ASSEMBLY Parts Diagram

Power Box Rake for Dingo Compact Utility Loader

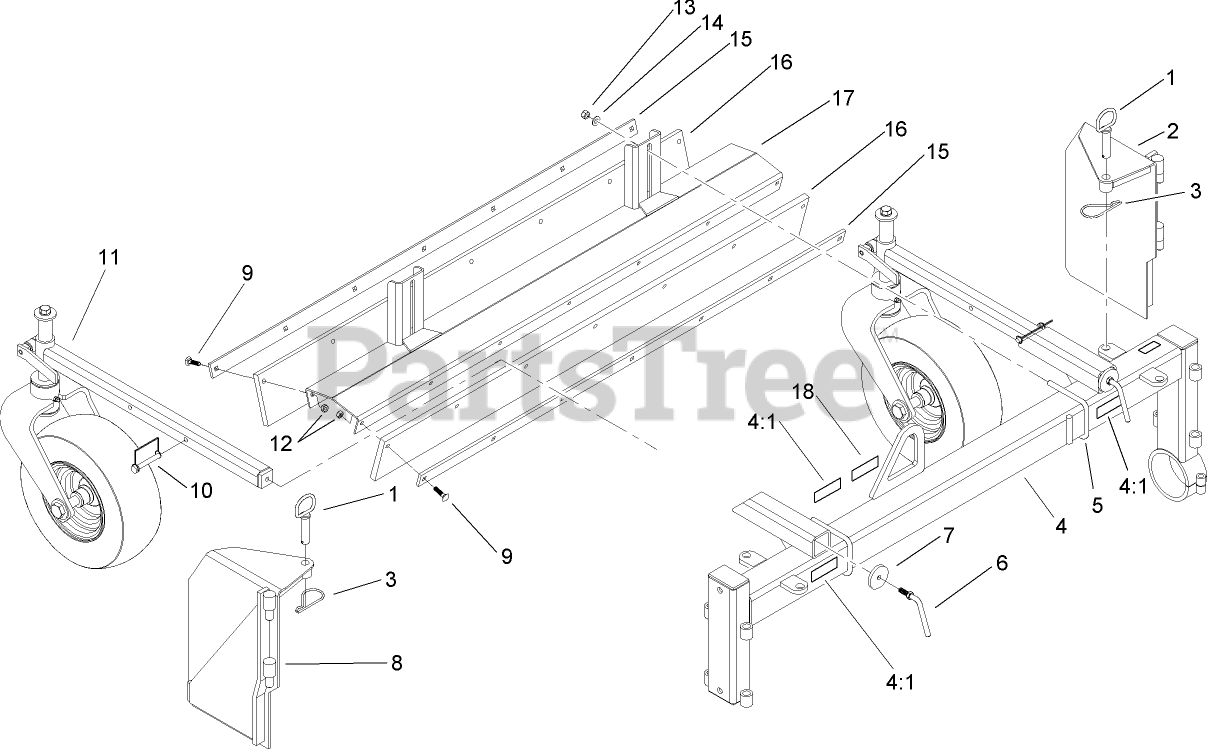

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 107-9461

PIN ASSEMBLY

$49.99

$

Usually ships in 3-6 days

0

2

Toro 107-9405

BRACKET-GATE, RH

$950.99

$

Usually ships in 3-6 days

0

3

Toro 92-2762

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

4

Toro 107-9402

FRAME-MAIN, RAKE

$4385.99

$

Usually ships in 3-6 days

0

4:1

Toro 93-7321

DECAL-DANGER

$26.99

$

Usually ships in 3-6 days

0

5

Toro 107-9421

U-BOLT

$

$

Not available

6

Toro 107-9422

HANDLE-ARM, CASTOR

$70.99

$

Usually ships in 3-6 days

0

7

Toro 107-9463

WASHER-FLAT

$42.99

$

Usually ships in 3-6 days

0

8

Toro 107-9406

BRACKET-GATE, LH

$950.99

$

Usually ships in 3-6 days

0

9

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

10

Toro 93-4696

PIN-HITCH

$10.99

$

Usually ships in 3-6 days

0

11

Toro 107-9410

CASTOR WHEEL ASM

$2141.99

$

Usually ships in 3-6 days

0

12

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

13

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 100-4852

WASHER-HARDENED

$5.49

$

Usually ships in 3-6 days

0

15

Toro 107-9409

STRAP-BARRIER

$227.99

$

Usually ships in 3-6 days

0

16

Toro 107-9408

BARRIER-RAKE

$911.99

$

Usually ships in 3-6 days

0

17

Toro 107-9407

MOUNT-BARRIER

$797.99

$

Usually ships in 3-6 days

0

18

Toro 71-0600

DECAL

$13.99

$

Usually ships in 3-6 days

0
