22420 - Toro Bore Drive Head Attachment for Dingo Compact Utility Loader (SN: 312000001 - 312999999) (2012) BORE DRIVE HEAD ASSEMBLY Parts Diagram

Bore Drive Head Attachment for Dingo Compact Utility Loader

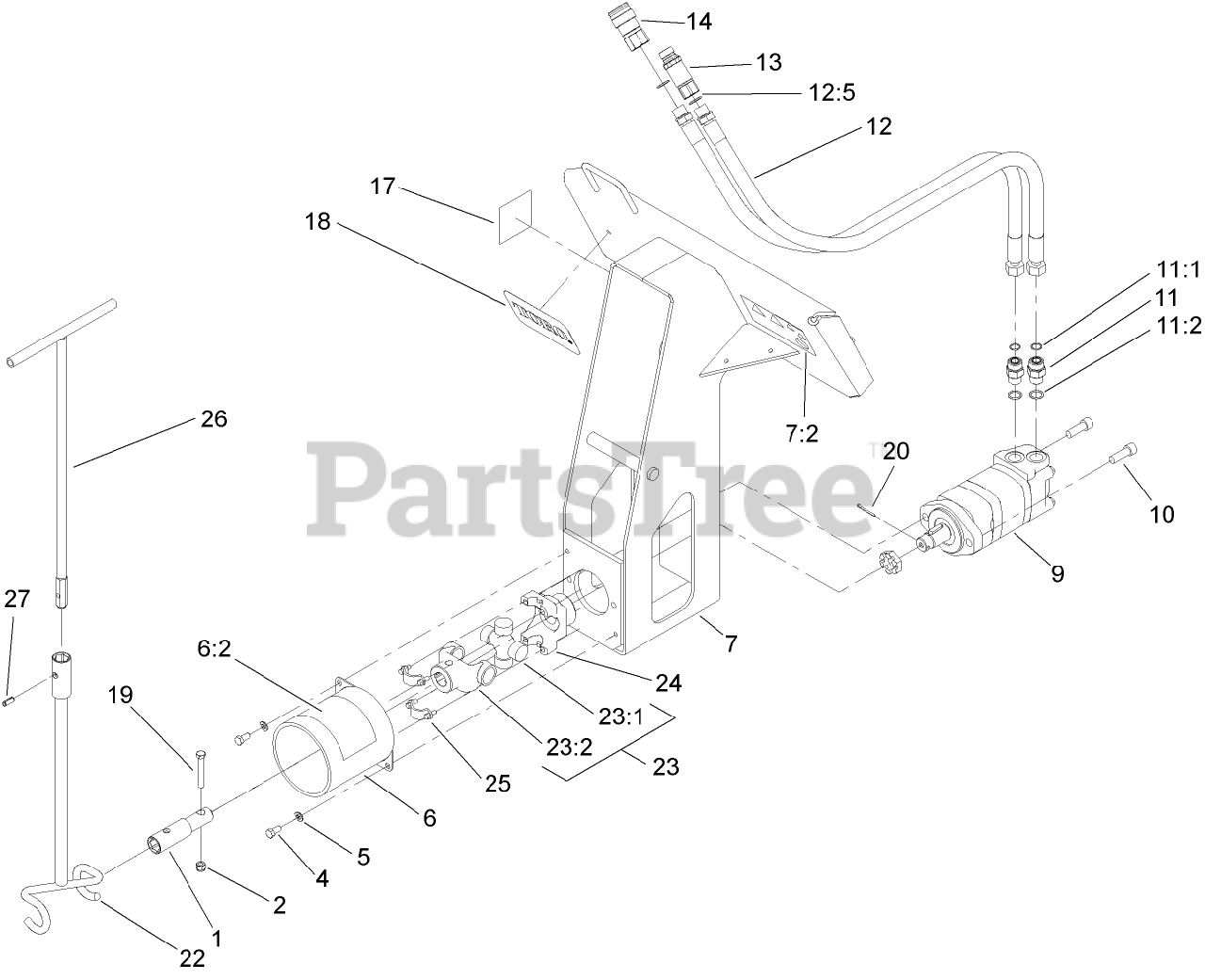

BORE DRIVE HEAD ASSEMBLY Parts Diagram

  • Title
1

Toro 110-0156

COUPLER ASM
(Superseded to 115-3897)

$368.99

$

Usually ships in 3-6 days

0

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

5

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 15

0

6

Toro 104-1895

Shield ASM

$387.99

$

Usually ships in 3-6 days

0

6:2

Toro 99-9945

DECAL-WARNING

$61.99

$

Usually ships in 3-6 days

0

7

Toro 104-1894

Bore Frame ASM

$2190.99

$

Usually ships in 3-6 days

0

7:2

Toro 99-9945

DECAL-WARNING

$61.99

$

Usually ships in 3-6 days

0

9

Toro 98-8280

MOTOR-HYDRAULIC

$6653.99

$

Usually ships in 3-6 days

0

10

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 10

0

11

Toro 340-7

FITTING-STRAIGHT

$14.99

$

In Stock, Qty 13

0

11:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

11:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

12

Toro 104-1932

HOSE ASM

$399.99

$

Usually ships in 3-6 days

0

12:5

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

13

Toro 100-4701

NIPPLE-CONNECT, PRESSURE

$282.99

$

Usually ships in 3-6 days

0

13:1

Toro 100-6120

SEAL KIT (Not illustrated)

$107.99

$

Usually ships in 3-6 days

0

14

Toro 104-6134

COUPLER-FACE, FLUSH

$267.99

$

Usually ships in 3-6 days

0

14:1

Toro 105-8396

SEAL KIT (Not illustrated)
(Superseded to 106-7692)

$240.99

$

Usually ships in 3-6 days

0

17

Toro 98-3269

DECAL

$43.99

$

Usually ships in 3-6 days

0

18

Toro 93-7340

DECAL

$55.99

$

Usually ships in 3-6 days

0

19

Toro 323-47

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

20

Toro 3272-15

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

22

Toro 104-5988-03

TOOL-GUIDE, ROD

$366.99

$

Usually ships in 3-6 days

0

23

Toro 104-5989

YOKE ASM
(Superseded to 121-4560)

$413.99

$

Usually ships in 3-6 days

0

23:1

Toro 99-4300

U-JOINT

$131.99

$

Usually ships in 3-6 days

0

23:2

Toro 104-6105

YOKE-U-JOINT
(Superseded to 121-4560)

$413.99

$

Usually ships in 3-6 days

0

24

Toro 104-5917

YOKE-U-BOLT

$

$

Not available

25

Toro 104-5995

Bearing Strap Kit

$45.99

$

Usually ships in 3-6 days

0

26

Toro 106-7740-03

HANDLE-TOOL, GUIDE

$381.99

$

Usually ships in 3-6 days

0

27

Toro 32121-41

PIN-ROLL

$7.99

$

Usually ships in 3-6 days

0
