22420 - Toro Bore Drive Head Attachment for Dingo Compact Utility Loader (SN: 200000001 - 200999999) (2000) BORE DRIVE HEAD ASSEMBLY Parts Diagram

Bore Drive Head Attachment for Dingo Compact Utility Loader

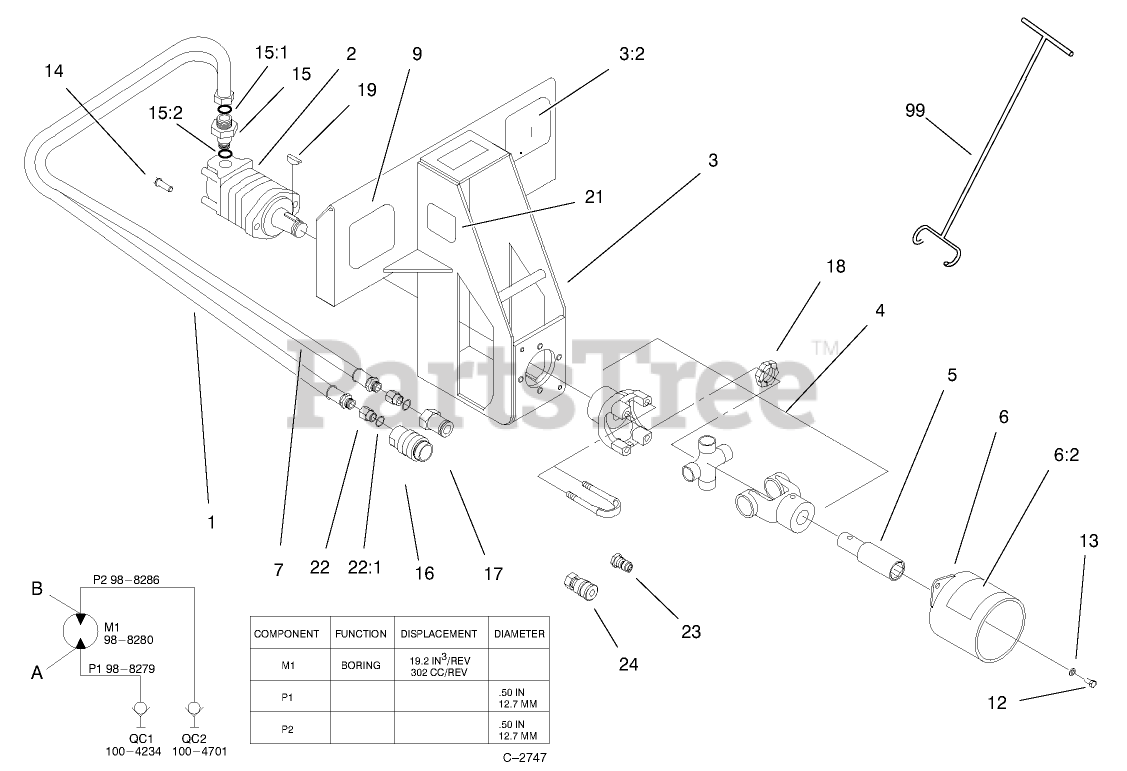

BORE DRIVE HEAD ASSEMBLY Parts Diagram

  • Title
1

Toro 98-8286

HOSE - HYDRAULIC

$

$

Not available

2

Toro 98-8280

MOTOR-HYDRAULIC

$6653.99

$

Usually ships in 3-6 days

0

3

Toro 99-4305

FRAME ASM

$5606.99

$

Usually ships in 3-6 days

0

3:2

Toro 99-9945

DECAL-WARNING

$61.99

$

Usually ships in 3-6 days

0

4

Toro 98-8282

JOINT - UNIVERSAL

$

$

Not available

5

Toro 98-8283

COUPLER - SPLINE

$484.99

$

Usually ships in 3-6 days

0

6

Toro 99-4304

SHIELD ASM
(Superseded to 104-1895)

$387.99

$

Usually ships in 3-6 days

0

6:2

Toro 99-9945

DECAL-WARNING

$61.99

$

Usually ships in 3-6 days

0

7

Toro 98-8279

HOSE - HYDRAULIC

$

$

Not available

9

Toro 100-4762

DECAL-DINGO

$16.99

$

Usually ships in 3-6 days

0

12

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

13

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 15

0

14

Toro 98-9063

SCREW

$

$

Not available

15

Toro 340-6

FITTING-STRAIGHT

$20.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

15:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

16

Toro 100-4234

COUPLER-FACE, FLUSH
(Superseded to 104-6134)

$267.99

$

Usually ships in 3-6 days

0

16:1

Toro 100-6119

KIT-SEAL

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

17

Toro 100-4701

NIPPLE-CONNECT, PRESSURE

$282.99

$

Usually ships in 3-6 days

0

17:1

Toro 100-6120

SEAL KIT

Note: Not illustrated

$107.99

$

Usually ships in 3-6 days

0

18

Toro 99-4301

NUT - SHAFT

$

$

Not available

19

Toro 99-4302

KEY - SHAFT

$

$

Not available

21

Toro 98-3269

DECAL

$43.99

$

Usually ships in 3-6 days

0

22

Toro 100-4617

ADAPTER-HYD

$21.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

23

Toro 100-4702

DISCONNECT-QUICK, MALE

$

$

Not available

24

Toro 100-4703

DISCONNECT-QUICK, FEMALE

$

$

Not available

24:1

Toro 100-4165

SEAL KIT

Note: Not illustrated

$

$

Not available

99

Toro 98-9919

ROD GUIDE TOOL

$684.99

$

Usually ships in 3-6 days

0
