22415 - Toro Rotary Broom for Dingo Compact Utility Loader (SN: 200000001 - 200999999) (2000) ROTOR ASSEMBLY Parts Diagram

Rotary Broom for Dingo Compact Utility Loader

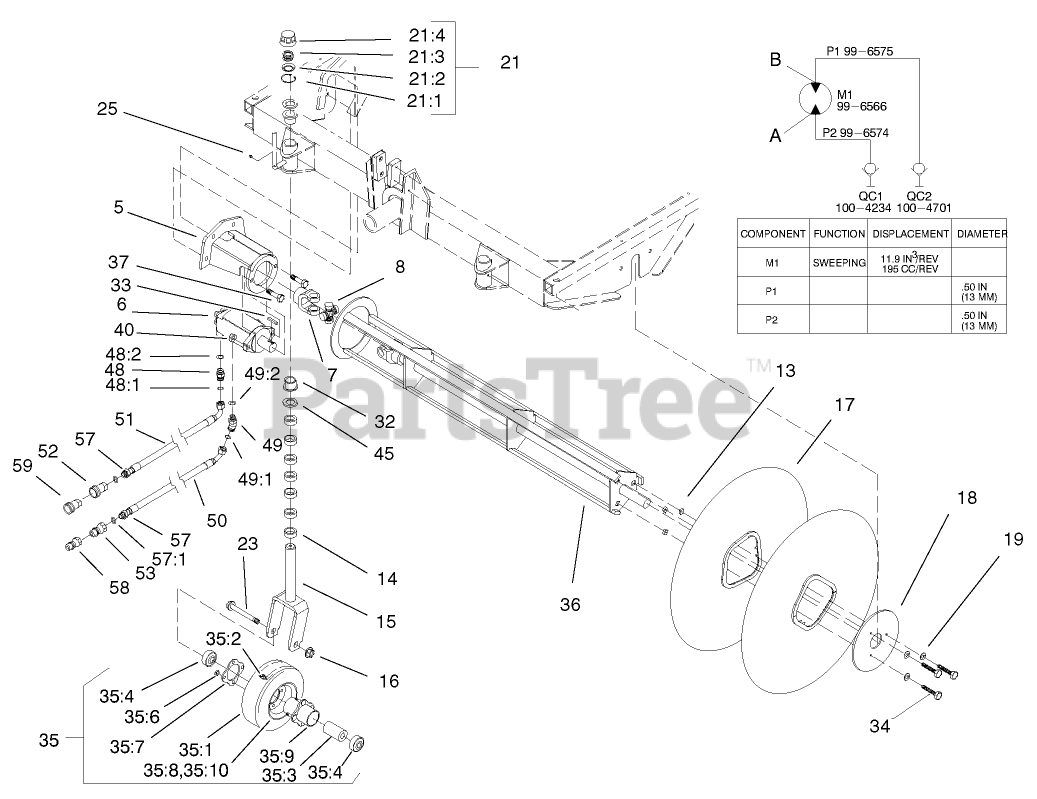

ROTOR ASSEMBLY Parts Diagram

  • Title

5

Toro 99-6564

HYD MOTOR MOUNT ASM
(Superseded to 127-6518-03)

$685.99

$

Usually ships in 3-6 days

0

6

Toro 99-6566

MOTOR-HYDRAULIC

$

$

Not available

7

Toro 99-6569

YOKE-KEYED

$

$

Not available

8

Toro 99-6570

CROSS-YOKE
(Superseded to 54-9180)

$65.99

$

Usually ships in 3-6 days

0

13

Toro 99-6585

RETAINER-NUT

$

$

Not available

14

Toro 63-0070

SPACER

$2.49

$

In Stock, Qty 10

0

15

Toro 93-8431-01

CASTOR FORK ASM

$319.99

$

Usually ships in 3-6 days

0

16

Toro 3296-53

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 94-7372

ELEMENT-BRUSH, POLY

$48.99

$

Usually ships in 3-6 days

0

17

Toro 95-5942

ELEMENT-BRUSH, WIRE (OPTIONAL)

$68.99

$

Usually ships in 3-6 days

0

18

Toro 99-6563

PLATE-RETAINER, BRUSH

$

$

Not available

19

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 15

0

21

Toro 92-8862

HOC CAP ASM

$75.99

$

Usually ships in 3-6 days

0

21:1

Toro 92-5581

RING-RETAINING

$3.49

$

In Stock, Qty 11

0

21:2

Toro 92-5583

WASHER-CAP

$9.49

$

In Stock, only 1 left!

0

21:3

Toro 92-5584

SPRING-COMPRESSION

$18.99

$

In Stock, only 1 left!

0

21:4

Toro 92-8861

CAP-HOC

$47.99

$

In Stock, only 3 left!

0

23

Toro 327-24

SCREW-HH

$9.49

$

In Stock, only 3 left!

0

25

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

32

Toro 28-9290

Bushing
(Superseded to 94-1291)

$11.99

$

In Stock, Qty 14

0

33

Toro 99-6567

KEY-STEP

$

$

Not available

34

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

35

Toro 93-9938

WHEEL ASM

$211.99

$

Usually ships in 3-6 days

0

35:2

Toro 68-8950

TUBE-INNER (W/VALVE)

$29.99

$

Usually ships in 3-6 days

0

35:3

Toro 93-4241

SPACER-BEARING, INNER

$32.99

$

Usually ships in 3-6 days

0

35:4

Toro 93-4237

BEARING
(Superseded to 120-5378)

$16.99

$

In Stock, Qty 15

0

35:6

Toro 32128-16

NUT-HHF

$0.99

$

In Stock, only 3 left!

0

35:7

Toro 93-4242

PLATE

$13.99

$

Usually ships in 3-6 days

0

35:8

Toro 93-4239

RIM-WHEEL, HALF

$31.99

$

Usually ships in 3-6 days

0

35:9

Toro 93-5980

HUB

$81.99

$

Usually ships in 3-6 days

0

35:10

Toro 95-2741

RIM-WHEEL, HALF

$26.99

$

Usually ships in 3-6 days

0

35:1

Toro 93-9939

TIRE

$47.99

$

Usually ships in 3-6 days

0

36

Toro 99-6562

ROTOR FRAME ASM

$

$

Not available

37

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 17

0

40

Toro 328-8

SCREW-HH

$14.99

$

Usually ships in 3-6 days

0

45

Toro 99-6582

WASHER

$

$

Not available

48

Toro 340-7

FITTING-STRAIGHT

$14.99

$

In Stock, Qty 13

0

48:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

48:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

49

Toro 340-14

FITTING-HYD-45

$51.99

$

Usually ships in 3-6 days

0

49:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

49:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

50

Toro 99-6575

HOSE ASM

$

$

Not available

51

Toro 99-6574

HOSE ASM

$

$

Not available

52

Toro 100-4234

COUPLER-FACE, FLUSH
(Superseded to 104-6134)

$267.99

$

Usually ships in 3-6 days

0

52:1

Toro 100-6119

KIT-SEAL

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

53

Toro 100-4701

NIPPLE-CONNECT, PRESSURE

$282.99

$

Usually ships in 3-6 days

0

53:1

Toro 100-6120

SEAL KIT

Note: Not illustrated

$107.99

$

Usually ships in 3-6 days

0

57

Toro 100-4617

ADAPTER-HYD

$21.99

$

Usually ships in 3-6 days

0

57:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

58

Toro 100-4702

DISCONNECT-QUICK, MALE

$

$

Not available

59

Toro 100-4703

DISCONNECT-QUICK, FEMALE

$

$

Not available

59:1

Toro 100-4165

SEAL KIT

Note: Not illustrated

$

$

Not available
