22415 - Toro Rotary Broom for Dingo Compact Utility Loader (SN: 200000001 - 200999999) (2000) MAIN MOUNT ASSEMBLY Parts Diagram

Rotary Broom for Dingo Compact Utility Loader

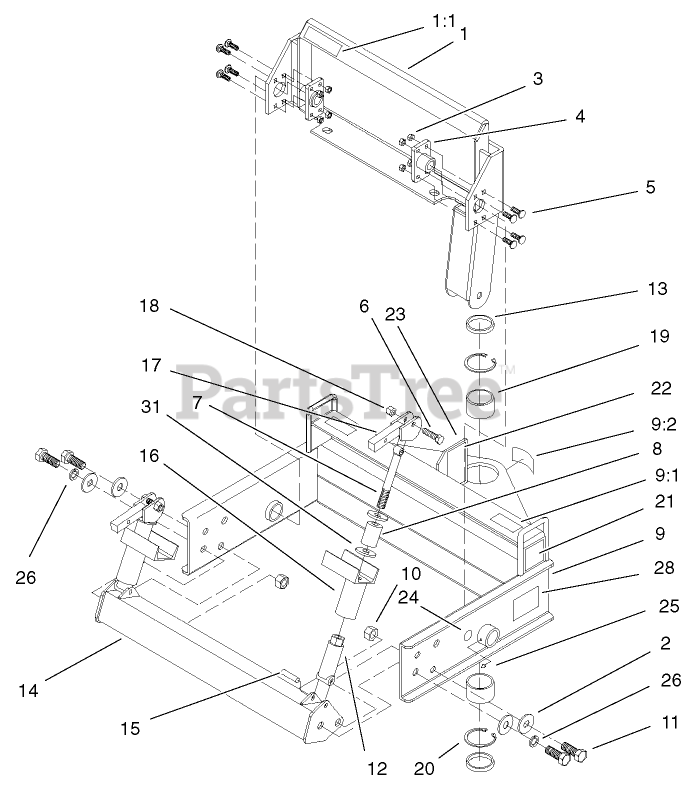

MAIN MOUNT ASSEMBLY Parts Diagram

  • Title
1

Toro 99-6576

Q-TACH FRAME ASM

$1908.99

$

Usually ships in 3-6 days

0

1:1

Toro 100-4654

DECAL-WARNING

$

$

Not available

2

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

3

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

4

Toro 99-6580

PIVOT RETAINER ASM

$

$

Not available

5

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

6

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 17

0

7

Toro 99-6590

ADJUSTMENT SCREW ASM

$

$

Not available

8

Toro 99-6556

ABSORBER-SHOCK

$

$

Not available

9

Toro 100-4791

MAIN MOUNT FRAME ASM

$

$

Not available

9:1

Toro 100-4650

DECAL-WARNING

$26.99

$

Usually ships in 3-6 days

0

9:2

Toro 100-4652

DECAL-WARNING

$26.99

$

Usually ships in 3-6 days

0

10

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

11

Toro 328-26

SCREW-HH

$61.99

$

Usually ships in 3-6 days

0

12

Toro 99-6592

ARM CLAMP SWIVEL ASM

$

$

Not available

13

$

$

Not available

14

Toro 99-6579

MOUNT CROSSMEMBER ASM

$667.99

$

Usually ships in 3-6 days

0

15

Toro 32121-122

PIN-ROLL

$4.49

$

Usually ships in 3-6 days

0

16

Toro 99-6591

ARM CLAMP ASM

$

$

Not available

17

Toro 99-6589

LOCK LEVER ASM

$

$

Not available

18

Toro 32146-13

NUT-HEX

$4.49

$

In Stock, only 4 left!

0

19

Toro 95-5127

BUSHING

$

$

Not available

20

Toro 99-6593

SNAP RING

$

$

Not available

21

Toro 93-9084

DECAL-POINT, LIFT

$9.49

$

Usually ships in 3-6 days

0

22

Toro 100-4661

DECAL-HEIGHT, RIGHT

$

$

Not available

23

Toro 100-4660

DECAL-HEIGHT, LEFT

$

$

Not available

24

Toro 58-6520

DECAL-GREASE

$3.49

$

In Stock, only 3 left!

0

25

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

26

Toro 3253-9

WASHER-LOCK

$1.49

$

In Stock, only 3 left!

0

28

Toro 99-4349

DECAL-LOGO, DINGO

$

$

Not available

31

Toro 3256-8

WASHER-FLAT

$3.99

$

In Stock, Qty 15

0
