22415 - Toro Rotary Broom for Dingo Compact Utility Loader (SN: 200000001 - 200999999) (2000) HEAD ASSEMBLY Parts Diagram

Rotary Broom for Dingo Compact Utility Loader

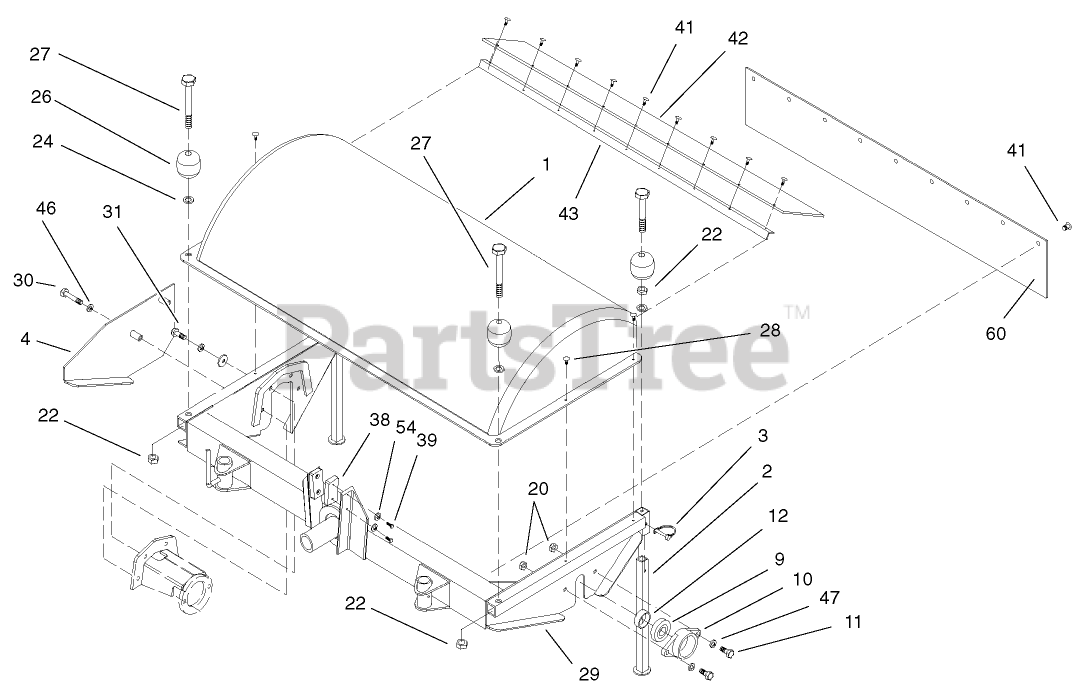

HEAD ASSEMBLY Parts Diagram

  • Title
1

Toro 99-6555

COVER-BROOM

$2258.99

$

Usually ships in 3-6 days

0

2

Toro 99-6553

STAND-HEAD, BROOM

$

$

Not available

3

Toro 99-6584

PIN-LYNCH

$

$

Not available

4

Toro 99-6554

PLATE-GUARD, MOTOR

$

$

Not available

9

Toro 99-6571

BEARING

$200.99

$

Usually ships in 3-6 days

0

10

Toro 99-6595

HOUSING-BEARING

$144.99

$

Usually ships in 3-6 days

0

11

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

12

Toro 99-6594

COLLAR-LOCKING

$155.99

$

Usually ships in 3-6 days

0

20

Toro 32146-13

NUT-HEX

$4.49

$

In Stock, only 4 left!

0

22

Toro 3218-7

NUT-JAM

$5.49

$

Usually ships in 3-6 days

0

24

Toro 99-6583

WASHER

$

$

Not available

26

Toro 99-9975

ROLLER
(Superseded to 115-3366)

$118.99

$

Usually ships in 3-6 days

0

27

Toro 328-22

SCREW-HH

$

$

Not available

28

Toro 94-8663

SCREW

$0.99

$

Usually ships in 3-6 days

0

29

Toro 104-1876

BROOM HEAD FRAME ASM

$

$

Not available

30

Toro 325-12

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

31

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

38

Toro 86-5350

BUMPER-RUBBER

$67.99

$

Usually ships in 3-6 days

0

39

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

41

Toro 3269-11

RIVET-POP

$1.49

$

Usually ships in 3-6 days

0

42

Toro 99-6560

BELTING-RUBBER

$

$

Not available

43

Toro 99-6587

PLATE-MOUNT, GUARD

$

$

Not available

46

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

47

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

54

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

60

Toro 104-1877

FLAP-REAR

$

$

Not available
