22415 - Toro Rotary Broom for Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) PIVOT ASSEMBLY Parts Diagram

Rotary Broom for Dingo Compact Utility Loader

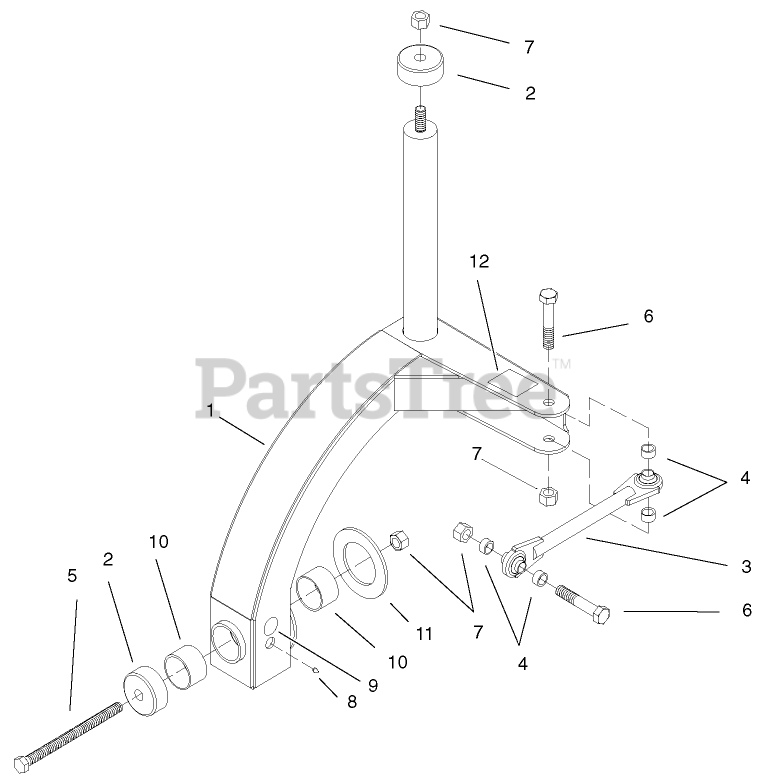

PIVOT ASSEMBLY Parts Diagram

  • Title
1

Toro 99-6551

Pivot Arm Frame (Incl. Ref. #12)

$

$

Not available

2

Toro 95-3202

Cap-Pivot
(Superseded to 95-3202-01)

$

$

Not available

3

Toro 99-6561

LINK-PIVOT

$

$

Not available

4

Toro 99-6565

SPACER-LINK, PIVOT

$

$

Not available

5

Toro 99-6581

SCREW-HH

$

$

Not available

6

Toro 328-7

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

7

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

8

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

9

Toro 58-6520

DECAL-GREASE

$3.49

$

In Stock, only 3 left!

0

10

Toro 95-5127

BUSHING

$

$

Not available

11

Toro 95-3204

WASHER-PIVOT

$

$

Not available

12

Toro 99-1699

DECAL - WARNING

$

$

Not available
