22414 - Toro 48" Hydraulic Blade for Dingo Compact Utility Loader (SN: 404000000 - 411899999) Hydraulic Cylinder Assembly No. 98-9942 Parts Diagram

48" Hydraulic Blade for Dingo Compact Utility Loader

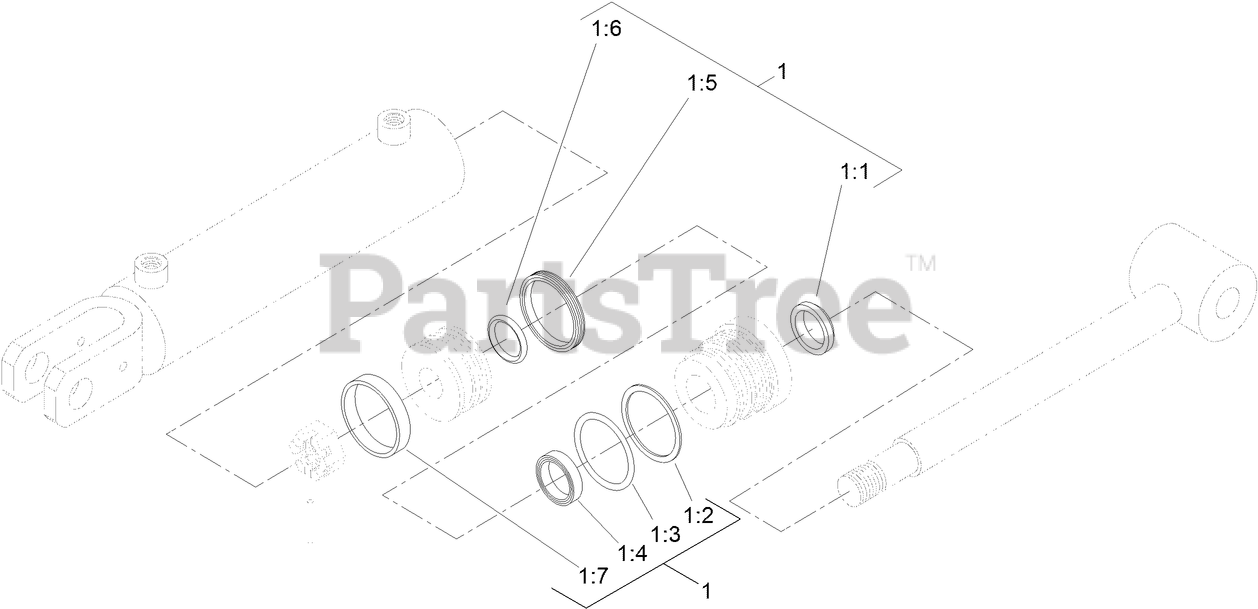

Hydraulic Cylinder Assembly No. 98-9942 Parts Diagram

  • Title
1

Toro 99-1352

KIT-SEAL

$307.99

$

Usually ships in 3-6 days

0

1:1

SEAL-Shaft

Note: Not serviced separately

$

$

Not available

1:2

Ring-Back Up

Note: Not serviced separately

$

$

Not available

1:3

O-RING

Note: Not serviced separately

$

$

Not available

1:4

SEAL

Note: Not serviced separately

$

$

Not available

1:5

SEAL

Note: Not serviced separately

$

$

Not available

1:6

O-RING

Note: Not serviced separately

$

$

Not available

1:7

WIPER

Note: Not serviced separately

$

$

Not available
