22412 - Toro Backhoe for Dingo Compact Utility Loader (SN: 200000001 - 200999999) (2000) MISCELLANEOUS ASSEMBLY Parts Diagram

Backhoe for Dingo Compact Utility Loader

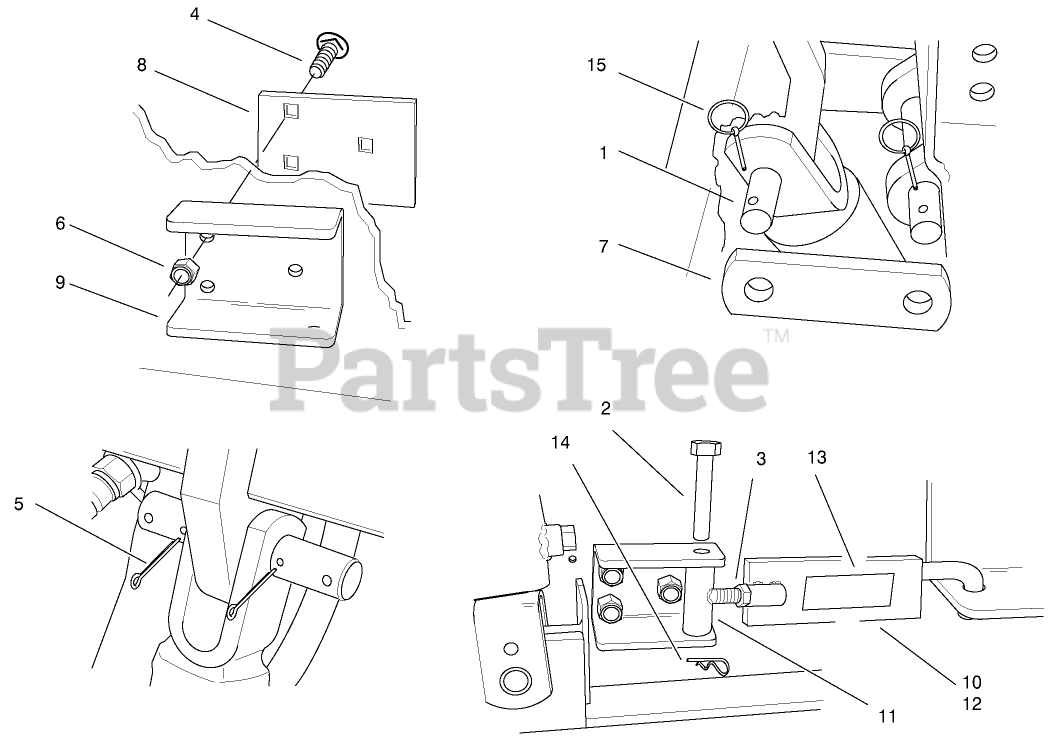

MISCELLANEOUS ASSEMBLY Parts Diagram

  • Title

1

Toro 100-7177

Pin-Cylinder Lock
(Superseded to 100-7243)

$128.99

$

Usually ships in 3-6 days

0

2

Toro 283-78

PIN-CLEVIS

$10.99

$

Usually ships in 3-6 days

0

3

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 12

0

4

Toro 3233-26

SCREW-CARR, SHORT NECK

$2.99

$

Usually ships in 3-6 days

0

5

Toro 3272-33

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

6

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 100-7176

Strap-Lock
(Superseded to 100-7176-01)

$

$

Not available

8

Toro 100-4116

Plate-Anchor
(Superseded to 100-4116-01)

$148.99

$

Usually ships in 3-6 days

0

9

Toro 100-4122

Bracket-Anchor
(Superseded to 100-4122-01)

$223.99

$

Usually ships in 3-6 days

0

10

Toro 100-4126

LH Clevis ASM
(Superseded to 100-4126-01)

$

$

Not available

11

Toro 100-4128

Tube ASM
(Superseded to 100-4128-01)

$

$

Not available

12

Toro 100-4130

RH Clevis ASM

$

$

Not available

13

Toro 100-4135

DECAL-TIEDOWN

$

$

Not available

14

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

15

Toro 283-72

PIN-LYNCH

$12.99

$

Usually ships in 3-6 days

0
