22412 - Toro Backhoe for Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) CYLINDER AND CONTROLS ASSEMBLY Parts Diagram

Backhoe for Dingo Compact Utility Loader

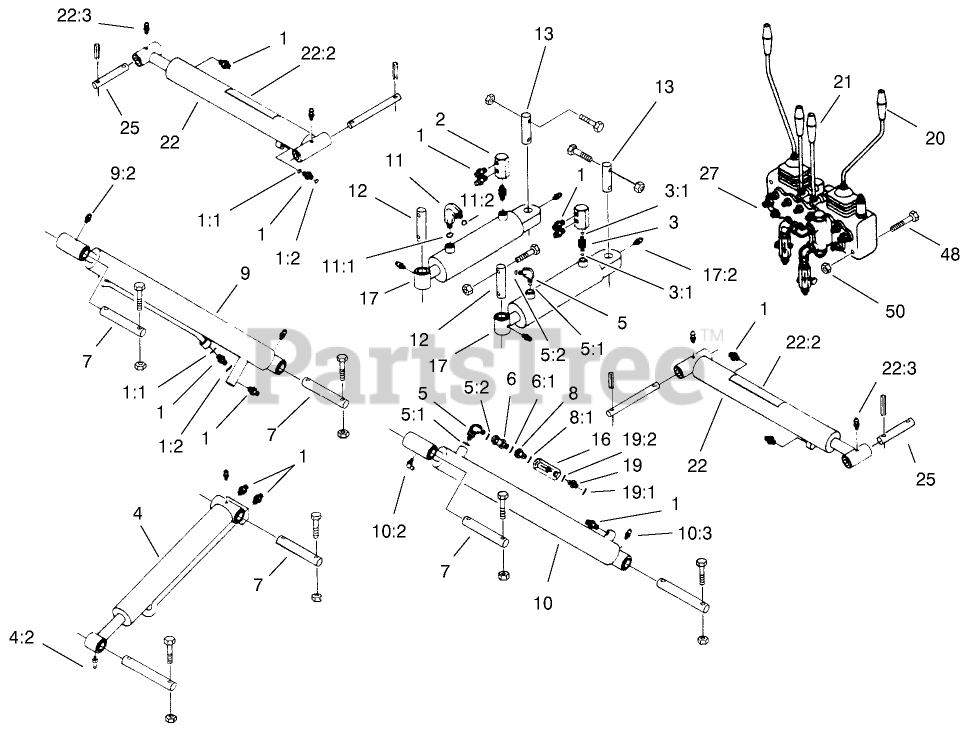

CYLINDER AND CONTROLS ASSEMBLY Parts Diagram

  • Title

1

Toro 340-92

FITTING-STRAIGHT

$13.99

$

Usually ships in 3-6 days

0

1:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

1:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

2

Toro 100-7178

FITTING-HEX

$

$

Not available

3

Toro 93-7597

FITTING
(Superseded to 94-8043)

$

$

Not available

3:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

4

Toro 100-7204

CYLINDER-HYD, BUCKET

$1895.99

$

Usually ships in 3-6 days

0

4:2

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

4:1

Toro 100-7220

SEAL KIT

$

$

Not available

5

Toro 340-132

FITTING-90 DEG

$27.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

5:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

6

Toro 100-7211

FITTING-SWIVEL, STRAIGHT

$

$

Not available

6:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

7

Toro 100-7172

PIN-BOOM

$122.99

$

In Stock, Qty 7

0

8

Toro 100-7216

FITTING-REDUCER

$

$

Not available

8:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

9

Toro 100-7202

CYLINDER-HYD, CROWD ARM
(Superseded to 108-5509)

$

$

Not available

9:2

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

9:1

Toro 100-7220

SEAL KIT

$

$

Not available

10

Toro 100-7203

CYLINDER-HYD, BOOM

$

$

Not available

10:2

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

10:3

Toro 302-60

FITTING-GREASE

$2.99

$

Usually ships in 3-6 days

0

10:1

Toro 100-7220

SEAL KIT

$

$

Not available

11

Toro 100-7213

FITTING-90 DEG
(Superseded to 100-7695)

$129.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

11:2

Toro 237-35

O-Ring
(Superseded to 237-21)

$0.99

$

In Stock, Qty 10

0

12

Toro 100-7173

PIN-SWIVEL, FRONT

$119.99

$

In Stock, only 2 left!

0

13

Toro 100-7174

PIN-SWIVEL, REAR

$95.99

$

In Stock, only 2 left!

0

16

Toro 98-9742

VALVE-CONTROL, FLOW

$230.99

$

Usually ships in 3-6 days

0

17

Toro 100-7201

CYLINDER-HYD, SWING

$

$

Not available

17:2

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

17:1

Toro 100-7221

SEAL KIT

$

$

Not available

19

Toro 340-1

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-35

O-Ring
(Superseded to 237-21)

$0.99

$

In Stock, Qty 10

0

19:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

20

Toro 100-7168

BENT HANDLE ASM

$

$

Not available

21

Toro 100-7206

STRAIGHT HANDLE ASM

$

$

Not available

22

Toro 100-7217

STABILIZER CYLINDER ASM

$

$

Not available

22:2

Toro 100-4136

DECAL-WARNING

$67.99

$

Usually ships in 3-6 days

0

22:3

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

22:1

Toro 100-7220

SEAL KIT

$

$

Not available

25

Toro 100-7186

PIN-CYLINDER, STABILIZER

$

$

Not available

27

Toro 100-7205

VALVE ASM

$9240.99

$

Usually ships in 3-6 days

0

27:1

Toro 100-7226

VALVE SEAL KIT

Note: Not illustrated (See Page 11 of this catalog)

$

$

Not available

27:2

Toro 100-7227

RELIEF VALVE KIT

Note: Not illustrated (See Page 11 of this catalog)

$

$

Not available

27:3

Toro 100-7228

CARTRIDGE-RELIEF

Note: Not illustrated (See Page 11 of this catalog)

$

$

Not available

27:4

Toro 100-7229

LEVER KIT

Note: Not illustrated (See Page 11 of this catalog)

$214.99

$

Usually ships in 3-6 days

0

27:5

Toro 100-7230

JOYSTICK KIT
(Superseded to 119-4622)

Note: Not illustrated (See Page 11 of this catalog)

$835.99

$

Usually ships in 3-6 days

0

27:6

Toro 100-7231

SCREW

Note: Not illustrated (See Page 11 of this catalog)

$

$

Not available

27:7

Toro 100-7232

WASHER

Note: Not illustrated (See Page 11 of this catalog)

$

$

Not available

27:8

Toro 100-8801

HIGH FORCE SPRING KIT

Note: Not illustrated (See Page 11 of this catalog)

$199.99

$

Usually ships in 3-6 days

0

27:9

Toro 100-8806

SCREW

$15.99

$

Usually ships in 3-6 days

0

48

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

50

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
