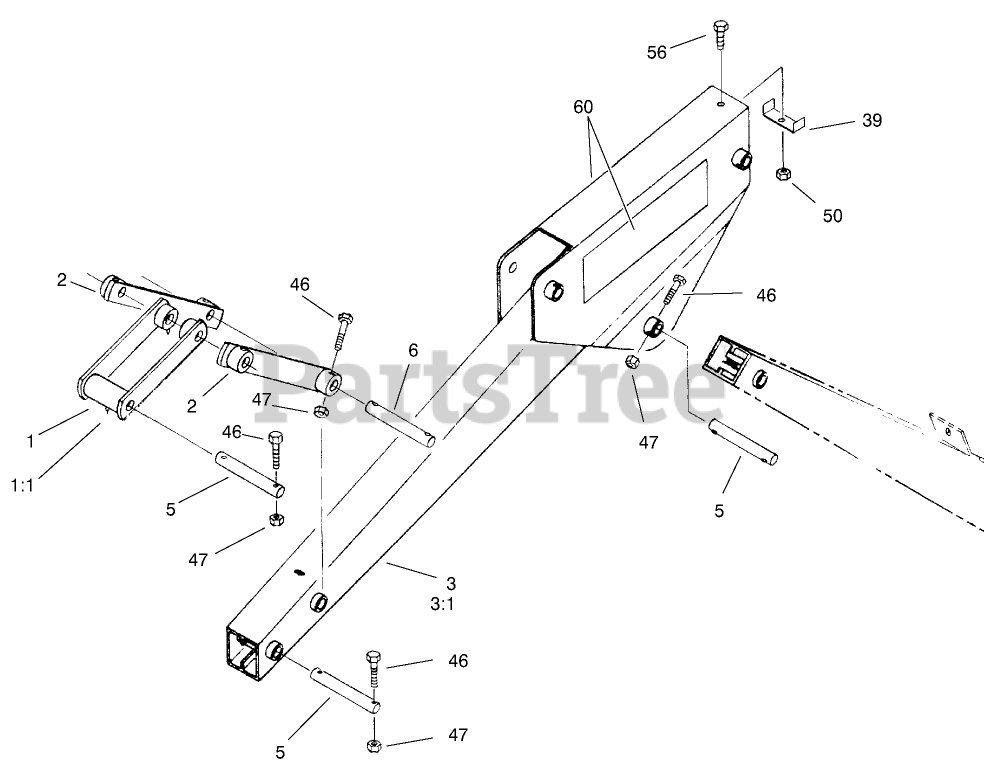

22412 - Toro Backhoe for Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) CROWD ARM AND LINKAGE ASSEMBLY Parts Diagram

Backhoe for Dingo Compact Utility Loader

CROWD ARM AND LINKAGE ASSEMBLY Parts Diagram

  • Title

1

Toro 100-7163

LINKAGE ASM

$

$

Not available

1:1

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

2

Toro 100-7160

LINKAGE STRAP ASM

$

$

Not available

3

Toro 100-7155

CROWD ARM ASM

$3976.99

$

Usually ships in 3-6 days

0

3:1

Toro 302-19

FITTING-GREASE

Note: Not illustrated

$2.49

$

In Stock, Qty 8

0

5

Toro 100-7170

PIN-BUCKET

$104.99

$

Usually ships in 3-6 days

0

6

Toro 100-7171

PIN-LINKAGE

$

$

Not available

39

Toro 100-7183

BRACKET-HOSE

$

$

Not available

50

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

46

Toro 321-33

SCREW-HH

$8.99

$

In Stock, only 1 left!

0

47

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

56

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

60

Toro 98-4679

DECAL - FRONT

$48.99

$

Usually ships in 3-6 days

0
