224110x8F - Scotts 22" Walk-Behind Mower (2005) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

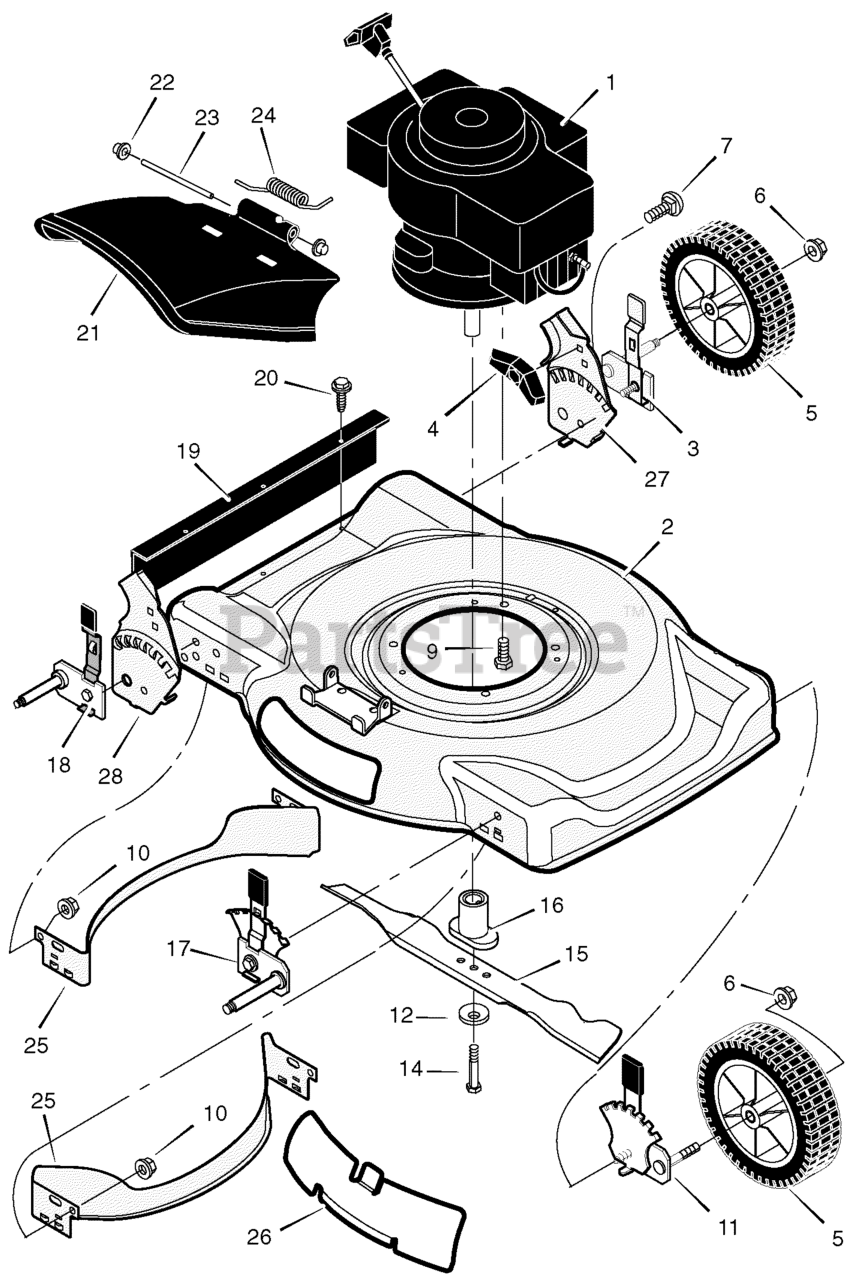

Mower Housing Assembly Parts Diagram

  • Title

1

Engine *

$

$

Not available

2

Murray 776022

Housing

$

$

Currently unavailable

3

Murray 1102109

Height Adjuster, Left Rear (8" Wheels)

$

$

Currently unavailable

4

Murray 71495

Knob

$

$

Not available

5

Murray 672060

Wheel and Tire

$

$

Not available

6

Murray 015X84

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 002X81

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

9

Murray 0025X6

Bolt, Engine
(Superseded to 0025X6MA)

$5.49

$

Usually ships in 2-12 days

0

10

Murray 015X68

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Murray 1102105

Height Adjuster, Left Front (8" Wheels)

$

$

Currently unavailable

12

Murray 1101989

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

14

Murray 01X142

Bolt, Hex

$8.49

$

In Stock, only 2 left!

0

15

Murray 1101823E701

Blade

$19.99

$

In Stock, only 1 left!

0

16

Murray 1101825

Adapter, Blade

$11.99

$

In Stock, only 1 left!

0

17

Murray 1102104

Height Adjuster, Right Front (8" Wheels)

$

$

Currently unavailable

18

Murray 1102108

Height Adjuster, Right Rear (8" Wheels)

$

$

Currently unavailable

19

Murray 672738

Guard, Rear

$32.99

$

Usually ships in 2-12 days

0

20

Murray 26X245

Screw

$4.49

$

In Stock, Qty 6

0

21

Murray 672421

Deflector, Chute

$

$

Not available

22

Murray 028X42

Push-On Cap

$3.99

$

Usually ships in 2-12 days

0

23

Murray 215X11 Z

Pin, Pivot

$

$

Currently unavailable

24

Murray 0166X5

Spring

$3.99

$

Usually ships in 2-12 days

0

25

Murray 672744E701

Baffle Optional Accessory

$49.99

$

Usually ships in 2-12 days

0

26

Murray 672422 Z

Plate, Mulcher

Note: (Optional Accessory)

$

$

Currently unavailable

27

Murray 1101303E700

Bracket, Left Handle

$

$

Currently unavailable

28

Murray 1101302E700

Bracket, Right Handle

$

$

Currently unavailable

--

Murray F-050402L

Book, Instruction

$

$

Currently unavailable
