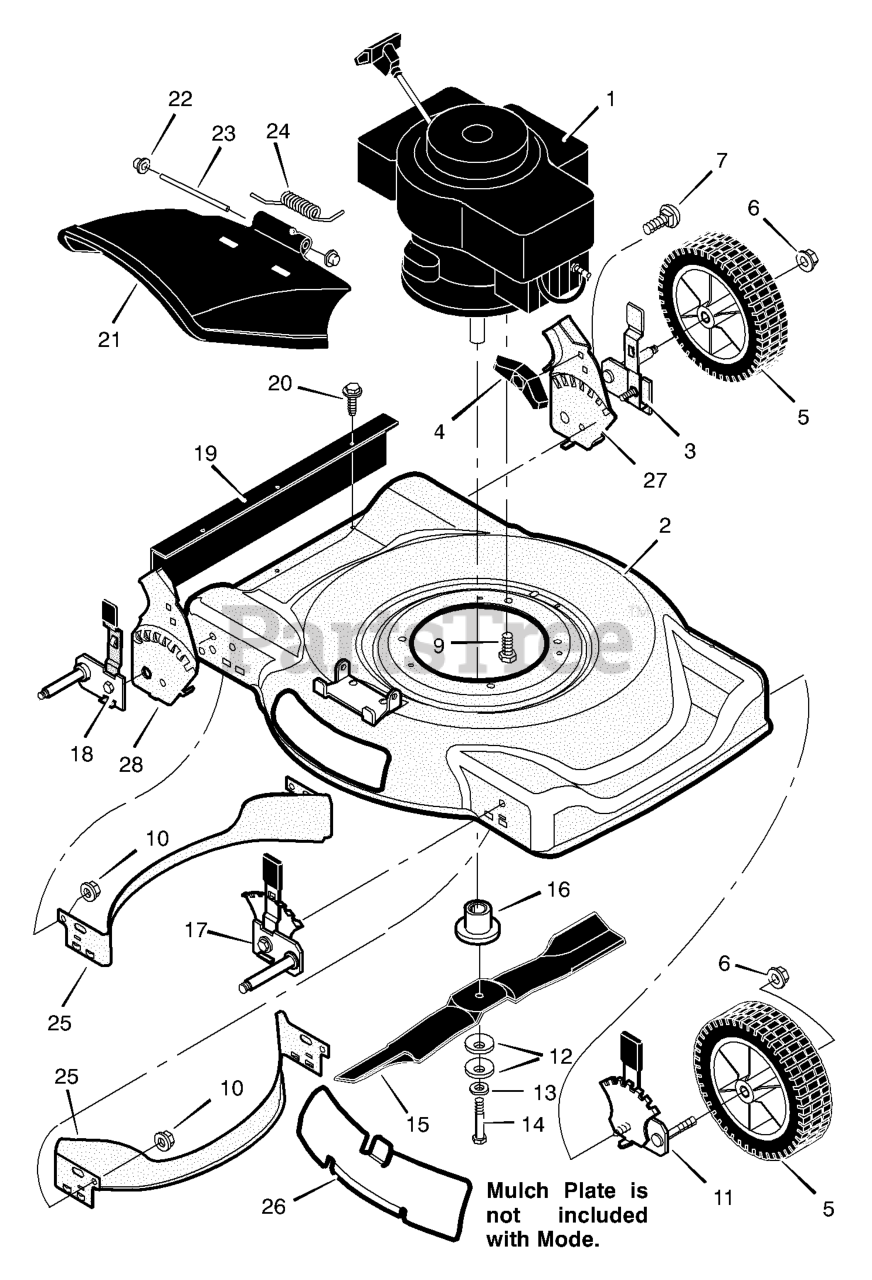

224110x31A - Scotts 22" Walk-Behind Mower (2003) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

Mower Housing Assembly Parts Diagram

  • Title
1

Engine

$

$

Not available

2

Murray 776022MA

Housing

$

$

Not available

3

Murray 672641MA

Height Adjuster, Left Rear

$72.99

$

Usually ships in 2-12 days

0

4

$

$

Not available

5

Murray 672060MA

Wheel and Tire
(Superseded to 336545MA)

$33.99

$

Usually ships in 2-12 days

0

6

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

9

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

10

Murray 015X68MA

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Murray 672601MA

Height Adjuster, Left Front

$87.99

$

Usually ships in 2-12 days

0

12

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

13

$4.49

$

Usually ships in 2-12 days

0

14

Murray 01X142MA

Bolt, Hex

$8.49

$

In Stock, only 2 left!

0

$

$

Not available

16

Murray 071056MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

17

Murray 672600MA

Height Adjuster, Right Front

$82.99

$

In Stock, only 1 left!

0

18

Murray 672640MA

Height Adjuster, Right Rear

$70.99

$

Usually ships in 2-12 days

0

19

Murray 672738MA

Guard, Rear

Note: (Included with Ref. No. 2)

$32.99

$

Usually ships in 2-12 days

0

20

Murray 26X245MA

Screw

Note: (Included with Ref. No. 2)

$4.49

$

In Stock, Qty 6

0

21

Murray 672421MA

Deflector, Chute

Note: (Included with Ref. No. 2)

$38.99

$

Usually ships in 2-12 days

0

22

Murray 028X42MA

Push-On Cap

Note: (Included with Ref. No. 2)

$3.99

$

Usually ships in 2-12 days

0

23

Murray 215X11 Z

Pin, Pivot

Note: (Included with Ref. No. 2)

$

$

Currently unavailable

24

Murray 0166X5MA

Spring

Note: (Included with Ref. No. 2)

$3.99

$

Usually ships in 2-12 days

0

25

Murray 672744E701MA

Baffle

Note: (Included with Ref. No. 2)

$49.99

$

Usually ships in 2-12 days

0

26

Murray 672422 Z

Plate,

Note: (Optional Mulcher)

$

$

Currently unavailable

27

Murray 1101303E700

Bracket, Left Handle

$

$

Currently unavailable

28

Murray 1101302E700

Bracket, Right Handle

$

$

Currently unavailable

--

Murray F-030435L

Book, Instruction

$

$

Currently unavailable
