22411 - Toro Four-In-One Bucket for Dingo Compact Utility Loader (SN: 200000201 - 200999999) (2000) 4 IN 1 BUCKET ASSEMBLY Parts Diagram

Four-In-One Bucket for Dingo Compact Utility Loader

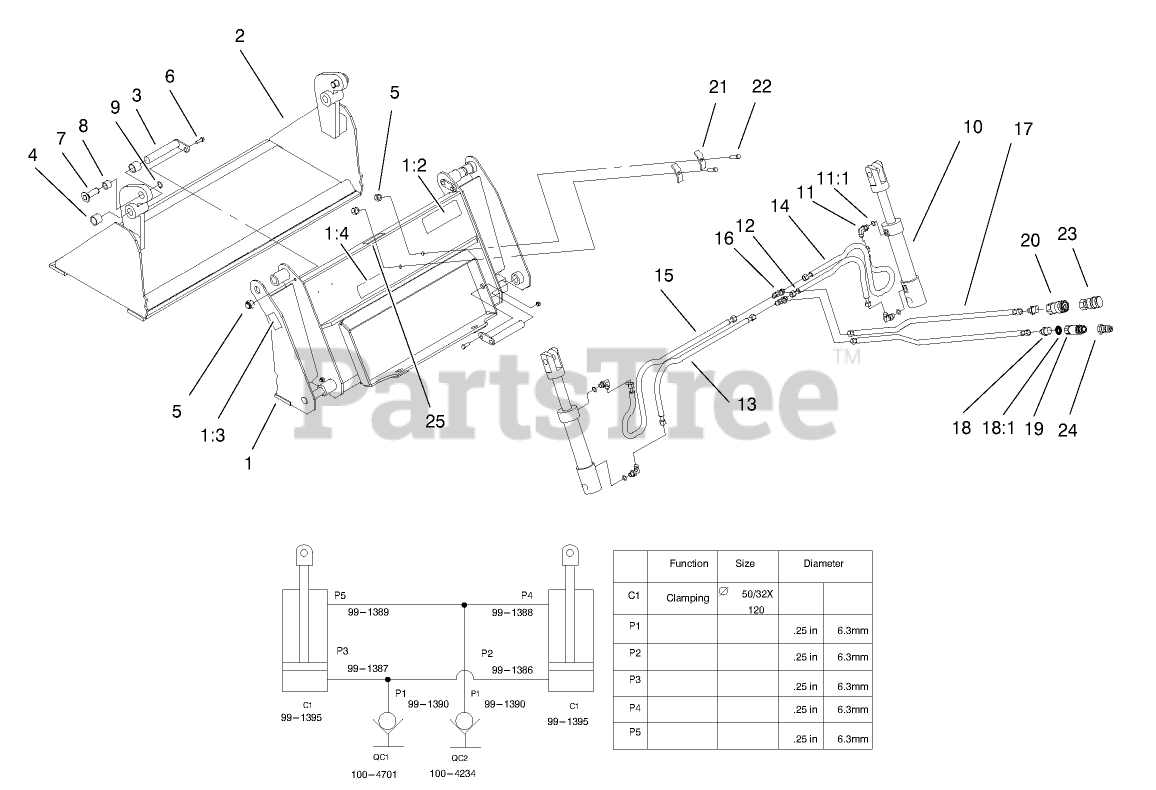

4 IN 1 BUCKET ASSEMBLY Parts Diagram

  • Title
1

Toro 98-2706

Base ASM

$5583.99

$

Usually ships in 3-6 days

0

1:2

Toro 100-4648

DECAL-WARNING

$37.99

$

Usually ships in 3-6 days

0

1:3

Toro 93-9367

DECAL-WARNING

$9.99

$

In Stock, only 1 left!

0

1:4

Toro 100-4689

DECAL-LOAD RATING

$30.99

$

Usually ships in 3-6 days

0

2

$6620.99

$

Usually ships in 3-6 days

0

3

$

$

Not available

4

Toro 99-1363

BUSHING

$

$

Not available

5

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

6

Toro 33104-025

SCREW-HHF

$7.49

$

In Stock, only 2 left!

0

7

$

$

Not available

8

Toro 99-1364

BUSHING

$50.99

$

Usually ships in 3-6 days

0

9

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, only 2 left!

0

10

Toro 99-1395

CYLINDER - HYDRAULIC

$2604.99

$

Usually ships in 3-6 days

0

11

Toro 353-374

FITTING-ELBOW, 90 DEG
(Superseded to 103-1802)

$22.99

$

In Stock, only 1 left!

0

11:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

12

Toro 99-1386

HOSE ASM-HYDRAULIC

$

$

Not available

13

Toro 99-1387

HOSE ASM-HYDRAULIC

$

$

Not available

14

Toro 99-1388

HOSE ASM-HYDRAULIC

$

$

Not available

15

Toro 99-1389

HOSE ASM-HYDRAULIC

$

$

Not available

16

Toro 99-1391

ADAPTER - TEE

$

$

Not available

17

Toro 99-1390

HOSE ASM-HYDRAULIC

$

$

Not available

18

Toro 100-4749

ADAPTER-HYD

$18.99

$

Usually ships in 3-6 days

0

18:1

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 9

0

19

Toro 100-4701

NIPPLE-CONNECT, PRESSURE

$274.99

$

Usually ships in 3-6 days

0

19:1

Toro 100-6120

SEAL KIT

Note: Not illustrated

$104.99

$

Usually ships in 3-6 days

0

20

Toro 100-4234

COUPLER-FACE, FLUSH
(Superseded to 104-6134)

$259.99

$

Usually ships in 3-6 days

0

20:1

Toro 100-6119

KIT-SEAL

Note: Not illustrated

$107.99

$

Usually ships in 3-6 days

0

21

Toro 99-1360

CLAMP - HOSE

$

$

Not available

22

Toro 33104-040

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

23

Toro 100-4703

DISCONNECT-QUICK, FEMALE

$172.99

$

Usually ships in 3-6 days

0

23:1

Toro 100-4165

SEAL KIT

Note: Not illustrated

$

$

Not available

24

Toro 100-4702

DISCONNECT-QUICK, MALE

$

$

Not available

25

Toro 98-4683

DECAL-ATTACHMENT, DINGO

$

$

Not available
