22400 - Toro Auger Head for Dingo Compact Utility Loader (SN: 200000001 - 200999999) (2000) AUGER HEAD ASSEMBLY Parts Diagram

Auger Head for Dingo Compact Utility Loader

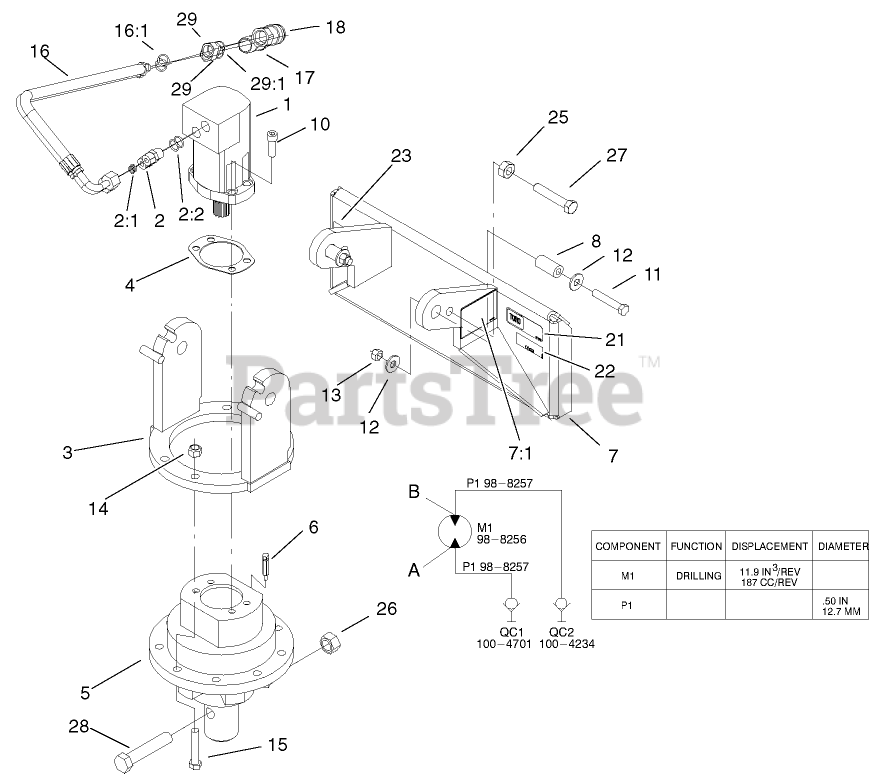

AUGER HEAD ASSEMBLY Parts Diagram

  • Title

1

Toro 98-8256

HYDRAULIC MOTOR ASM

$3147.99

$

Usually ships in 3-6 days

0

2

Toro 340-6

FITTING-STRAIGHT

$20.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

2:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

3

Toro 98-8258

HOUSING - DRIVE

$

$

Not available

4

Toro 99-5032

GASKET

$40.99

$

Usually ships in 3-6 days

0

5

Toro 98-8260

DRIVE-GEAR, PLANETARY

$13271.99

$

Usually ships in 3-6 days

0

6

Toro 98-8261

BREATHER ASM

$

$

Not available

7

Toro 98-2705

AUGER DRIVE MOUNT ASM

$

$

Not available

7:1

Toro 99-9942

DECAL-WARNING

$

$

Not available

8

Toro 99-1406

PIN - PIVOT

$29.99

$

Usually ships in 3-6 days

0

10

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 10

0

11

Toro 325-12

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

12

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 99-4371

NUT-LOCK

$5.49

$

Usually ships in 3-6 days

0

15

Toro 326-1

SCREW-HH

$

$

Not available

16

Toro 98-8257

HOSE - HYDRAULIC

$

$

Not available

16:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

17

Toro 100-4701

NIPPLE-CONNECT, PRESSURE

$282.99

$

Usually ships in 3-6 days

0

17:1

Toro 100-6120

SEAL KIT

Note: Not illustrated

$107.99

$

Usually ships in 3-6 days

0

18

Toro 100-4234

COUPLER-FACE, FLUSH
(Superseded to 104-6134)

$267.99

$

Usually ships in 3-6 days

0

18:1

Toro 100-6119

KIT-SEAL

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

21

Toro 98-4683

DECAL-ATTACHMENT, DINGO

$

$

Not available

22

Toro 99-9943

DECAL-CE INFO

$

$

Not available

23

Toro 98-3269

DECAL

$43.99

$

Usually ships in 3-6 days

0

25

Toro 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

26

Toro 3217-15

NUT-HEX

$16.99

$

Usually ships in 3-6 days

0

27

Toro 327-14

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

28

Toro 98-9062

SCREW

$20.99

$

Usually ships in 3-6 days

0

29

Toro 100-4617

ADAPTER-HYD

$21.99

$

Usually ships in 3-6 days

0

29:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0
