22400 - Toro Auger Head for Dingo Compact Utility Loader (SN: 089000001 - 089000292) (1998) PLANETARY GEAR ASSEMBLY Parts Diagram

Auger Head for Dingo Compact Utility Loader

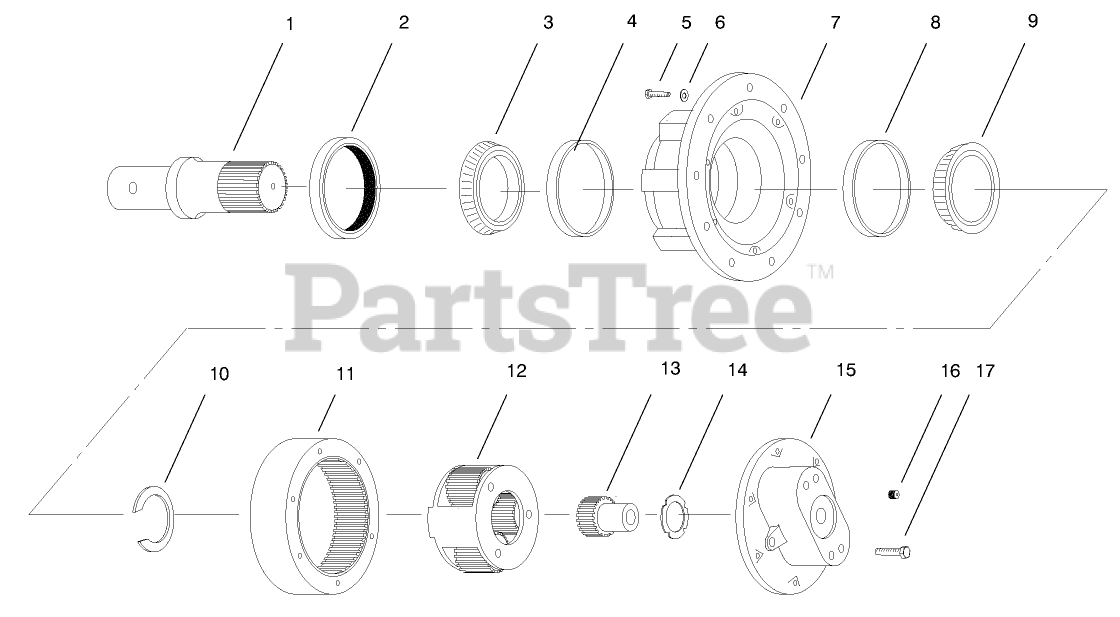

PLANETARY GEAR ASSEMBLY Parts Diagram

  • Title
1

Toro 98-8264

SHAFT - OUTPUT

$

$

Not available

2

$87.99

$

In Stock, only 1 left!

0

3

$

$

Not available

4

$178.99

$

Usually ships in 3-6 days

0

5

$

$

Not available

6

Toro 60-3910

WASHER

$

$

Not available

7

Toro 98-8265

HUB W/HOLES

$

$

Not available

9

$292.99

$

Usually ships in 3-6 days

0

10

Toro 62-6450

RETAINING RING KIT

$240.99

$

Usually ships in 3-6 days

0

11

Toro 98-8266

GEAR - RING

$2575.99

$

Usually ships in 3-6 days

0

12

Toro 98-8267

CARRIER ASM

$6255.99

$

Usually ships in 3-6 days

0

13

Toro 98-8268

GEAR - SUN

$1595.99

$

Usually ships in 3-6 days

0

14

Toro 60-3980

WASHER

$0.99

$

Usually ships in 3-6 days

0

15

Toro 98-8271

COVER

$

$

Not available

16

Toro 98-8269

PLUG - PIPE, MAGNETIC

$

$

Not available

17

$

$

Not available
