22370 (TX 1300) - Toro Dingo Compact Utility Loader (SN: 414487158 - 414487256) Console Assembly Parts Diagram

Dingo Compact Utility Loader

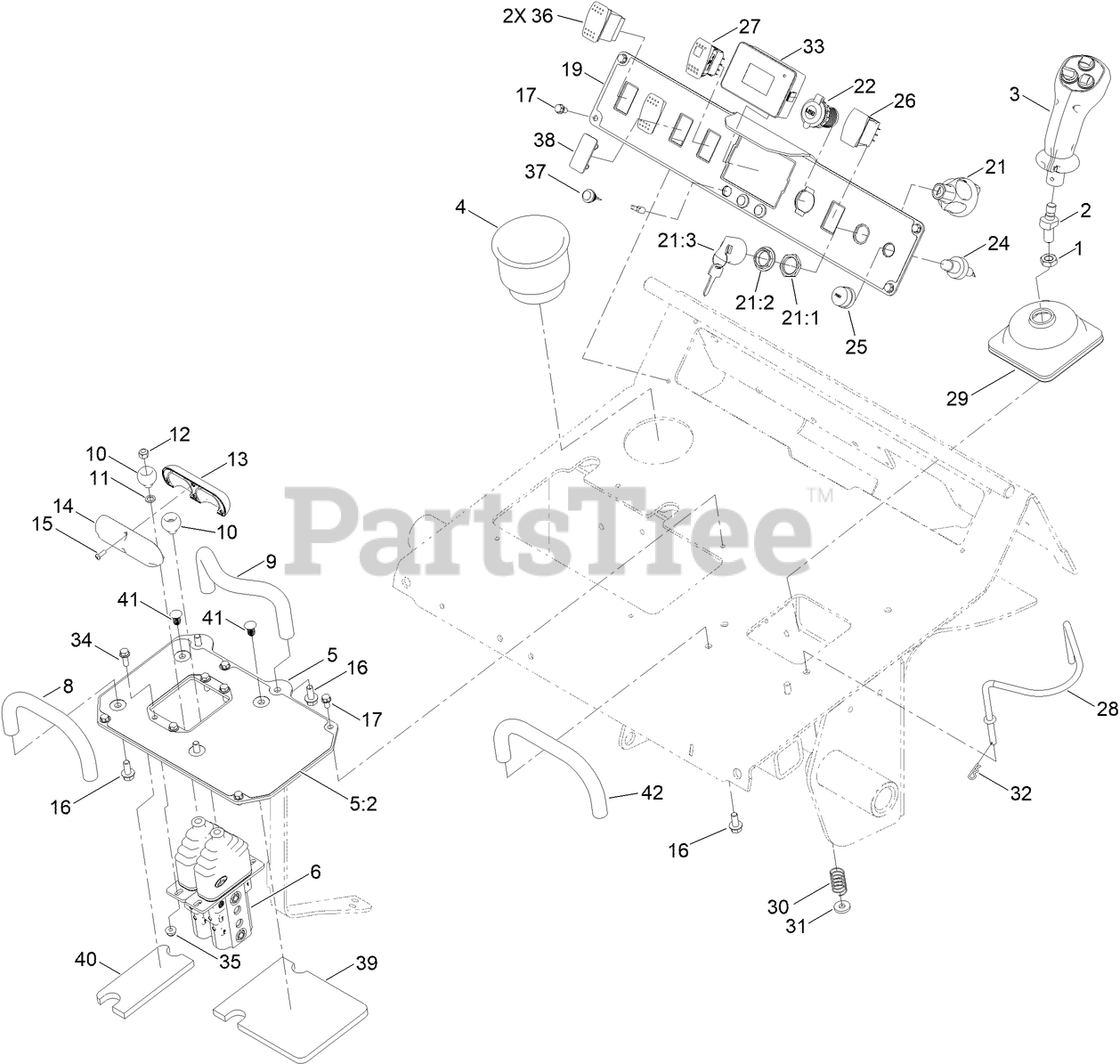

Console Assembly Parts Diagram

  • Title

1

Toro 51-2070

NUT

$0.99

$

Usually ships in 3-6 days

0

2

Toro 144-0757

SHAFT-CONTROL

$73.99

$

Usually ships in 3-6 days

0

3

Toro 139-4736

HANDLE-JOYSTICK,

$1486.99

$

Usually ships in 3-6 days

0

4

Toro AU8EO24121

CUP-HOLDER

$3.49

$

Usually ships in 3-6 days

0

5

Toro 130-5321

PLATE-CONTROL

$100.99

$

Usually ships in 3-6 days

0

5:2

Toro 131-0708

DECAL-CONTROL PANEL

$34.99

$

Usually ships in 3-6 days

0

6

Toro 145-3279

VALVE-CONTROL (TRACTION)

$1294.99

$

Usually ships in 0 days

0

8

Toro 112-2620

BAR-REFERENCE

$64.99

$

Usually ships in 3-6 days

0

9

Toro 138-0791

BAR-REFERENCE

$64.99

$

Usually ships in 3-6 days

0

10

Toro 130-7723

BALL-TRACTION

$11.99

$

In Stock, only 2 left!

0

11

Toro 75-5470

SPACER-BEARING

$3.99

$

Usually ships in 3-6 days

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 130-7692

HANDLE-CONTROL

$10.99

$

In Stock, only 1 left!

0

14

Toro 131-9162

HANDLE-TRACTION

$10.99

$

In Stock, only 1 left!

0

15

Toro 94-6961

SCREW

$1.49

$

In Stock, Qty 20+

0

16

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

17

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

19

Toro 140-6061

PLATE-CONTROLS,

$

$

Currently unavailable

21

Toro 121-5159

IGNITION SWITCH ASM

$122.99

$

In Stock, only 1 left!

0

21:1

Toro 121-5160

NUT-HEX

$114.99

$

Usually ships in 3-6 days

0

21:2

Toro 122-2704

NUT-FACE, M22 (PLASTIC)

$2.49

$

Usually ships in 0 days

0

21:3

Toro 121-5162

SET-KEY, IGNITION

$35.99

$

In Stock, only 2 left!

0

22

Toro 131-8388

SOCKET-USB

$83.99

$

Usually ships in 3-6 days

0

24

Toro 112-3324

SWITCH-HORN

$48.99

$

Usually ships in 3-6 days

0

25

Toro 112-3313

NUT-WEATHERPROOF

$6.99

$

Usually ships in 3-6 days

0

26

Toro 100-1535

SWITCH

$90.99

$

In Stock, only 3 left!

0

27

Toro 100-8072

SWITCH

$100.99

$

Usually ships in 3-6 days

0

28

Toro 138-2415

ROD-INTERLOCK

$118.99

$

Usually ships in 3-6 days

0

29

Toro 144-0777

BOOT

$26.99

$

Usually ships in 3-6 days

0

30

Toro 85-6750

SPRING-CONTROL

$10.99

$

Usually ships in 3-6 days

0

31

Toro 88-7200

WASHER-FLAT

$3.49

$

In Stock, only 1 left!

0

32

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

33

Toro 122-1201

TDM 2002

$210.99

$

Usually ships in 3-6 days

0

34

Toro 115-5103

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

35

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

36

Toro 95-8999

SWITCH

$44.99

$

In Stock, only 1 left!

0

37

Toro 136-9678

SWITCH-PUSHBUTTON

$58.99

$

Usually ships in 3-6 days

0

38

Toro 99-7420

PLUG-HOLE

$8.49

$

Usually ships in 3-6 days

0

39

Toro 132-8414

FOAM-SHIELD, HEAT

$6.49

$

Usually ships in 3-6 days

0

40

Toro 132-8415

FOAM-SHIELD, HEAT

$3.49

$

Usually ships in 3-6 days

0

41

Toro 133-0875

RIVET-PUSH

$0.99

$

Usually ships in 3-6 days

0

42

Toro 145-4400

BAR-REFERENCE

$100.99

$

Usually ships in 3-6 days

0
