22370 (TX 1300) - Toro Dingo Compact Utility Loader (SN: 413000000 - 414487157) Fuel Line Assembly Parts Diagram

Dingo Compact Utility Loader

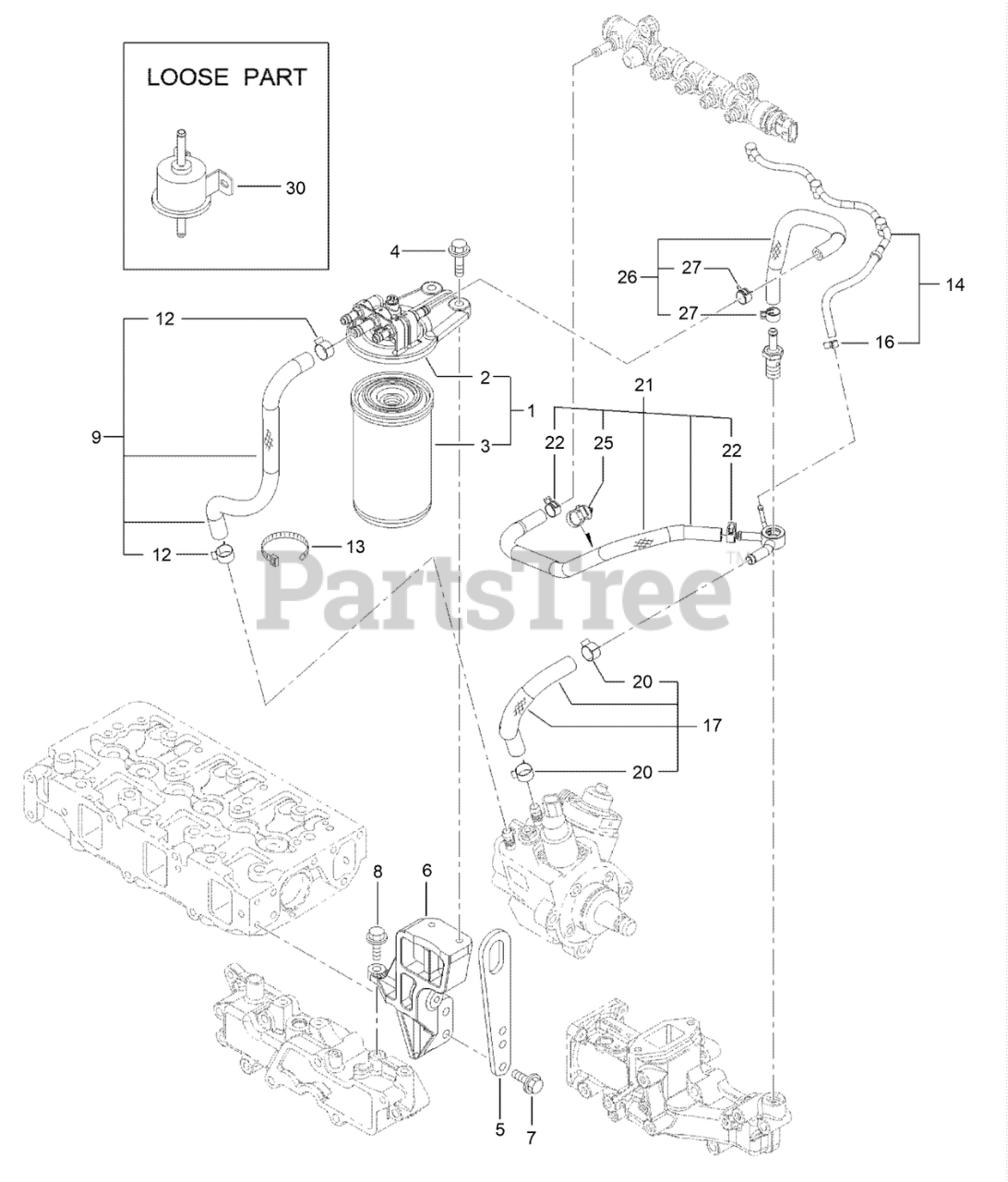

Fuel Line Assembly Parts Diagram

  • Title

1

Toro 139-6016

FUEL/OIL FILTER ASM

$164.99

$

Usually ships in 3-6 days

0

2

Toro 127-3076

FUEL/OIL FILTER BRACKET ASM

$124.99

$

Usually ships in 3-6 days

0

3

Toro 139-6017

FILTER-FUEL

$67.99

$

Usually ships in 3-6 days

0

4

Toro 125-7216

BOLT

$4.49

$

Usually ships in 3-6 days

0

5

Toro 125-7111

LIFTER

$9.99

$

Usually ships in 3-6 days

0

6

Toro 127-3815

FILTER BRACKET ASM

$86.99

$

Usually ships in 3-6 days

0

7

Toro 125-7215

BOLT

$4.49

$

Usually ships in 3-6 days

0

8

Toro 125-7215

BOLT

$4.49

$

Usually ships in 3-6 days

0

9

Toro 127-3077

FUEL PIPE ASM

$103.99

$

Usually ships in 3-6 days

0

12

Toro 125-7191

CLAMP-HOSE

$18.99

$

Usually ships in 3-6 days

0

13

Toro 127-2981

BAND

$

$

Currently unavailable

14

Toro 131-2729

JOINT-HOSE, 4 WAY

$228.99

$

Usually ships in 0 days

0

16

Toro 127-3172

CLAMP-HOSE

$6.99

$

Usually ships in 3-6 days

0

17

Toro 127-3078

FUEL PIPE ASM

$133.99

$

Usually ships in 3-6 days

0

20

Toro 125-7191

CLAMP-HOSE

$18.99

$

Usually ships in 3-6 days

0

21

Toro 127-3817

FUEL PIPE ASM

$171.99

$

Usually ships in 3-6 days

0

22

Toro 127-2950

CLIP-HOSE

$7.49

$

Usually ships in 3-6 days

0

25

Toro 127-3087

BAND-CLIP

$2.99

$

Usually ships in 3-6 days

0

26

Toro 127-3079

FUEL PIPE ASM

$97.99

$

Usually ships in 3-6 days

0

27

Toro 127-2950

CLIP-HOSE

$7.49

$

Usually ships in 3-6 days

0

30

Toro 121-5613

PUMP-FUEL, ELECTRIC

$337.99

$

Usually ships in 3-6 days

0
