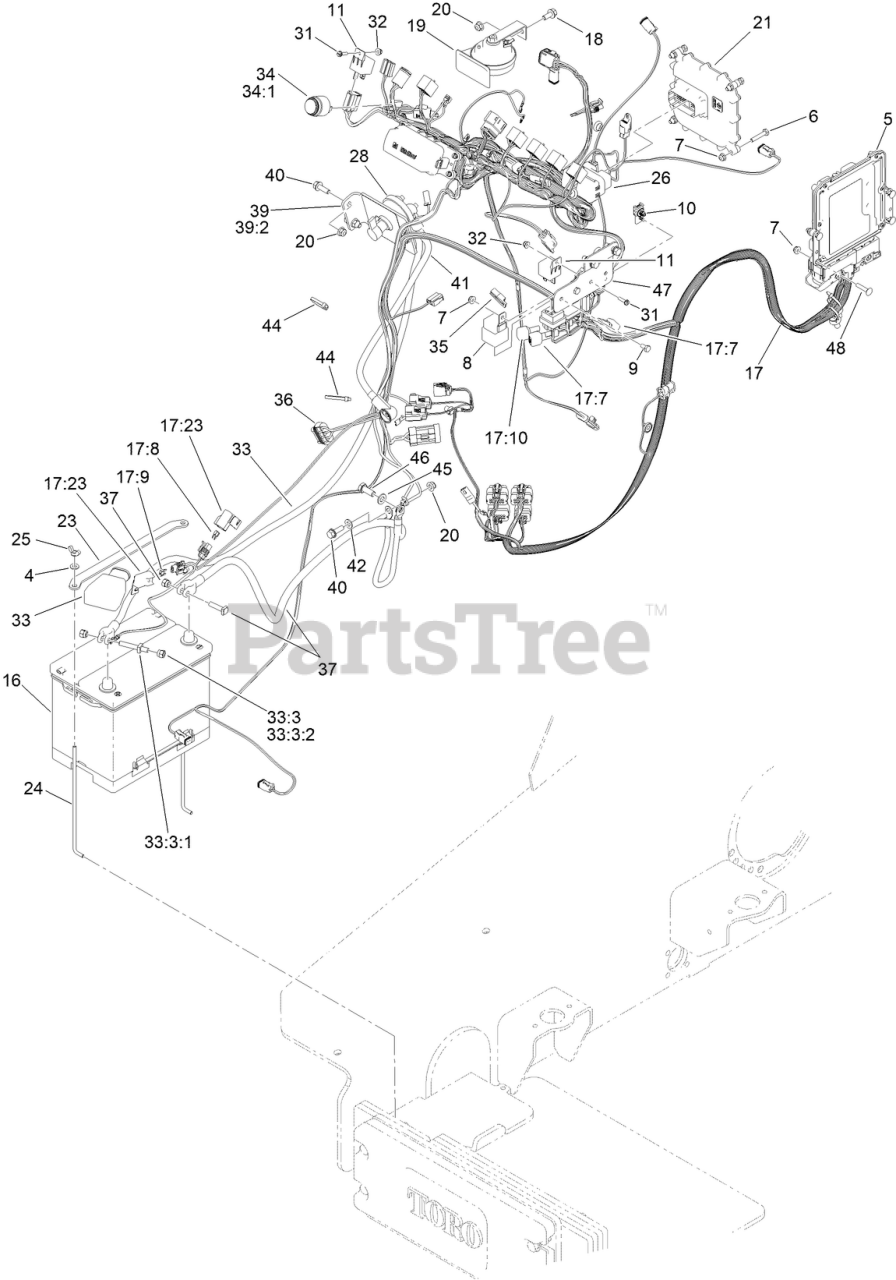

22370 (TX 1300) - Toro Dingo Compact Utility Loader (SN: 413000000 - 414487157) Electrical System Assembly Parts Diagram

Dingo Compact Utility Loader

Electrical System Assembly Parts Diagram

  • Title

4

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 121-5592

CONTROLLER-ENGINE

$3620.99

$

Usually ships in 3-6 days

0

6

Toro 321-13

SCREW-HH

$4.99

$

In Stock, Qty 10

0

7

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Toro 99-7430

RELAY-MINI

$25.99

$

In Stock, only 1 left!

0

9

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

10

Toro 32180-103

CLIP-CONNECTOR

$10.99

$

Usually ships in 3-6 days

0

11

Toro 99-7435

RELAY

$47.99

$

In Stock, only 2 left!

0

16

Toro 106-5189

USE 106-5190
(Superseded to 106-5190)

$

$

Not available

17

Toro 122-2139

HARNESS-WIRE, ENGINE T4

$1839.99

$

Usually ships in 3-6 days

0

17:7

Toro 100-4918

DIODE

$22.99

$

In Stock, only 1 left!

0

17:8

Toro 121-8861

FUSE-MINI BLADE, 2 AMP

$4.49

$

Usually ships in 3-6 days

0

17:9

Toro 121-8866

FUSE-MINI BLADE, 10 AMP

$5.49

$

Usually ships in 3-6 days

0

17:10

Toro 104-4022

RESISTOR-75 OHM

$50.99

$

Usually ships in 3-6 days

0

17:23

Toro 32180-101

COVER-FUSE, SINGLE

$13.99

$

Usually ships in 3-6 days

0

18

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

19

Toro 116749

Horn And Bracket Assembly (Inc. Ref.# 44 45)

$140.99

$

Usually ships in 3-6 days

0

20

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Toro 127-2770

CONTROLLER

$1625.99

$

Usually ships in 3-6 days

0

23

Toro 136-5755-03

STRAP-HOLD DOWN, BATTERY

$9.99

$

Usually ships in 3-6 days

0

24

Toro 136-5756

ROD-HOLD DOWN, BATTERY

$12.99

$

Usually ships in 3-6 days

0

25

Toro 1-803038

NUT-WING

$1.49

$

Usually ships in 3-6 days

0

26

Toro 122-2205

HARNESS-WIRE, TX1300

$1630.99

$

Usually ships in 3-6 days

0

28

Toro AUR52278

SWITCH-DISCONNECT, MASTER

$159.99

$

Usually ships in 3-6 days

0

31

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

32

Toro 120-4578

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

33

Toro 122-2244

CABLE-BATTERY, RD ASM

$103.99

$

Usually ships in 3-6 days

0

33:3

Toro 112-9921

BOLT ASM

$31.99

$

Usually ships in 3-6 days

0

33:3:1

Toro 32180-107

BOLT-CLAMP, BATTERY

$

$

Currently unavailable

33:3:2

Toro 32180-108

NUT-CLAMP, BATTERY

$

$

Currently unavailable

34

Toro 80-9330

AUDIO ALARM ASM

$146.99

$

Usually ships in 3-6 days

0

34:1

Toro 104-5107

NUT-PLASTIC, KNURLED

$5.99

$

Usually ships in 3-6 days

0

35

Toro 136-4862

HARNESS-WIRE, FUSIBLE LINK

$23.99

$

Usually ships in 3-6 days

0

36

Toro 99-3441

HARNESS-WIRE, FUSIBLE LINK

$162.99

$

Usually ships in 3-6 days

0

37

Toro 105-0115

CABLE-BATTERY, NEGATIVE

$114.99

$

Usually ships in 3-6 days

0

39

Toro 145-4283

BRACKET-SHUTOFF

$70.99

$

Usually ships in 3-6 days

0

39:2

Toro 131-8026

DECAL-BATTERY DISCONNECT

$18.99

$

Usually ships in 3-6 days

0

40

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

41

Toro 122-2245

CABLE-BATTERY, RD ASM

$42.99

$

Usually ships in 3-6 days

0

42

Toro 120-9683

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0

44

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

45

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

46

Toro 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

47

Toro 144-0795-03

BRACKET-RELAYS

$14.99

$

Usually ships in 0 days

0

48

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0
