22370 (TX 1300) - Toro Dingo Compact Utility Loader (SN: 413000000 - 414487157) Cooling System Assembly Parts Diagram

Dingo Compact Utility Loader

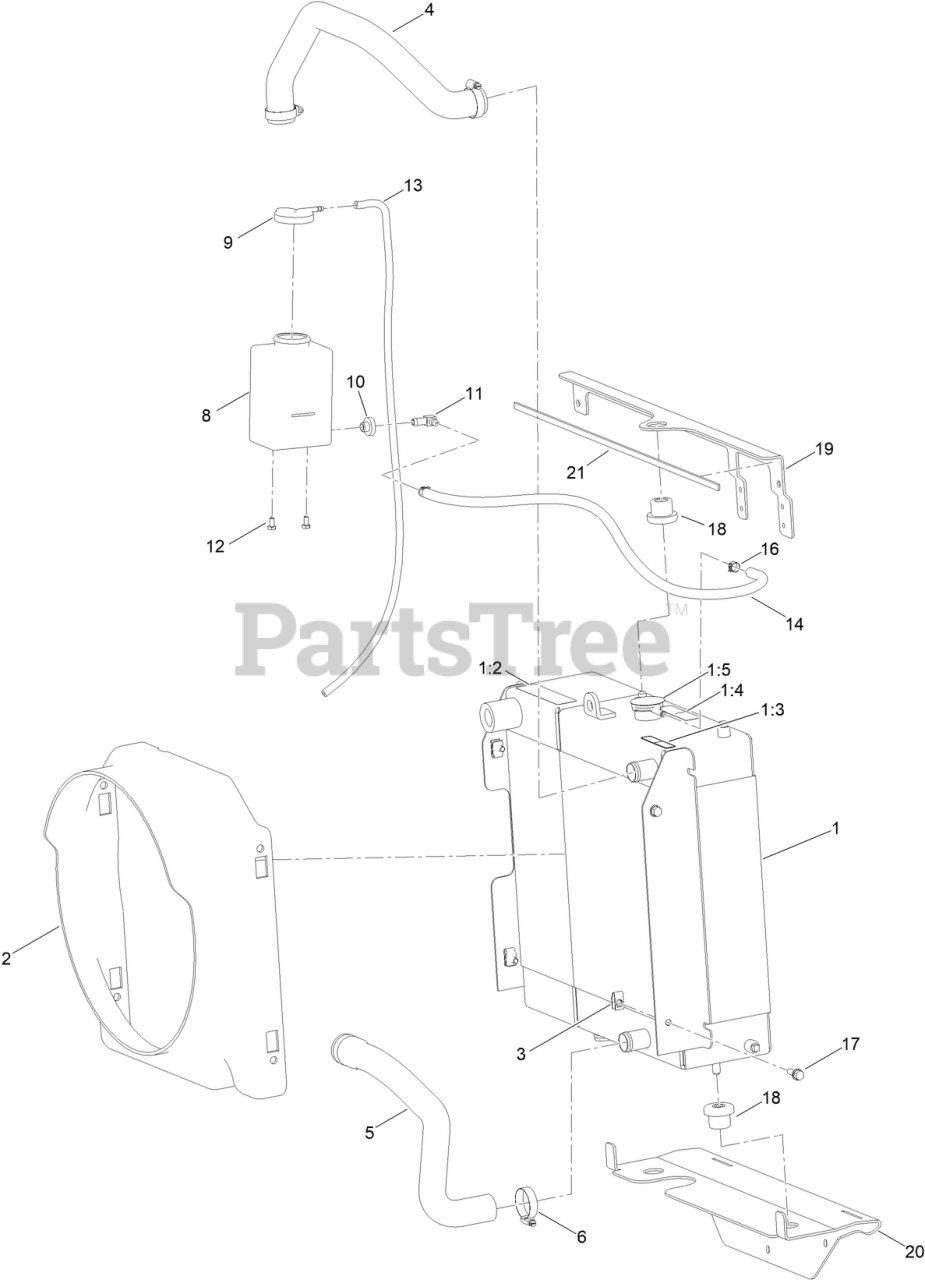

Cooling System Assembly Parts Diagram

  • Title

1

Toro 140-6060

COOLING ASM,

$2615.99

$

Usually ships in 0 days

0

1:2

Toro 93-7814

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

1:3

Toro 93-6681

DECAL-WARNING, FAN

$15.99

$

Usually ships in 3-6 days

0

1:4

Toro 115-4865

DECAL-RADIATOR FILL

$13.99

$

Usually ships in 3-6 days

0

1:5

Toro 106-5976

DECAL-WARNING
(Superseded to 117-3276)

$11.99

$

Usually ships in 3-6 days

0

2

Toro 140-1833

SHROUD-RADIATOR

$234.99

$

Usually ships in 3-6 days

0

3

Toro 115-7721

NUT-CLIP, U

$2.49

$

Usually ships in 3-6 days

0

4

Toro 140-4492

HOSE-RADIATOR

$33.99

$

Usually ships in 3-6 days

0

5

Toro 140-4510

HOSE-RADIATOR

$40.99

$

Usually ships in 3-6 days

0

6

Toro 2412-3

CLAMP-HOSE

$4.99

$

Usually ships in 3-6 days

0

8

Toro 1-643163

TANK-OVERFLOW

$96.99

$

Usually ships in 3-6 days

0

9

Toro 1-643164

CAP-TANK, OVERFLOW

$19.99

$

In Stock, only 3 left!

0

10

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

11

Toro 46-6550

FITTING-ELBOW, 90 DEG

$41.99

$

Usually ships in 3-6 days

0

12

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

13

Toro 108-6344

HOSE-LP

$16.99

$

Usually ships in 3-6 days

0

14

Toro 110-6186

HOSE-FUEL

$18.99

$

Usually ships in 3-6 days

0

16

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

17

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

18

Toro 119-1422

MOUNT-ISOLATOR

$20.99

$

Usually ships in 3-6 days

0

19

Toro 144-0762-03

BRACKET-COOLING, TOP

$79.99

$

Usually ships in 0 days

0

20

Toro 144-0766-03

PLATE-COOLER

$127.99

$

Usually ships in 0 days

0

21

Toro 136-9862

SEAL-FOAM

$16.99

$

Usually ships in 3-6 days

0
