22370 (TX 1300) - Toro Dingo Compact Utility Loader (SN: 410500000 - 412999999) Generator Assembly Parts Diagram

Dingo Compact Utility Loader

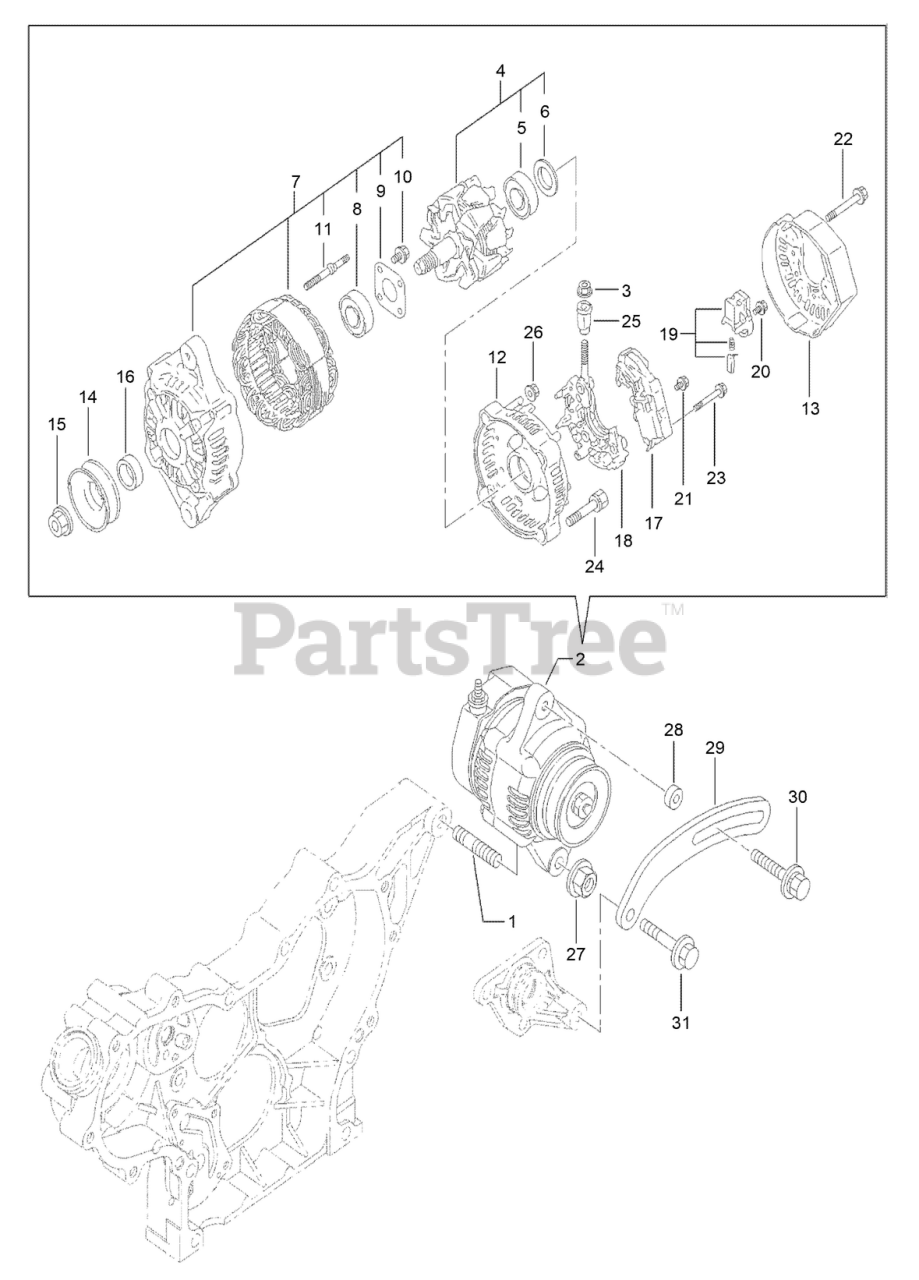

Generator Assembly Parts Diagram

  • Title

1

Toro 127-3011

STUD

$10.99

$

Usually ships in 3-6 days

0

2

Toro 139-6018

GENERATOR

$916.99

$

Usually ships in 0 days

0

3

Toro 127-3190

NUT

$5.99

$

Usually ships in 3-6 days

0

4

Toro 127-3843

ROTOR ASM

$

$

Currently unavailable

5

Toro 127-2983

BEARING-BALL

$31.99

$

Usually ships in 3-6 days

0

6

Toro 127-2962

COVER

$

$

Currently unavailable

7

Toro 135-4025

FRAME ASM

$889.99

$

Usually ships in 3-6 days

0

8

Toro 127-2958

BEARING-BALL

$31.99

$

Usually ships in 3-6 days

0

9

Toro 127-2959

PLATE-RETAINER

$

$

Currently unavailable

10

Toro 127-2960

SCREW

$

$

Currently unavailable

11

Toro 127-2961

STUD

$

$

Currently unavailable

12

Toro 127-3845

FRAME

$

$

Currently unavailable

13

Toro 127-3846

COVER

$

$

Currently unavailable

14

Toro 127-2954

PULLEY

$74.99

$

Usually ships in 3-6 days

0

15

Toro 127-2955

NUT

$

$

Currently unavailable

16

Toro 127-2957

COLLAR

$17.99

$

Usually ships in 0 days

0

17

Toro 135-4026

REGULATOR ASM
(Superseded to 135-4278)

$1271.99

$

Usually ships in 3-6 days

0

18

Toro 127-3848

HOLDER

$311.99

$

Usually ships in 3-6 days

0

19

Toro 127-2993

HOLDER

$104.99

$

Usually ships in 3-6 days

0

20

Toro 127-2965

SCREW

$

$

Currently unavailable

21

Toro 127-2966

SCREW

$

$

Currently unavailable

22

Toro 127-2967

BOLT

$

$

Currently unavailable

23

Toro 127-2968

SCREW

$5.99

$

Usually ships in 3-6 days

0

24

Toro 127-2969

BOLT

$

$

Currently unavailable

25

Toro 127-2970

BUSHING-INSULATION

$

$

Currently unavailable

26

Toro 127-2971

NUT

$

$

Currently unavailable

27

Toro 125-7230

NUT

$3.49

$

Usually ships in 3-6 days

0

28

Toro 125-6947

SPACER

$25.99

$

Usually ships in 3-6 days

0

29

Toro 127-2977

ADJUSTER

$121.99

$

Usually ships in 3-6 days

0

30

Toro 125-7134

BOLT

$30.99

$

Usually ships in 3-6 days

0

31

Toro 125-7219

BOLT

$5.49

$

Usually ships in 3-6 days

0
