22370 (TX 1300) - Toro Dingo Compact Utility Loader (SN: 410400000 - 410499999) Exhaust Manifold Assembly Parts Diagram

Dingo Compact Utility Loader

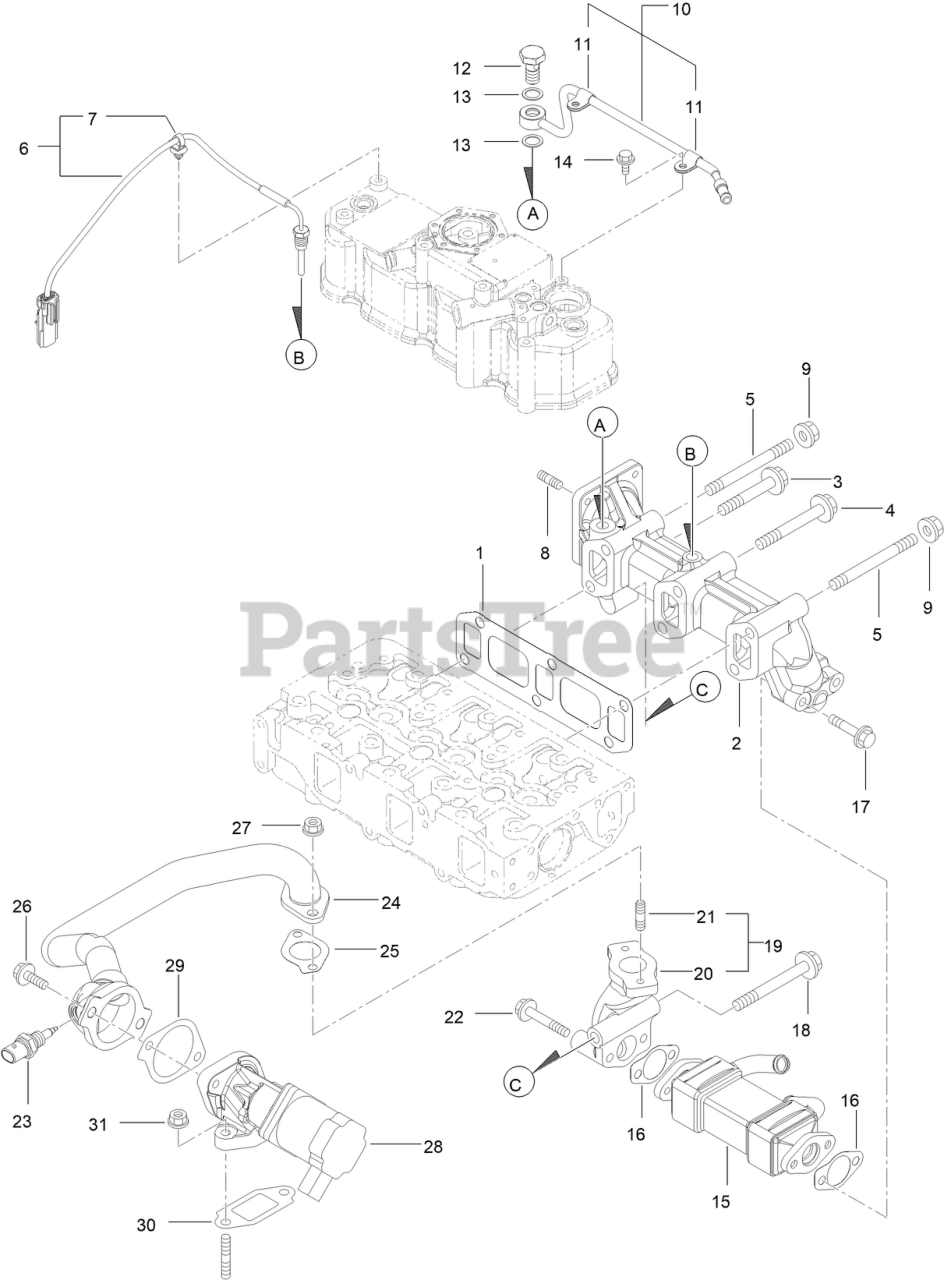

Exhaust Manifold Assembly Parts Diagram

  • Title

1

Toro 127-3775

GASKET-MANIFOLD, EXHAUST

$10.99

$

Usually ships in 3-6 days

0

2

Toro 127-4727

MANIFOLD-EXHAUST

$449.99

$

Usually ships in 3-6 days

0

3

Toro 127-3776

BOLT-FLANGE

$12.99

$

Usually ships in 3-6 days

0

4

Toro 127-3044

BOLT-M10

$47.99

$

Usually ships in 3-6 days

0

5

Toro 127-4756

STUD

$8.99

$

Usually ships in 3-6 days

0

6

Toro 127-4728

SENSOR-TEMP, EXHAUST

$

$

Not available

7

Toro 127-3087

BAND-CLIP

$2.99

$

Usually ships in 3-6 days

0

8

Toro 125-7043

STUD

$28.99

$

Usually ships in 3-6 days

0

9

Toro 125-7230

NUT

$3.49

$

Usually ships in 3-6 days

0

10

Toro 127-3038

EXHAUST PIPE ASM

$170.99

$

Usually ships in 3-6 days

0

11

Toro 127-3173

CLAMP

$21.99

$

Usually ships in 3-6 days

0

12

Toro 127-3039

BOLT-JOINT, PIPE

$143.99

$

Usually ships in 3-6 days

0

13

Toro 127-3174

GASKET

$1.49

$

Usually ships in 3-6 days

0

14

Toro 125-7206

BOLT

$2.49

$

Usually ships in 3-6 days

0

15

Toro 127-3042

COOLER-E G R

$864.99

$

Usually ships in 3-6 days

0

16

Toro 127-3043

GASKET-COOLER, E G R

$3.99

$

Usually ships in 3-6 days

0

17

Toro 127-2976

BOLT

$7.49

$

Usually ships in 3-6 days

0

18

Toro 127-3022

BOLT-FLANGE

$53.99

$

Usually ships in 3-6 days

0

19

Toro 127-3048

E G R PIPE ASM

$153.99

$

Usually ships in 3-6 days

0

20

Toro 127-3049

PIPE-OUT, E G R

$

$

Currently unavailable

21

Toro 125-7043

STUD

$28.99

$

Usually ships in 3-6 days

0

22

Toro 125-7220

BOLT

$5.99

$

Usually ships in 3-6 days

0

23

Toro 127-3047

SENSOR-GAS TEMP, E G R

$322.99

$

Usually ships in 3-6 days

0

24

Toro 127-3780

E G R PIPE ASM

$420.99

$

Usually ships in 3-6 days

0

25

Toro 127-3016

GASKET

$3.99

$

Usually ships in 3-6 days

0

26

Toro 125-7215

BOLT

$4.49

$

Usually ships in 3-6 days

0

27

Toro 125-7229

NUT

$17.99

$

Usually ships in 3-6 days

0

28

Toro 127-3781

VALVE-E G R

$2432.99

$

Usually ships in 3-6 days

0

29

Toro 127-3050

GASKET-INTAKE VALVE, E G R

$5.49

$

Usually ships in 3-6 days

0

30

Toro 127-3051

GASKET-OUT VALVE, E G R

$4.99

$

Usually ships in 3-6 days

0

31

Toro 125-7229

NUT

$17.99

$

Usually ships in 3-6 days

0
