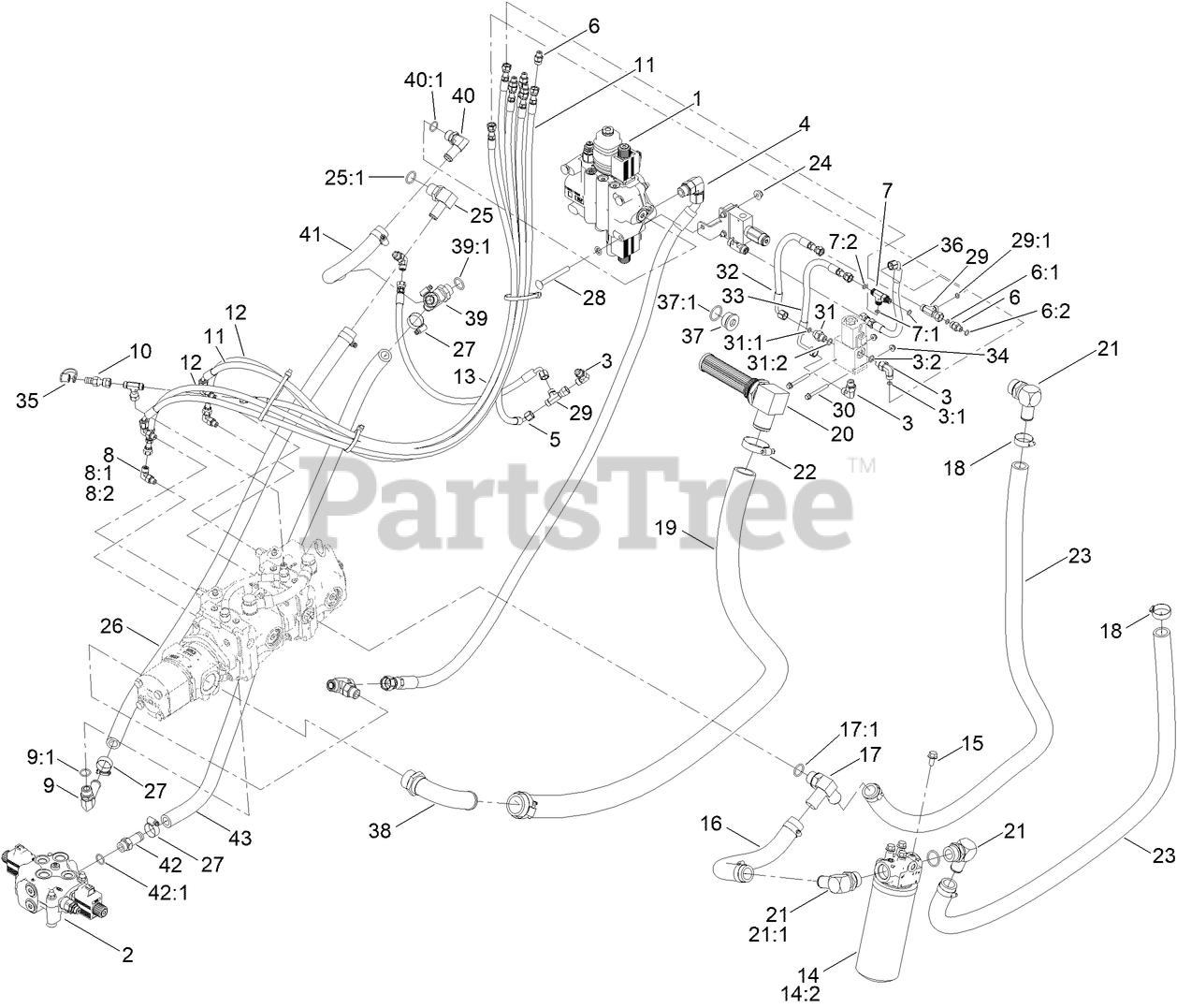

22370 (TX 1300) - Toro Dingo Compact Utility Loader (SN: 400000000 - 410399999) Loader Valve Hydraulic Assembly Parts Diagram

Dingo Compact Utility Loader

Loader Valve Hydraulic Assembly Parts Diagram

  • Title
1

Toro 144-4257

LOADER VALVE ASM,

$

$

Not available

2

Toro 139-4737

VALVE-HYD

$1703.99

$

Usually ships in 3-6 days

0

3

Toro 340-82

FITTING-ELBOW, 90 DEG

$24.99

$

In Stock, only 2 left!

0

3:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

3:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

4

Toro 140-4489

HYD HOSE ASM

$55.99

$

Usually ships in 3-6 days

0

5

Toro 140-4453

HYD HOSE ASM

$45.99

$

Usually ships in 3-6 days

0

6

Toro 340-92

FITTING-STRAIGHT

$13.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

6:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

7

Toro 340-140

FITTING-TEE

$65.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

7:2

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

8

Toro 340-132

FITTING-ELBOW, 90 DEG

$27.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

8:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

9

Toro 87-8170

FITTING-90

$49.99

$

Usually ships in 3-6 days

0

9:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

10

Toro 115-8886

NIPPLE-TEST

$81.99

$

Usually ships in 3-6 days

0

11

Toro 140-4457

HYD HOSE ASM

$55.99

$

Usually ships in 3-6 days

0

12

Toro 140-4458

HYD HOSE ASM

$52.99

$

Usually ships in 3-6 days

0

13

Toro 140-4459

HYD HOSE ASM

$50.99

$

Usually ships in 3-6 days

0

14

Toro 139-1010

FILTER HEAD ASM

$344.99

$

Usually ships in 3-6 days

0

14:2

Toro 94-2621

ELEMENT-FILTER

$89.99

$

In Stock, only 1 left!

0

15

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

16

Toro 140-4480

HYD HOSE ASM

$33.99

$

Usually ships in 3-6 days

0

17

Toro AU375462A1

CONNECTOR

$129.99

$

Usually ships in 3-6 days

0

17:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

18

Toro 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 3 left!

0

19

Toro 140-4482

HYD HOSE ASM

$127.99

$

Usually ships in 3-6 days

0

20

Toro 140-6070

STRAINER FITTING ASM

$195.99

$

Usually ships in 3-6 days

0

21

Toro 23-8910

STEM-BARB-90

$220.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

22

Toro 2412-92

CLAMP-HOSE

$3.49

$

Usually ships in 3-6 days

0

23

Toro 140-4481

HYD HOSE ASM

$89.99

$

Usually ships in 3-6 days

0

24

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Toro 353-987

FITTING-ELBOW, 90

$79.99

$

Usually ships in 3-6 days

0

25:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

26

Toro 140-4487

HYD HOSE ASM

$71.99

$

Usually ships in 3-6 days

0

27

Toro 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

0

28

Toro 3231-11

SCREW-CARR

$5.49

$

In Stock, Qty 11

0

29

Toro 340-151

FITTING-HYD

$106.99

$

Usually ships in 3-6 days

0

29:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

30

Toro 138-3326

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

31

Toro 340-1

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

31:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

31:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

32

Toro 144-4413

HYD HOSE ASM

$39.99

$

Usually ships in 3-6 days

0

33

Toro 140-5958

HYD HOSE ASM

$52.99

$

Usually ships in 3-6 days

0

34

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

35

Toro 354-79

CAP-DUST

$9.99

$

Usually ships in 3-6 days

0

36

Toro 140-4460

HYD HOSE ASM

$38.99

$

Usually ships in 3-6 days

0

37

Toro 105-3921

FITTING-PLUG

$45.99

$

Usually ships in 3-6 days

0

37:1

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

38

Toro 139-4748

ELBOW-SUCTION,

$152.99

$

Usually ships in 3-6 days

0

39

Toro 93-6794

FITTING-45 DEG

$

$

Not available

39:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

40

Toro AU217-361

STEM - 90 Bead Hose 3/4 ID x 7.8 - 14
(Superseded to 87-8170)

$49.99

$

Usually ships in 3-6 days

0

40:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

41

Toro 144-4339

HYD HOSE

$26.99

$

Usually ships in 3-6 days

0

42

Toro 354-136

FITTING-STR

$50.99

$

Usually ships in 3-6 days

0

42:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

43

Toro 144-4351

HYD HOSE ASM

$79.99

$

Usually ships in 3-6 days

0

99

Toro 505-7

See Supercession: 108-1190
(Superseded to 108-1190)

Note: Not illustrated

$13.99

$

In Stock, only 4 left!

0
