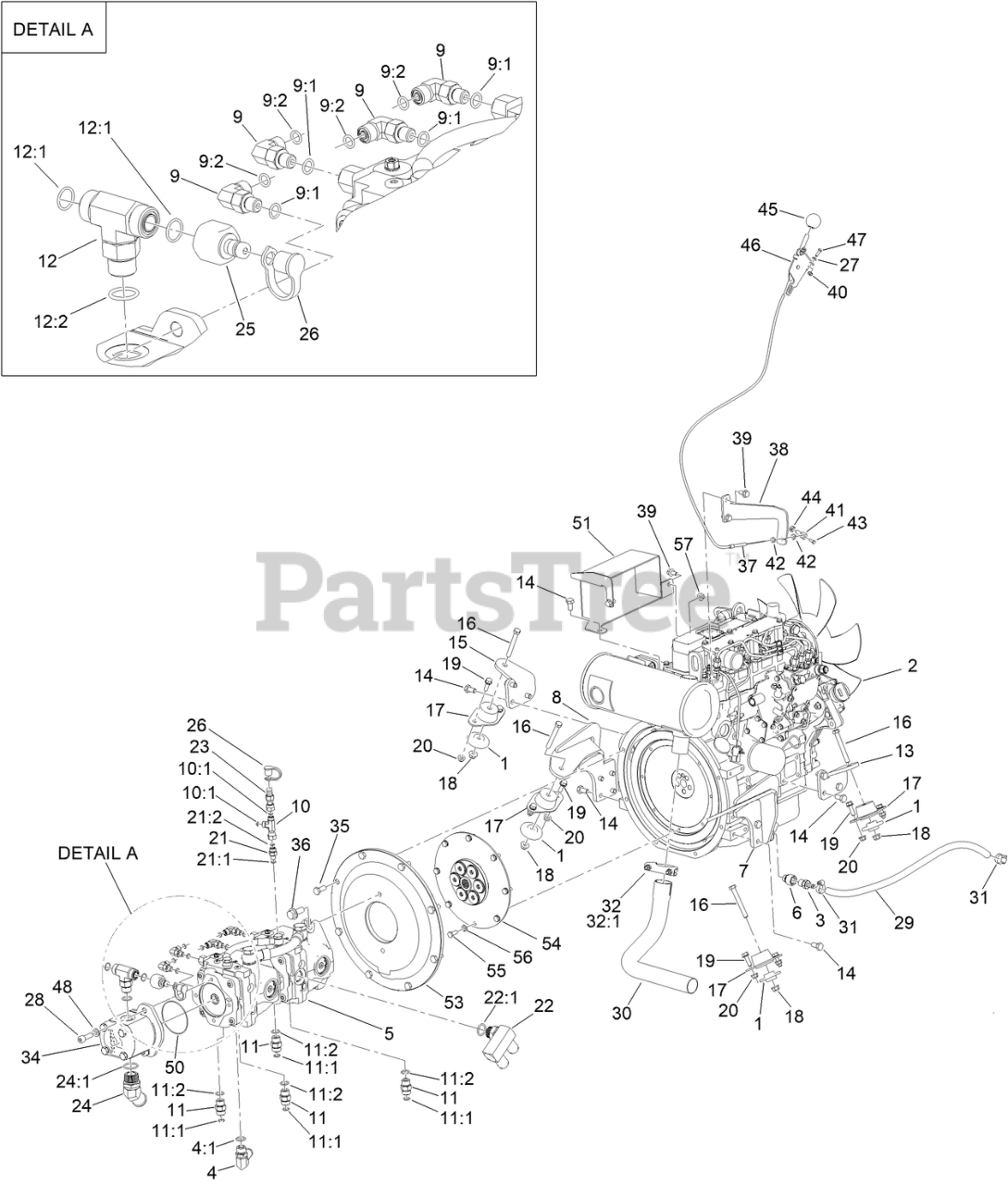

22352 (TX 700) - Toro Dingo Wide Track Compact Utility Loader (SN: 412900000 - 415287953) Engine and Pump Assembly Parts Diagram

Dingo Wide Track Compact Utility Loader

Engine and Pump Assembly Parts Diagram

  • Title

1

Toro 138-6462

SUPPORT-ISOLATOR

$7.49

$

Usually ships in 3-6 days

0

2

Toro 145-3262

ENGINE-YANMAR 3TNV80F-NXDTR2

$

$

Currently unavailable

3

Toro 1-513200

FITTING,MALE

$9.49

$

In Stock, only 2 left!

0

4

Toro 87-8170

FITTING-90

$49.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

5

Toro 145-3277

PUMP - TANDEM

$8105.99

$

Usually ships in 3-6 days

0

5:1

Toro 132-6041

SEAL KIT

Note: Not illustrated

$

$

Not available

5:1:1

SEAL KIT

Note: Not illustrated

$

$

Not available

5:1:1

SEAL KIT

Note: Not serviced separately

$

$

Not available

5:2

Toro 132-6042

SPACER-JET

Note: Not illustrated

$14.99

$

In Stock, only 2 left!

0

5:2:1

JET-1-HC-M5-5.5

Note: Not illustrated

$

$

Not available

5:2:1

JET-1-HC-M5-5.5

Note: Not serviced separately

$

$

Not available

5:3

Toro 132-6045

SHAFT SEAL KIT

Note: Not illustrated

$227.99

$

Usually ships in 3-6 days

0

5:3:1

SHAFT SEAL KIT

Note: Not illustrated

$

$

Not available

5:3:1

SHAFT SEAL KIT

Note: Not serviced separately

$

$

Not available

5:4

Toro 132-6047

TANDEM CONNECTION PIPE KIT

Note: Not illustrated

$453.99

$

In Stock, only 1 left!

0

5:4:1

TANDEM CONNECTION KIT

Note: Not illustrated

$

$

Not available

5:4:1

TANDEM CONNECTION KIT

Note: Not serviced separately

$

$

Not available

5:5

Toro 138-0781

VALVE-RELIEF

Note: Not illustrated

$186.99

$

Usually ships in 3-6 days

0

5:6

Toro 140-5300

HARDWARE KIT

Note: Not illustrated

$238.99

$

Usually ships in 3-6 days

0

5:6:1

BOLT-HEX

Note: Not illustrated

$

$

Not available

5:6:1

BOLT-HEX

Note: Not serviced separately

$

$

Not available

5:6:2

Washer

Note: Not serviced separately

$

$

Not available

5:6:2

Washer

Note: Not illustrated

$

$

Not available

5:6:3

O-RING

Note: Not illustrated

$

$

Not available

5:6:3

O-RING

Note: Not serviced separately

$

$

Not available

5:7

Toro 144-7490

JET-KIT

Note: Not illustrated

$11.99

$

Usually ships in 0 days

0

5:8

Toro 144-7491

FLUSHING VALVE-KIT

Note: Not illustrated

$259.99

$

Usually ships in 0 days

0

5:9

Toro 144-7363

BOLT KIT

Note: Not illustrated

$60.99

$

Usually ships in 3-6 days

0

5:9:1

POCLAIN P/N 4485

Note: Not illustrated

$

$

Not available

5:9:1

POCLAIN P/N 4485

Note: Not serviced separately

$

$

Not available

5:9:2

POCLAIN P/N 4670

Note: Not serviced separately

$

$

Not available

5:9:2

POCLAIN P/N 4670

Note: Not illustrated

$

$

Not available

5:9:3

POCLAIN P/N 4480

Note: Not illustrated

$

$

Not available

5:9:3

POCLAIN P/N 4480

Note: Not serviced separately

$

$

Not available

6

Toro 139-2218

ADAPTOR-STR

$48.99

$

Usually ships in 3-6 days

0

7

Toro 145-3341-03

LEFT HAND MOUNT [BLACK]

$251.99

$

Usually ships in 0 days

0

8

Toro 145-3340-03

RIGHT HAND MOUNT [BLACK]

$251.99

$

Usually ships in 0 days

0

9

Toro 340-132

FITTING-ELBOW, 90 DEG

$27.99

$

In Stock, only 1 left!

0

9:1

Toro 237-78

O-RING

$4.49

$

In Stock, only 2 left!

0

9:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 5

0

10

Toro 340-151

FITTING-HYD

$112.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 5

0

11

Toro 340-4

FITTING-STRAIGHT

$13.99

$

In Stock, only 3 left!

0

11:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

11:2

Toro 237-79

O-RING

$6.49

$

In Stock, only 1 left!

0

12

Toro 340-93

TEE-ADAPTER

$96.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 20+

0

12:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

13

Toro 140-2771-03

BRACKET-ENGINE MOUNT, REAR LH

$39.99

$

Usually ships in 0 days

0

14

Toro 33115-020

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

15

Toro 140-2772-03

BRACKET-ENGINE MOUNT, REAR RH

$39.99

$

Usually ships in 0 days

0

16

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

17

Toro 120-6274

MOUNT-ENGINE

$45.99

$

In Stock, only 2 left!

0

18

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

20

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Toro 340-92

FITTING-STRAIGHT

$13.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-78

O-RING

$4.49

$

In Stock, only 2 left!

0

21:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 5

0

22

Toro 145-0621

FITTING

$

$

Currently unavailable

22:1

Toro 237-81

O-RING

$3.49

$

Usually ships in 3-6 days

0

23

Toro 115-8886

NIPPLE-TEST

$86.99

$

Usually ships in 3-6 days

0

24

Toro 136-6071

FITTING-45 ELBOW

$72.99

$

Usually ships in 3-6 days

0

24:1

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

25

Toro 86-5860

NIPPLE

$61.99

$

Usually ships in 3-6 days

0

26

Toro 354-79

CAP-DUST

$9.99

$

Usually ships in 3-6 days

0

27

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

28

Toro AU862-10030

SCREW-HSH

$1.49

$

Usually ships in 3-6 days

0

29

Toro 119-8562

HOSE-FUEL

$22.99

$

In Stock, only 1 left!

0

30

Toro 140-5731

PIPE-EXHAUST

$46.99

$

Usually ships in 3-6 days

0

31

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

32

Toro 2112-6

CLAMP-MUFFLER

$12.99

$

Usually ships in 3-6 days

0

32:1

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

34

Toro 140-3048

PUMP-HYDRAULIC

$702.99

$

Usually ships in 3-6 days

0

35

Toro 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

36

Toro 137-4653

SCREW-HHF

$4.49

$

Usually ships in 3-6 days

0

37

Toro 144-7483

THROTTLE CABLE

$25.99

$

Usually ships in 3-6 days

0

38

Toro 147-9011

BRACKET-THROTTLE CABLE

$33.99

$

Usually ships in 0 days

0

39

Toro 33104-016

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

40

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, Qty 20+

0

41

Toro 98-9311

SWIVEL-THROTTLE

$43.99

$

Usually ships in 3-6 days

0

42

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

43

Toro 25-8640

SCREW-HH

$1.99

$

In Stock, only 1 left!

0

44

Toro 3296-20

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

45

Toro 233-42

KNOB

$14.99

$

In Stock, Qty 5

0

46

Toro 108-9730

LEVER-CONTROL

$44.99

$

In Stock, Qty 7

0

47

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 20+

0

48

Toro 107-1413

WASHER-HARDENED

$1.49

$

In Stock, Qty 18

0

50

Toro 353-949

O-RING

$5.49

$

Usually ships in 3-6 days

0

51

Toro 145-3176-03

SHIELD-EXHAUST [BLACK]

$168.99

$

Usually ships in 0 days

0

53

Toro 145-3210-0P

COVER-FLYWHEEL

$643.99

$

Usually ships in 0 days

0

54

Toro 126-6531

COUPLER-FLYWHEEL

$288.99

$

Usually ships in 3-6 days

0

55

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

56

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

57

Toro 33004-00

NUT-HF

$0.99

$

In Stock, Qty 9

0
