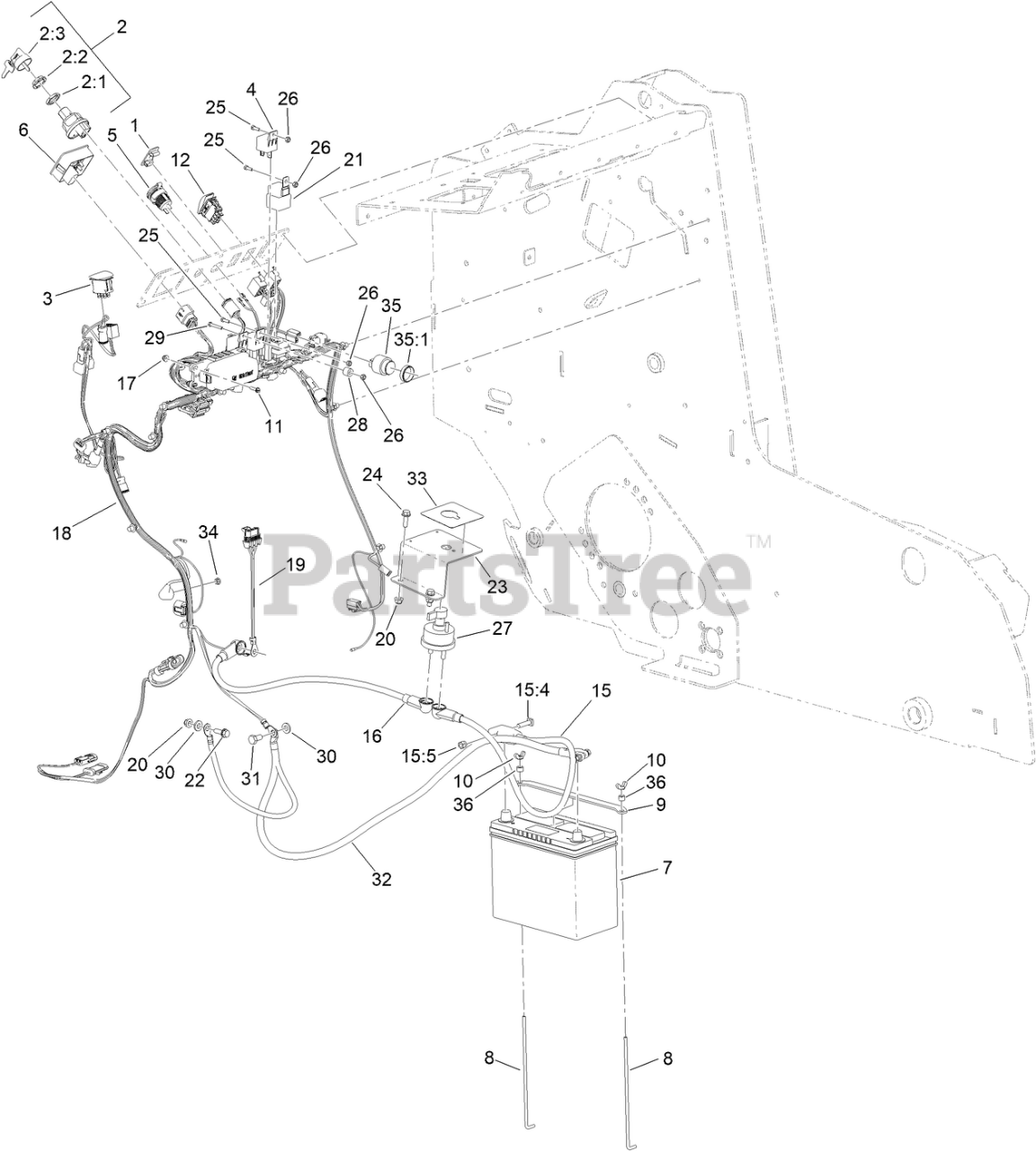

22352 (TX 700) - Toro Dingo Wide Track Compact Utility Loader (SN: 400000000 - 412899999) Electrical Assembly Parts Diagram

Dingo Wide Track Compact Utility Loader

Electrical Assembly Parts Diagram

  • Title

1

Toro 99-7420

PLUG-HOLE

$8.49

$

Usually ships in 3-6 days

0

2

Toro 121-5159

IGNITION SWITCH ASM

$115.99

$

In Stock, only 2 left!

0

2:1

Toro 121-5160

NUT-HEX

$108.99

$

Usually ships in 3-6 days

0

2:2

Toro 122-2704

NUT-FACE, M22 (PLASTIC)

$

$

Currently unavailable

2:3

Toro 121-5162

SET-KEY, IGNITION

$40.99

$

In Stock, only 2 left!

0

3

Toro 100-1535

SWITCH

$85.99

$

In Stock, Qty 5

0

4

Toro 99-7435

RELAY

$44.99

$

In Stock, only 2 left!

0

5

Toro 109-9376

RECEPTACLE-12V

$47.99

$

Usually ships in 3-6 days

0

6

Toro 130-7635

MODULE-HOUR METER

$148.99

$

Usually ships in 3-6 days

0

7

Toro 140-5760

BATTERY-GROUP 51

$

$

Currently unavailable

8

Toro 136-5756

ROD-HOLD DOWN, BATTERY

$11.99

$

Usually ships in 3-6 days

0

9

Toro 136-5755-03

STRAP-HOLD DOWN, BATTERY

$9.99

$

Usually ships in 3-6 days

0

10

Toro 1-803038

NUT-WING

$1.49

$

Usually ships in 3-6 days

0

11

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

12

Toro 100-8072

SWITCH

$95.99

$

Usually ships in 3-6 days

0

15

Toro 122-2825

CABLE-BATTERY, RD ASM

$

$

Currently unavailable

15:4

Toro 32180-109

BOLT-BATTERY CLAMP, 5/16-18 UNC

$

$

Currently unavailable

15:5

Toro 32180-108

NUT-CLAMP, BATTERY

$

$

Currently unavailable

16

Toro 122-2826

CABLE-BATTERY, RD ASM

$89.99

$

Usually ships in 0 days

0

17

Toro 120-4578

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

18

Toro 122-2177

HARNESS-WIRE, TX700

$1462.99

$

Usually ships in 0 days

0

19

Toro 99-3441

HARNESS-WIRE, FUSIBLE LINK

$157.99

$

Usually ships in 3-6 days

0

20

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Toro 99-7430

RELAY-MINI

$23.99

$

Usually ships in 3-6 days

0

22

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

23

Toro 140-2938-03

SWITCH BRACKET

$

$

Currently unavailable

24

Toro 3234-17

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

25

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

26

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro AUR52278

SWITCH-DISCONNECT, MASTER

$153.99

$

Usually ships in 3-6 days

0

28

Toro 93-1144

SPACER - FUEL TANK

$

$

Not available

29

Toro 3290-360

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

30

Toro 100-4852

WASHER-HARDENED

$5.49

$

Usually ships in 3-6 days

0

31

Toro 33115-020

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

32

Toro 122-2827

CABLE-BATTERY, BK ASM

$148.99

$

Usually ships in 0 days

0

33

Toro 131-8026

DECAL-BATTERY DISCONNECT

$18.99

$

Usually ships in 3-6 days

0

34

Toro 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

35

Toro 80-9330

AUDIO ALARM ASM

$139.99

$

Usually ships in 3-6 days

0

35:1

Toro 104-5107

NUT-PLASTIC, KNURLED

$5.99

$

Usually ships in 3-6 days

0

36

Toro 98-4799

SPACER

$7.49

$

In Stock, only 1 left!

0
