22351 (TX 700) - Toro Dingo Narrow Track Compact Utility Loader (SN: 400000000 - 412899999) Traction Hydraulic Assembly Parts Diagram

Dingo Narrow Track Compact Utility Loader

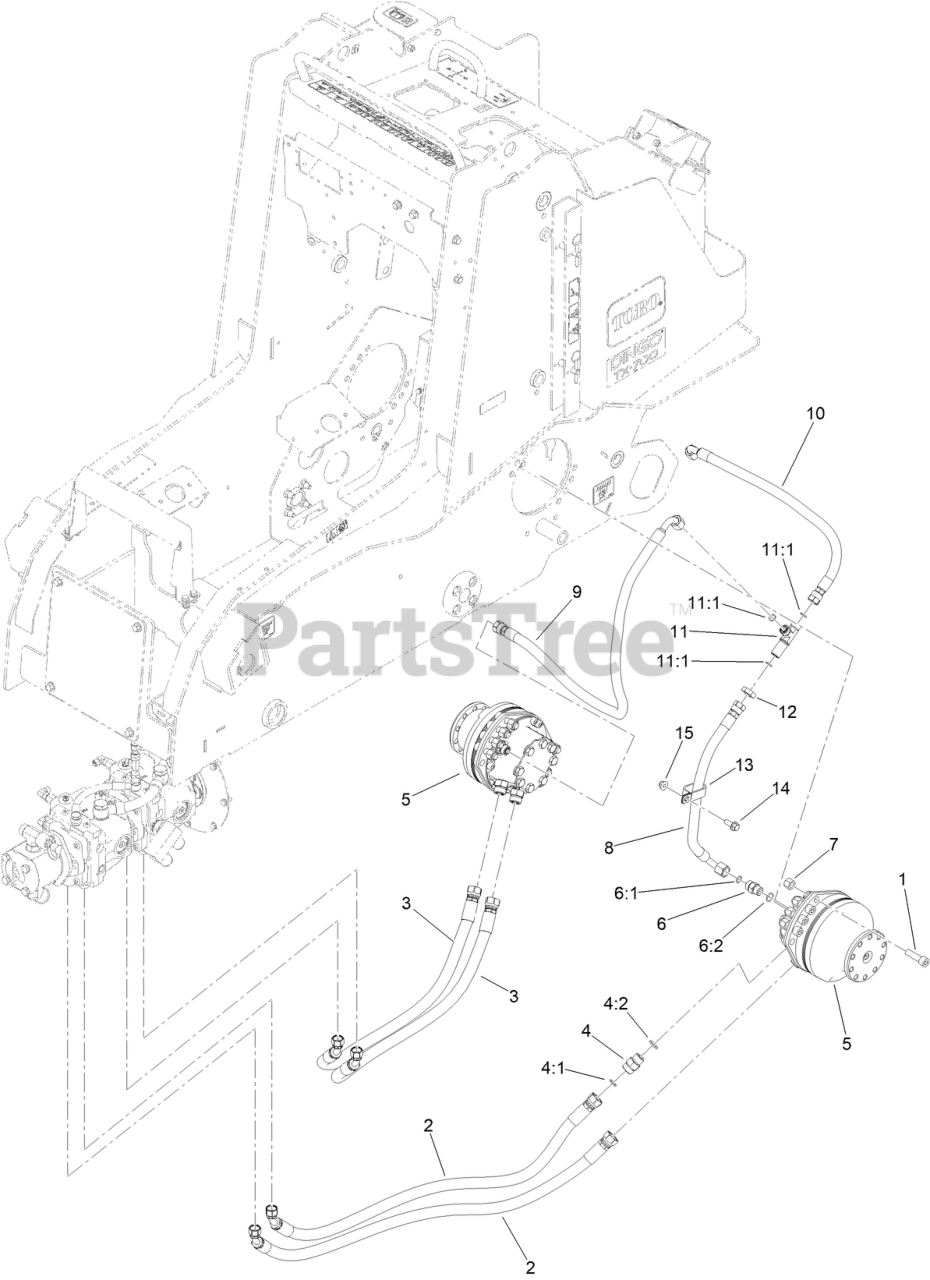

Traction Hydraulic Assembly Parts Diagram

  • Title

1

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

2

Toro 140-2874

HOSE ASM-HYD

$111.99

$

Usually ships in 3-6 days

0

3

Toro 140-2913

HOSE ASM-HYD

$101.99

$

Usually ships in 3-6 days

0

4

Toro 340-7

FITTING-STRAIGHT

$14.99

$

In Stock, Qty 13

0

4:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

4:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

5

Toro 145-4427

WHEELMOTOR ASM

$2277.99

$

Usually ships in 0 days

0

6

Toro 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

0

6:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

6:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

7

Toro 131-0661

SCREW-HSH

$11.99

$

Usually ships in 3-6 days

0

8

Toro 145-3310

HOSE ASM-HYD

$70.99

$

Usually ships in 0 days

0

9

Toro 145-3311

HOSE ASM-HYD

$83.99

$

Usually ships in 0 days

0

10

Toro 145-3312

HOSE ASM-HYD

$72.99

$

Usually ships in 0 days

0

11

Toro 340-121

FITTING-TEE

$154.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

12

Toro 340-127

NUT-BULKHEAD

$7.49

$

Usually ships in 3-6 days

0

13

Toro 2412-137

CLAMP-R, DOUBLE

$6.99

$

Usually ships in 3-6 days

0

14

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

15

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
