22342 HA (TX 427) - Toro Dingo Narrow Track Compact Utility Loader (SN: 400000000 - 411759999) Battery, Key Switch and Fuel Gauge Assembly Parts Diagram

Dingo Narrow Track Compact Utility Loader

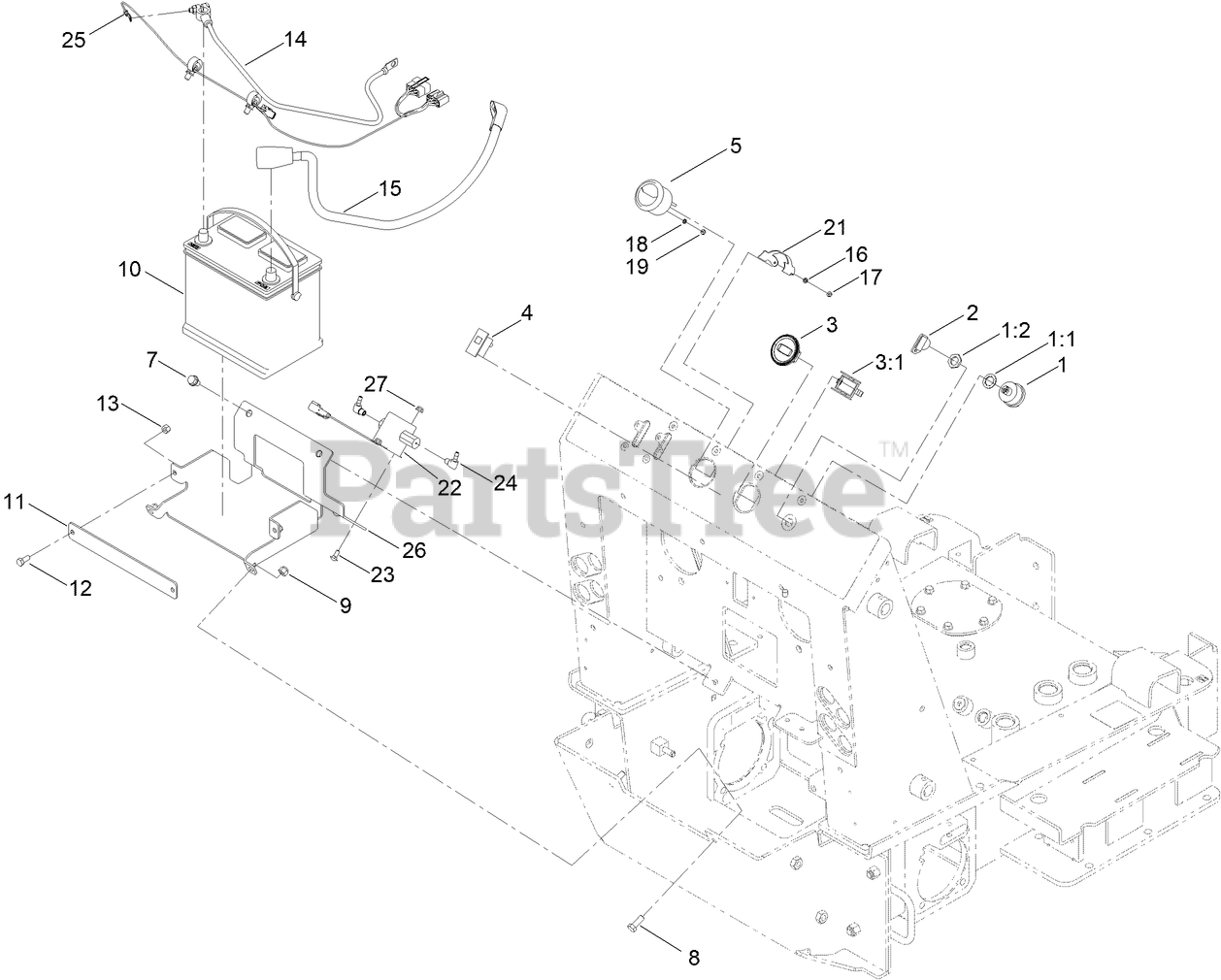

Battery, Key Switch and Fuel Gauge Assembly Parts Diagram

  • Title

1

Toro 88-9830

See Supercession: 104-2541
(Superseded to 104-2541)

$39.99

$

In Stock, Qty 6

0

1:1

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, only 2 left!

0

1:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

2

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

3

Toro 104-7427

INDUCTIVE HOURMETER ASM

$314.99

$

Usually ships in 3-6 days

0

3:1

Toro 104-4234

CLIP-MOUNTING

$7.49

$

Usually ships in 3-6 days

0

4

Toro 104-2839

LIGHT-TEMP, OIL

$100.99

$

In Stock, only 1 left!

0

5

Toro 66-2940

GAUGE-FUEL

$189.99

$

Usually ships in 3-6 days

0

7

Toro 32144-69

SCREW-HWHTF

$2.49

$

Usually ships in 3-6 days

0

8

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

10

Toro 104-9979

See Supercession: 132-8621
(Superseded to 132-8621)

$411.99

$

Usually ships in 3-6 days

0

11

Toro 105-0371-03

CLAMP-BATTERY

$19.99

$

Usually ships in 3-6 days

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 106-5708

CABLE-BATTERY, NEGATIVE

$87.99

$

Usually ships in 3-6 days

0

15

Toro 106-5707

CABLE-BATTERY, POSITIVE

$99.99

$

Usually ships in 3-6 days

0

16

Toro 114-5056

WASHER-LOCK,#8

$

$

Currently unavailable

17

Toro 114-5059

NUT-HEX,#8

$

$

Currently unavailable

18

Toro 114-5057

WASHER-LOCK,#6

$

$

Currently unavailable

19

Toro 114-5058

NUT-HEX,#6

$

$

Currently unavailable

21

Toro 100-6147

BRACKET-MOUNTING, GAUGE

$6.99

$

Usually ships in 3-6 days

0

22

Toro 144-7369

PUMP - FUEL: FACET W/ CONNECTOR

$1160.99

$

Usually ships in 0 days

0

23

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

24

Toro 116-1153

ELBOW-90 DEG, BARBED

$101.99

$

Usually ships in 3-6 days

0

25

Toro 122-2312

HARNESS-WIRE, HIGH ALTITUDE FUEL PUMP

$98.99

$

Usually ships in 3-6 days

0

26

Toro 144-0100-03

TRAY-MOUNTING, BATTERY

$

$

Currently unavailable

27

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
