2233A59 - Electrolux/AYP Walk-Behind Mower BRIGGS AND STRATTON ENGINE Parts Diagram

Walk-Behind Mower

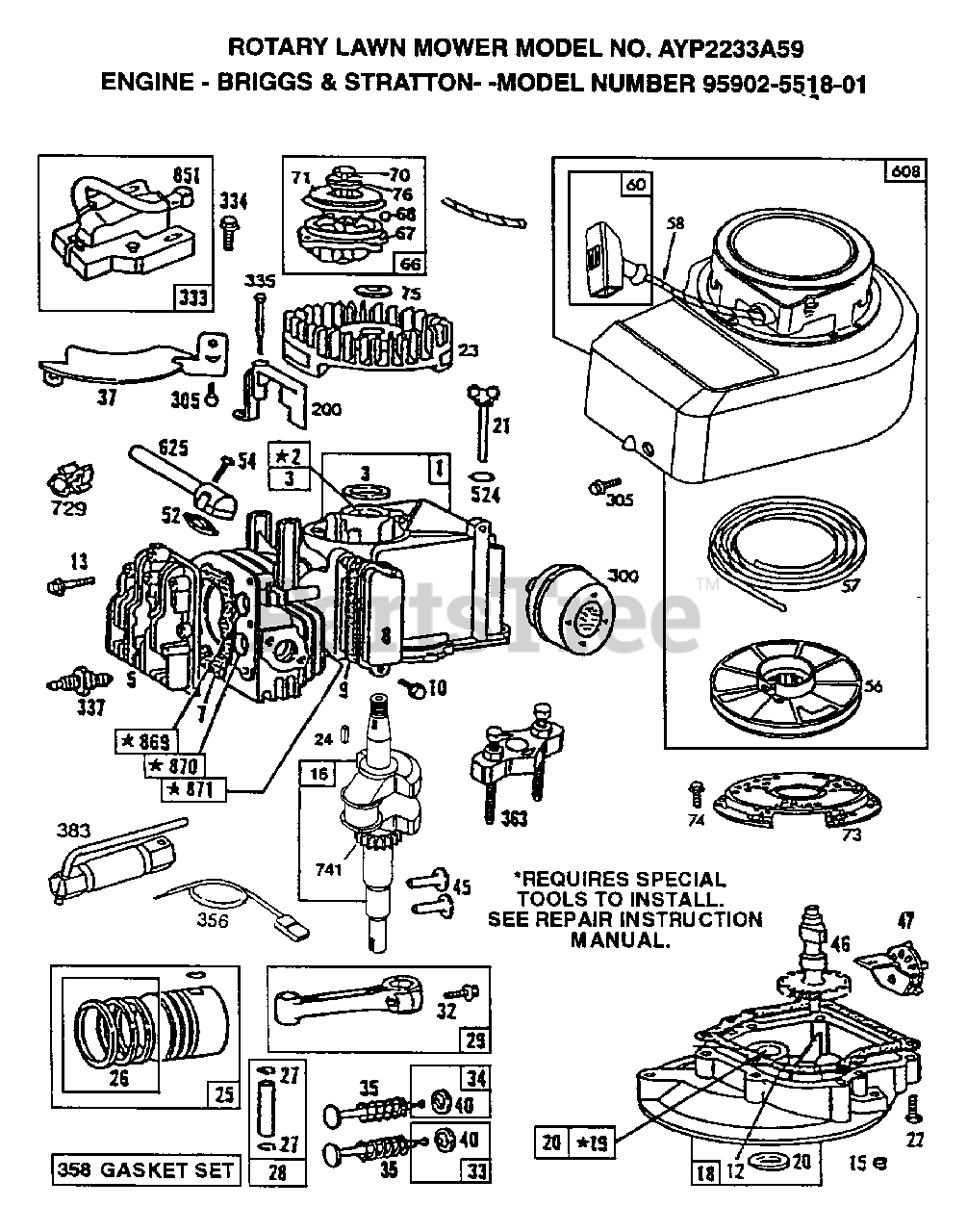

BRIGGS AND STRATTON ENGINE Parts Diagram

  • Title

1

Briggs & Stratton 399164

CYLINDER ASSEMBLY
(Superseded to 699653)

$153.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 293708

BUSHING, CYLINDER
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

SEAL, OIL
(Superseded to 299819S)

$5.49

$

In Stock, Qty 17

0

5

Briggs & Stratton 213942

HEAD, CYLINDER
(Superseded to 790169)

$

$

Not available

7

Briggs & Stratton 272536

GASKET, CYLINDER HEAD
(Superseded to 698717)

$5.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 495785

BREATHER, VALVE CHAMBER
(Superseded to 791781)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272602

GASKET, VALVE COVER
(Superseded to 695890)

$4.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 94621

SCREW, STEMS
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 231774

TUBE, BREATHER
(Superseded to 691245)

$8.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 270833

GASKET, CRANKCASE, STANDARD .015"
(Superseded to 692218)

$

$

Not available

Briggs & Stratton 270895

GASKET, CRANKCASE .005"

$9.99

$

In Stock, only 3 left!

0

Briggs & Stratton 270896

GASKET, CRANKCASE .009"

$5.99

$

In Stock, Qty 8

0

13

Briggs & Stratton 93111

SCREW, CYLINDER HEAD
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 94720

PLUG, OIL DRAIN
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 492086

CRANKSHAFT
(Superseded to 796211)

$155.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 230978

CRANKSHAFT GEAR PIN
(Superseded to 499047)

$4.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 395384

SUMP, ENGINE
(Superseded to 590569)

$104.99

$

In Stock, Qty 5

0

19

Briggs & Stratton 293709

BUSHING, ENGINE SUMP

$11.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 391483

SEAL, OIL
(Superseded to 391483S)

$5.99

$

In Stock, Qty 5

0

21

Briggs & Stratton 281081

PLUG, OIL FILLER
(Superseded to 691913)

$9.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 94607

SCREW, SEM, MOUNTING
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 495046

FLYWHEEL, MAGNETO ROD ASSY, CONNECTING
(Superseded to 799682)

$

$

Not available

24

Briggs & Stratton 222698

KEY, FLYWHEEL
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 298904

PISTON ASSEMBLY, STANDARD
(Superseded to 793214)

$

$

Not available

Briggs & Stratton 298905

PISTON ASSEMBLY .010" OVERSIZE

$50.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 298906

PISTON ASSEMBLY .020" OVERSIZE

$

$

Not available

Briggs & Stratton 298907

PISTON ASSEMBLY .030" OVERSIZE

$

$

Not available

26

Briggs & Stratton 298982

RING SET, PISTON, STANDARD

$48.99

$

In Stock, Qty 8

0

Briggs & Stratton 299742

RING SET, PISTON, CHROME, STANDARD
(Superseded to 298982)

$48.99

$

In Stock, Qty 8

0

Briggs & Stratton 298983

RING SET, PISTON .010" OVERSIZE

$

$

Not available

Briggs & Stratton 298984

RING SET, PISTON .020" OVERSIZE

$35.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 298985

RING SET, PISTON .030" OVERSIZE

$23.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

LOCK, PISTON PIN
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

PIN ASSY, PISTON, STD

$8.99

$

In Stock, only 3 left!

0

Briggs & Stratton 298908

PIN ASSEMBLY, PISTON .005" OVERSIZE

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 294201

ROD ASSEMBLY, CONNECTING
(Superseded to 699655)

$39.99

$

In Stock, only 3 left!

0

Briggs & Stratton 296079

ROD ASSEMBLY, CONNECTING .020" UNDERSIZE CRANKPIN

$18.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94699

SCREW
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 296676

VALVE, EXHAUST

$23.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 296677

VALVE, INTAKE

$24.99

$

In Stock, only 3 left!

0

35

Briggs & Stratton 260552

SPRING, INTAKE VALVE
(Superseded to 690520)

$5.49

$

In Stock, only 3 left!

0

37

Briggs & Stratton 223150

GUARD, FLYWHEEL
(Superseded to 691209)

$10.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 93312

RETAINER, VALVE SPRING
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 230173

TAPPET, VALVE
(Superseded to 691762)

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 491675

GEAR, CAM

$69.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 491688

OIL SLINGER GEAR & BRACKET
(Superseded to 698690)

$15.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 270345

GASKET, INTAKE ELBOW
(Superseded to 270345S)

$4.49

$

In Stock, Qty 6

0

54

Briggs & Stratton 93485

SCREW
(Superseded to 691111)

$3.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 281336

PULLEY STARTER
(Superseded to 281336S)

$14.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 490179

SPRING, REWIND STARTER

$

$

Not available

58

Briggs & Stratton 280406

ROPE, REWIND STARTER
(Superseded to 280406S)

$8.49

$

In Stock, Qty 5

0

60

Briggs & Stratton 393152

HANDLE, REWIND STARTER

$4.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 399671

CLUTCH ASSEMBLY, REWIND STARTER

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

HOUSING, STARTER CLUTCH

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

BALL, CLUTCH
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 298799

RATCHET, REWIND STARTER
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 394506

WASHER, CLUTCH RETAINER
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221661

SCREEN, REWIND STARTER
(Superseded to 691725)

$

$

Not available

74

Briggs & Stratton 93758

SCREW, SEMS
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 223047

WASHER, SPRING
(Superseded to 691736)

$5.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 68238

WASHER, RATCHET SEALING
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

96

Briggs & Stratton 224412

VALVE THROTTLE
(Superseded to 691190)

$7.49

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 494409

SEAT, NEEDLE VALVE

$

$

Not available

125

Briggs & Stratton 494407

CARBURETOR ASSEMBLY
(Superseded to 498809)

$52.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 281047

SHAFT AND LEVER, THROTTLE
(Superseded to 691931)

$19.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 271139

GASKET, AIR CLEANER
(Superseded to 271139S)

$3.99

$

In Stock, Qty 20+

0

180

Briggs & Stratton 494406

TANK ASSEMBLY, FUEL

$79.99

$

In Stock, only 4 left!

0

181

Briggs & Stratton 493982

CAP, FUEL TANK
(Superseded to 493982S)

$

$

Not available

187

Briggs & Stratton 496046

PIPE FUEL
(Superseded to 496046S)

$8.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 93440

SCREW, FUEL TANK MOUNTING
(Superseded to 692200)

$

$

Not available

191

Briggs & Stratton 272372

GASKET, TANK MOUNTING
(Superseded to 795083)

$4.49

$

In Stock, Qty 20+

0

200

Briggs & Stratton 281024

BLADE, GOVERNOR
(Superseded to 691912)

$13.99

$

In Stock, only 1 left!

0

201

Briggs & Stratton 262753

LINK, GOVERNOR
(Superseded to 690347)

$5.99

$

In Stock, Qty 10

0

209

Briggs & Stratton 262759

SPRING, GOVERNOR
(Superseded to 692211)

$5.99

$

In Stock, only 1 left!

0

228

Briggs & Stratton 93490

SCREW, HEX HEAD
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

258

Briggs & Stratton 94018

SCREW, AIR CLEANER
(Superseded to 690859)

$3.99

$

In Stock, Qty 8

0

300

Briggs & Stratton 394569

MUFFLER, EXHAUST
(Superseded to 394569S)

$10.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94153

SCREW, SEMS, BLOWER HOUSING MNT.
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

333

Briggs & Stratton 398593

ARMATURE, MAGNETO
(Superseded to 591420)

$53.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 94731

SCREW, SEMS
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

335

Briggs & Stratton 93435

SCREW, SEMS, ARMATURE AND GOVERNOR BLADE MOUNTING
(Superseded to 691107)

$3.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592

PLUG, SPARK
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 398808

WIRE, GROUND

$11.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 298989

GASKET SET
(Superseded to 590777)

$

$

Not available

363

Briggs & Stratton 19069

PULLEY, FLYWHEEL

$23.99

$

In Stock, only 1 left!

0

387

Briggs & Stratton 494408

PRIMER BULB
(Superseded to 694394)

$4.49

$

In Stock, Qty 12

0

390

Briggs & Stratton 262764

SPRING, DIAPHRAGM
(Superseded to 691839)

$5.99

$

In Stock, Qty 5

0

393

Briggs & Stratton 262734

SCREEN, CARBURETOR
(Superseded to 691837)

$7.49

$

In Stock, only 3 left!

0

394

Briggs & Stratton 281028

DIAPHRAGM, CARBURETOR
(Superseded to 795083)

$4.49

$

In Stock, Qty 20+

0

482

Briggs & Stratton 93621

SCREW, SEMS
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 271485

SEAL, FILLER TUBE
(Superseded to 691876)

$5.49

$

In Stock, Qty 11

0

529

Briggs & Stratton 67838

GROMMET, BREATHER TUBE
(Superseded to 692189)

$4.49

$

In Stock, Qty 16

0

534

Briggs & Stratton 93865

SCREW
(Superseded to 691417)

$5.99

$

In Stock, only 3 left!

0

535

Briggs & Stratton 272235

ELEMENT, AIR CLEANER
(Superseded to 272235S)

$5.99

$

In Stock, Qty 6

0

536

Briggs & Stratton 493492

CLEANER ASSEMBLY, AIR
(Superseded to 698472)

$

$

Not available

608

Briggs & Stratton 496325

STARTER ASSY REWIND
(Superseded to 499916)

$229.99

$

Usually ships in 2-12 days

0

617

Briggs & Stratton 270344

SEAL, FUEL INTAKE TUBE
(Superseded to 270344S)

$3.49

$

In Stock, Qty 20+

0

620

Briggs & Stratton 495486

PLATE, CARBURETOR CONTROL
(Superseded to 691446)

$39.99

$

In Stock, only 4 left!

0

621

Briggs & Stratton 396847

SWITCH, STOP
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

625

Briggs & Stratton 298775

TUBE, FUEL INTAKE
(Superseded to 693446)

$14.99

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 280566

WASHER THROTTLE SHAFT
(Superseded to 691321)

$4.99

$

Usually ships in 2-12 days

0

643

Briggs & Stratton 280972

CUP, AIR CLEANER
(Superseded to 691911)

$9.99

$

Usually ships in 2-12 days

0

670

Briggs & Stratton 94038

SPACER, FUEL TANK
(Superseded to 691631)

$5.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 280470

CLIP, WIRE
(Superseded to 690586)

$3.99

$

In Stock, only 3 left!

0

741

Briggs & Stratton 261533

GEAR, TIMING
(Superseded to 691805)

$15.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

TERMINAL, IGNITION CABLE
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

869

Briggs & Stratton 211172

SEAT, INTAKE VALVE, STANDARD
(Superseded to 691701)

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 211291

SEAT, EXHAUST VALVE, STANDARD
(Superseded to 691702)

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 231348

GUIDE, EXHAUST VALVE

$31.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 63709

GUIDE, INTAKE VALVE

$14.99

$

Usually ships in 2-12 days

0

922

Briggs & Stratton 261647

SPRING, BAND BRAKE
(Superseded to 691809)

$8.49

$

Usually ships in 2-12 days

0

923

Briggs & Stratton 394867

BRAKE ASSEMBLY, BAND

$39.99

$

Usually ships in 2-12 days

0

933

Briggs & Stratton 223448

PIVOT, BAND BRAKE
(Superseded to 690428)

$5.99

$

In Stock, only 1 left!

0

934

Briggs & Stratton 94037

SCREW, BAND BRAKE PIVOT
(Superseded to 690324)

$3.49

$

Usually ships in 2-12 days

0

941

Briggs & Stratton 280395

COVER, LINKAGE

$

$

Not available

942

Briggs & Stratton 493248

BRACKET ASSEMBLY, LEVER

$10.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 496757

LABEL KIT

$46.99

$

Usually ships in 2-12 days

0
