22337 CP (320-D) - Toro Dingo Compact Utility Loader (SN: 405700000 - 410399999) Four Spool Valve Assembly No. 130-7589 Parts Diagram

Dingo Compact Utility Loader

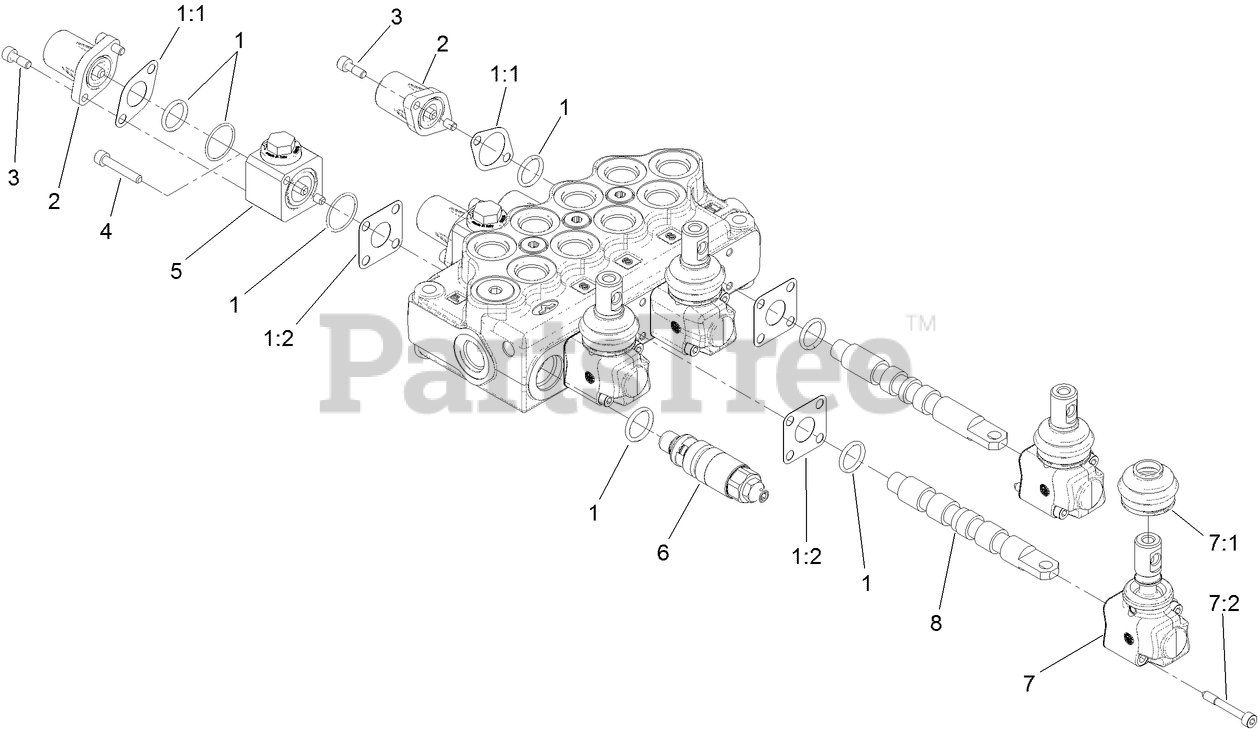

Four Spool Valve Assembly No. 130-7589 Parts Diagram

  • Title

1

Toro 99-4390

SEAL KIT

$146.99

$

Usually ships in 3-6 days

0

1:1

Toro 99-3074

GASKET

$19.99

$

Usually ships in 3-6 days

0

1:2

Toro 99-3075

GASKET

$20.99

$

Usually ships in 3-6 days

0

2

Toro 100-8801

HIGH FORCE SPRING KIT

$199.99

$

Usually ships in 3-6 days

0

2

Toro 100-8800

STANDARD SPRING KIT

$87.99

$

Usually ships in 3-6 days

0

3

Toro 100-8802

SCREW-CAP, END

$15.99

$

Usually ships in 3-6 days

0

4

Toro 100-8803

SCREW

$15.99

$

Usually ships in 3-6 days

0

5

Toro 144-7359

BLOCK-SWITCH, MOUNT

$

$

Currently unavailable

6

Toro 100-8805

VALVE-RELIEF

$524.99

$

Usually ships in 3-6 days

0

7

Toro 100-8807

OPERATOR ASM

$201.99

$

Usually ships in 3-6 days

0

7:1

Toro 100-8829

BOOT

$44.99

$

Usually ships in 3-6 days

0

7:2

Toro 100-8806

SCREW

$15.99

$

Usually ships in 3-6 days

0

8

Toro 130-2839

VALVE-SPOOL

$291.99

$

Usually ships in 3-6 days

0
