22337 CP (320-D) - Toro Dingo Compact Utility Loader (SN: 405700000 - 410399999) Alternator Assembly No. 131-0561 Parts Diagram

Dingo Compact Utility Loader

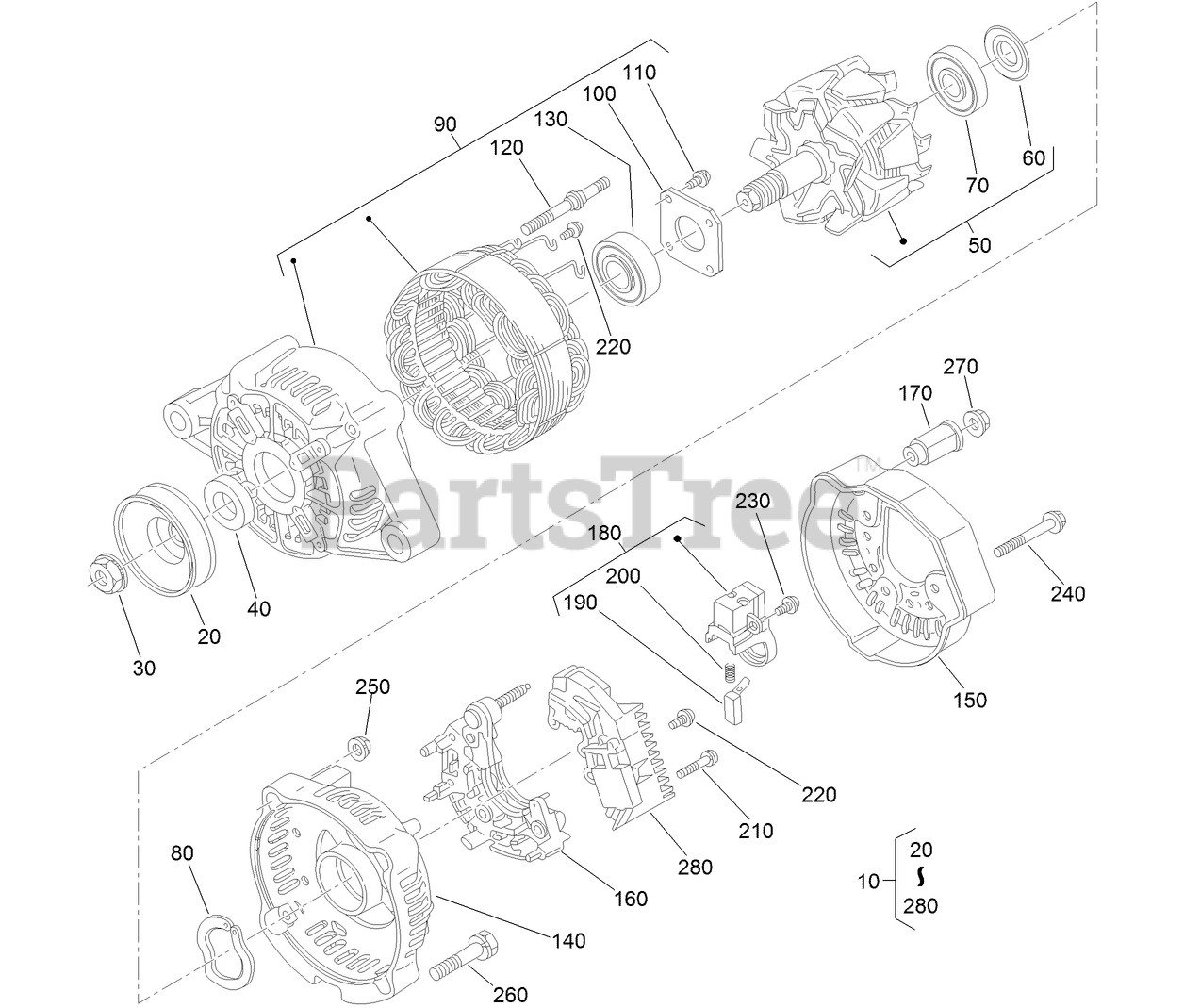

Alternator Assembly No. 131-0561 Parts Diagram

  • Title
10

Toro 131-0561

ALTERNATOR

$1429.99

$

In Stock, only 1 left!

0

20

Toro 98-9453

PULLEY-DYNAMO

$182.99

$

Usually ships in 3-6 days

0

30

$11.99

$

Usually ships in 3-6 days

0

40

Toro 98-7709

COLLAR

$10.99

$

Usually ships in 3-6 days

0

50

Toro 107-0136

ROTOR ASM

$323.99

$

Usually ships in 3-6 days

0

60

Toro 98-7711

COVER-BEARING

$8.99

$

Usually ships in 3-6 days

0

70

Toro 107-0138

BEARING-BALL

$71.99

$

Usually ships in 3-6 days

0

80

Toro 98-7713

WASHER-THRUST

$5.49

$

Usually ships in 3-6 days

0

90

Toro 98-9475

FRAME, DRIVE END

$360.99

$

Usually ships in 3-6 days

0

100

Toro 98-7715

PLATE-RETAINER

$11.99

$

Usually ships in 3-6 days

0

110

Toro 98-7716

SCREW-HEAD, ROUND

$1.49

$

Usually ships in 3-6 days

0

120

Toro 98-7717

BOLT-THROUGH

$14.99

$

Usually ships in 3-6 days

0

130

Toro 131-6560

BEARING-BALL
(Superseded to 133-2811)

$68.99

$

Usually ships in 3-6 days

0

140

Toro 107-9087

FRAME-END

$269.99

$

Usually ships in 3-6 days

0

150

Toro 107-0140

COVER-END

$42.99

$

Usually ships in 3-6 days

0

160

Toro 98-7721

RECTIFIER ASM

$715.99

$

Usually ships in 3-6 days

0

170

Toro 98-7722

BUSHING-INSULATION

$41.99

$

Usually ships in 3-6 days

0

180

Toro 107-0141

BRUSH HOLDER ASM

$141.99

$

Usually ships in 3-6 days

0

190

Toro 98-7724

BRUSH

$18.99

$

Usually ships in 3-6 days

0

200

Toro 98-7725

SPRING-BRUSH

$5.49

$

Usually ships in 3-6 days

0

210

Toro 98-7726

SCREW-HEAD, ROUND

$0.99

$

Usually ships in 3-6 days

0

220

Toro 98-7727

SCREW-HEAD, ROUND

$1.49

$

Usually ships in 3-6 days

0

230

Toro 98-7728

SCREW-HEAD, ROUND

$0.99

$

Usually ships in 3-6 days

0

240

$3.49

$

Usually ships in 3-6 days

0

250

$1.99

$

Usually ships in 3-6 days

0

260

$5.99

$

Usually ships in 3-6 days

0

270

$2.49

$

Usually ships in 3-6 days

0

280

Toro 110-3799

REGULATOR ASM

$529.99

$

Usually ships in 3-6 days

0
