22337 CP (320-D) - Toro Dingo Compact Utility Loader (SN: 315000001 - 315999999) (2015) REAR COVER AND THIGH SUPPORT ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

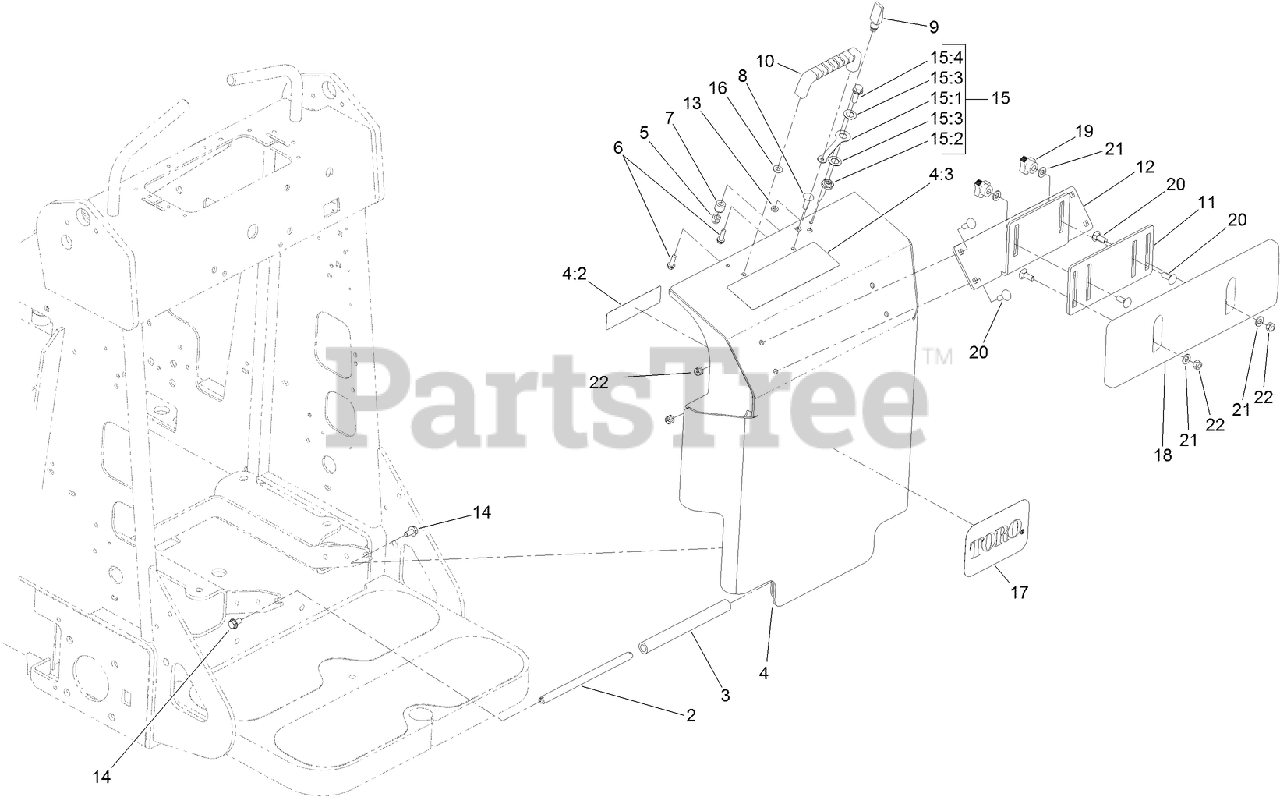

REAR COVER AND THIGH SUPPORT ASSEMBLY Parts Diagram

  • Title
2

Toro 99-3083

BAR-HINGE

$106.99

$

Usually ships in 3-6 days

0

3

Toro 99-3085

HOSE-HINGE

$20.99

$

Usually ships in 3-6 days

0

4

Toro 114-1755

COVER ASM

$767.99

$

Usually ships in 3-6 days

0

4:2

Toro 93-7814

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

4:3

Toro 100-1701

DECAL-DANGER

$39.99

$

Usually ships in 3-6 days

0

5

Toro 32111-8

NUT-LOCK, CAP

$3.99

$

Usually ships in 3-6 days

0

6

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

7

Toro 99-3035

SPACER-GUIDE

$70.99

$

Usually ships in 3-6 days

0

8

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

9

Toro 74-5950

LATCH-SWELL

$23.99

$

In Stock, Qty 10

0

10

Toro 65-5100

HANDLE-DOOR

$9.99

$

In Stock, only 2 left!

0

11

Toro 105-0337-03

PLATE-ADJUSTING

$45.99

$

Usually ships in 3-6 days

0

12

Toro 105-0331-03

BRACKET-SUPPORT, THIGH

$131.99

$

Usually ships in 3-6 days

0

13

Toro 99-3058

WASHER

$3.49

$

In Stock, Qty 20+

0

14

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

15

Toro 117-1762

LANYARD ASM

$40.99

$

Usually ships in 3-6 days

0

15:1

Toro 117-8339

LANYARD-3 INCH

$5.49

$

Usually ships in 3-6 days

0

15:2

Toro 117-1764

NUT-SHOULDER

$20.99

$

Usually ships in 3-6 days

0

15:3

Toro 98-1629

WASHER

$1.49

$

Usually ships in 3-6 days

0

15:4

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

16

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 93-7340

DECAL

$55.99

$

Usually ships in 3-6 days

0

18

Toro 105-0333

SUPPORT-THIGH

$109.99

$

In Stock, only 3 left!

0

19

Toro 104-6156

Knob-Adjustment

$33.99

$

Usually ships in 3-6 days

0

20

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 16

0

21

Toro 3256-70

WASHER-FLAT

$1.49

$

In Stock, Qty 8

0

22

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
