22337 CP (320-D) - Toro Dingo Compact Utility Loader (SN: 313000001 - 313999999) (2013) FUEL CAMSHAFT AND GOVERNOR SHAFT ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

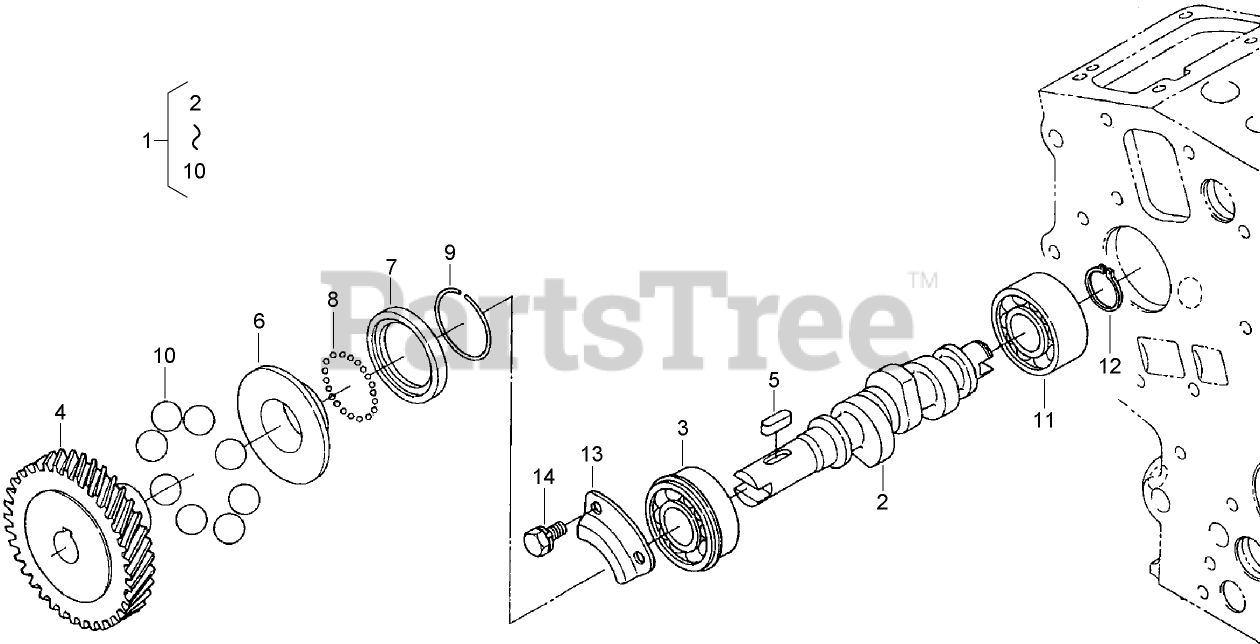

FUEL CAMSHAFT AND GOVERNOR SHAFT ASSEMBLY Parts Diagram

  • Title

1

Toro 112-2817

CAMSHAFT ASM
(Superseded to 112-8335)

$1000.99

$

Usually ships in 3-6 days

0

2

Toro 112-2818

CAMSHAFT-FUEL
(Superseded to 110-3756)

$418.99

$

Usually ships in 3-6 days

0

3

Toro 100-1795

BEARING-BALL

$9.99

$

Usually ships in 3-6 days

0

4

Toro 100-2006

GEAR-PUMP, INJECTION

$89.99

$

Usually ships in 3-6 days

0

5

Toro 100-1752

KEY-FEATHER

$4.49

$

Usually ships in 3-6 days

0

6

Toro 100-1903

SLEEVE-GOVERNOR

$12.99

$

Usually ships in 3-6 days

0

7

Toro 100-1904

CASE-BALL, GOVERNOR

$35.99

$

Usually ships in 3-6 days

0

8

Toro 100-1790

BALL

$2.99

$

Usually ships in 3-6 days

0

9

Toro 100-1843

CIRC-CLIP

$2.99

$

Usually ships in 3-6 days

0

10

Toro 100-1793

BALL

$2.99

$

Usually ships in 3-6 days

0

11

Toro 110-3757

BEARING-BALL

$110.99

$

Usually ships in 3-6 days

0

12

Toro 100-1784

CIRC-CLIP, EXTERNAL

$2.49

$

Usually ships in 3-6 days

0

13

Toro 100-1888

STOPPER-FUEL, CAMSHAFT

$3.99

$

Usually ships in 3-6 days

0

14

Toro 98-9350

BOLT

$1.49

$

Usually ships in 3-6 days

0
