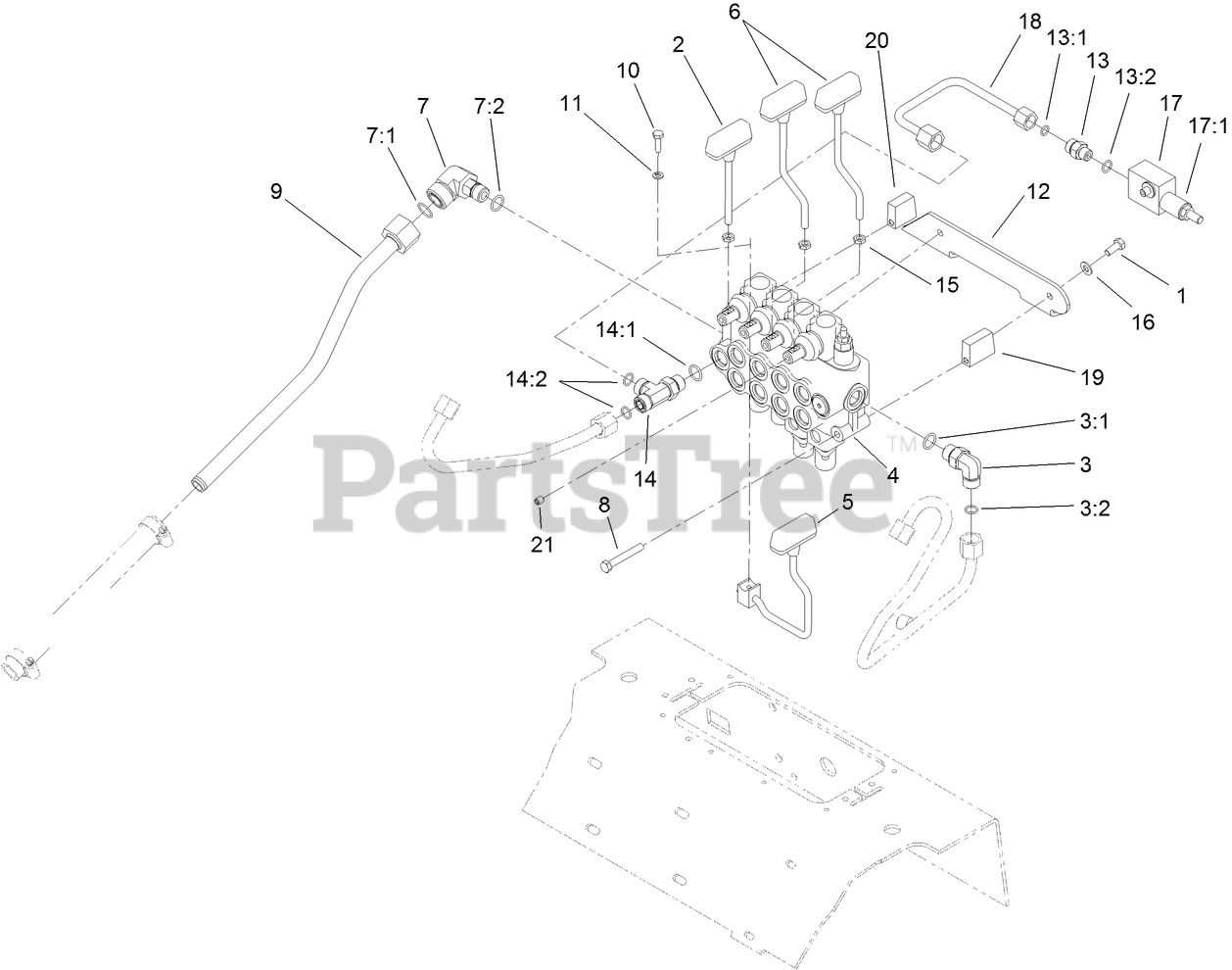

22337 CP (320-D) - Toro Dingo Compact Utility Loader (SN: 313000001 - 313999999) (2013) 4-SPOOL VALVE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

4-SPOOL VALVE ASSEMBLY Parts Diagram

  • Title
1

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 105-7881

LEVER-CYLINDER

$79.99

$

Usually ships in 3-6 days

0

3

Toro 340-98

FITTING-ELBOW-90 DEG

$32.99

$

In Stock, only 2 left!

0

3:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

3:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

4

Toro 105-8377

HYD FOUR SPOOL VALVE ASM

$5207.99

$

Usually ships in 3-6 days

0

5

Toro 106-8165

LEVER-CONTROL

$182.99

$

Usually ships in 3-6 days

0

6

Toro 104-5733

LEVER-DRIVE

$101.99

$

Usually ships in 3-6 days

0

7

Toro 92-5696

FITTING-HYD, 90 DEG

$151.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

7:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

8

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

9

Toro 106-8177

TUBE-TANK, HYD

$119.99

$

Usually ships in 3-6 days

0

10

Toro 3274-56

SCREW-HSH

$6.99

$

Usually ships in 3-6 days

0

11

Toro 108-4705

SPACER

$46.99

$

Usually ships in 3-6 days

0

12

Toro 104-4222-03

BRACKET-COVER, MOUNT

$276.99

$

Usually ships in 3-6 days

0

13

Toro 340-2

FITTING-STRAIGHT

$11.99

$

In Stock, only 2 left!

0

13:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 15

0

13:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

14

Toro 340-109

FITTING-TEE

$68.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

14:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

15

Toro 42-9580

NUT-HEX
(Superseded to 33014-00)

$0.99

$

In Stock, Qty 20+

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 105-7882

RELIEF VALVE ASM

$565.99

$

Usually ships in 3-6 days

0

17:1

Toro 105-8358

CARTRIDGE-VALVE, RELIEF

$256.99

$

Usually ships in 3-6 days

0

17:2

Toro 105-8357

SEAL KIT

Note: Not illustrated

$101.99

$

Usually ships in 3-6 days

0

18

Toro 105-7866

LINE-HYD

$100.99

$

Usually ships in 3-6 days

0

19

Toro 105-8354

SPACER-LOWER

$95.99

$

Usually ships in 3-6 days

0

20

Toro 105-7870

SPACER-UPPER

$68.99

$

Usually ships in 3-6 days

0

21

Toro 105-4068

SCREW-SET, HSH

$14.99

$

Usually ships in 3-6 days

0
